WHARFEDALE Elysian 3R Floorstanding Loudspeakers
Pairs well with

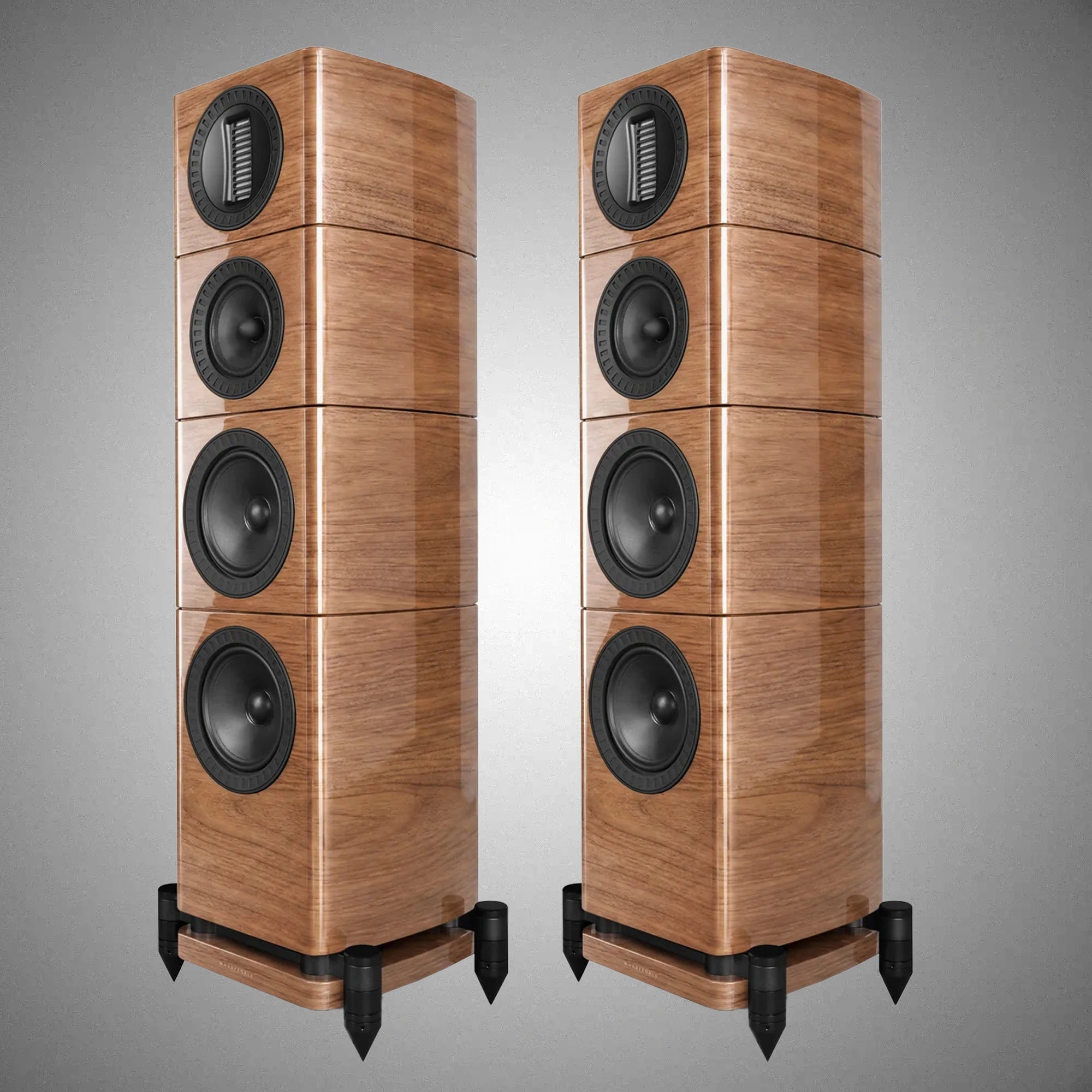

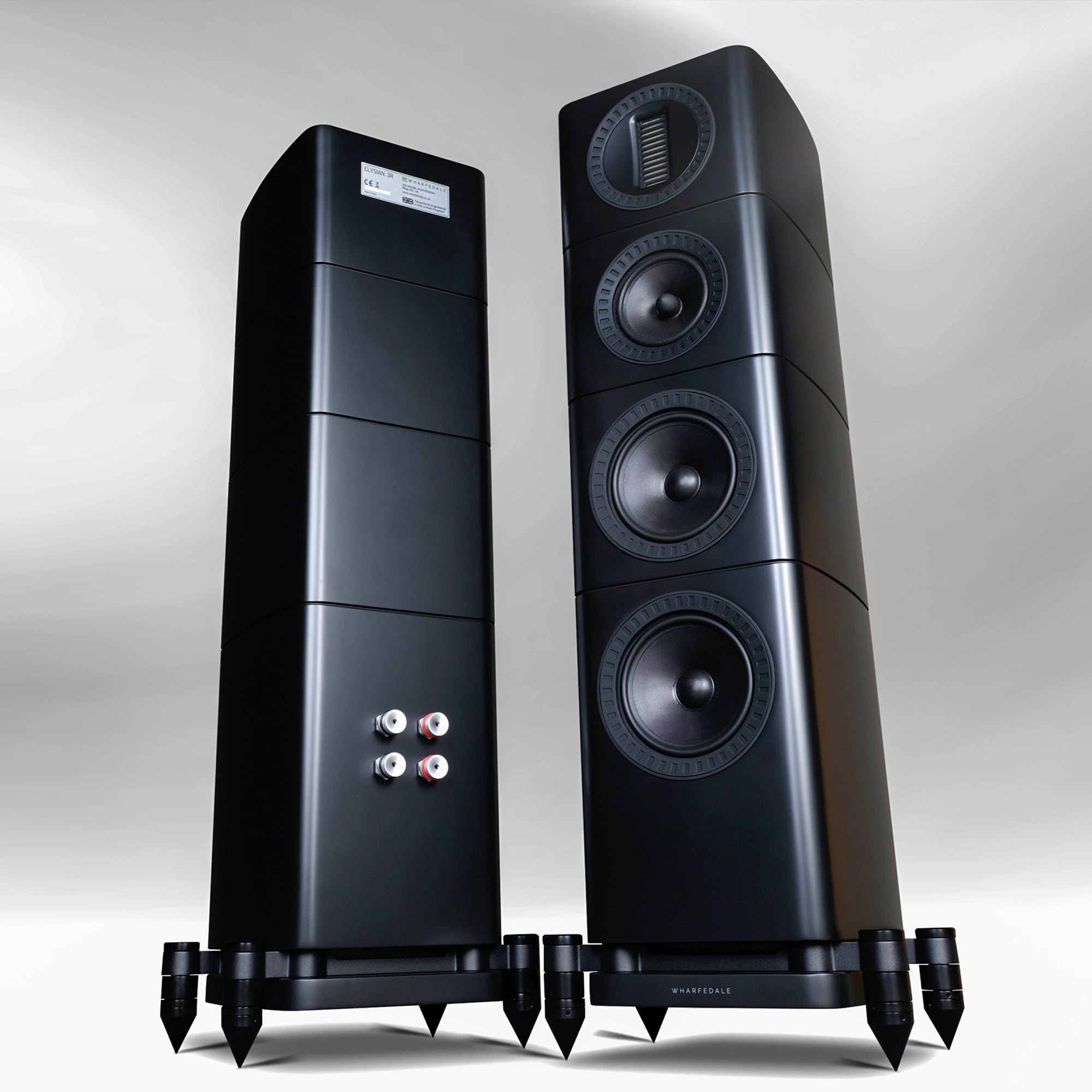

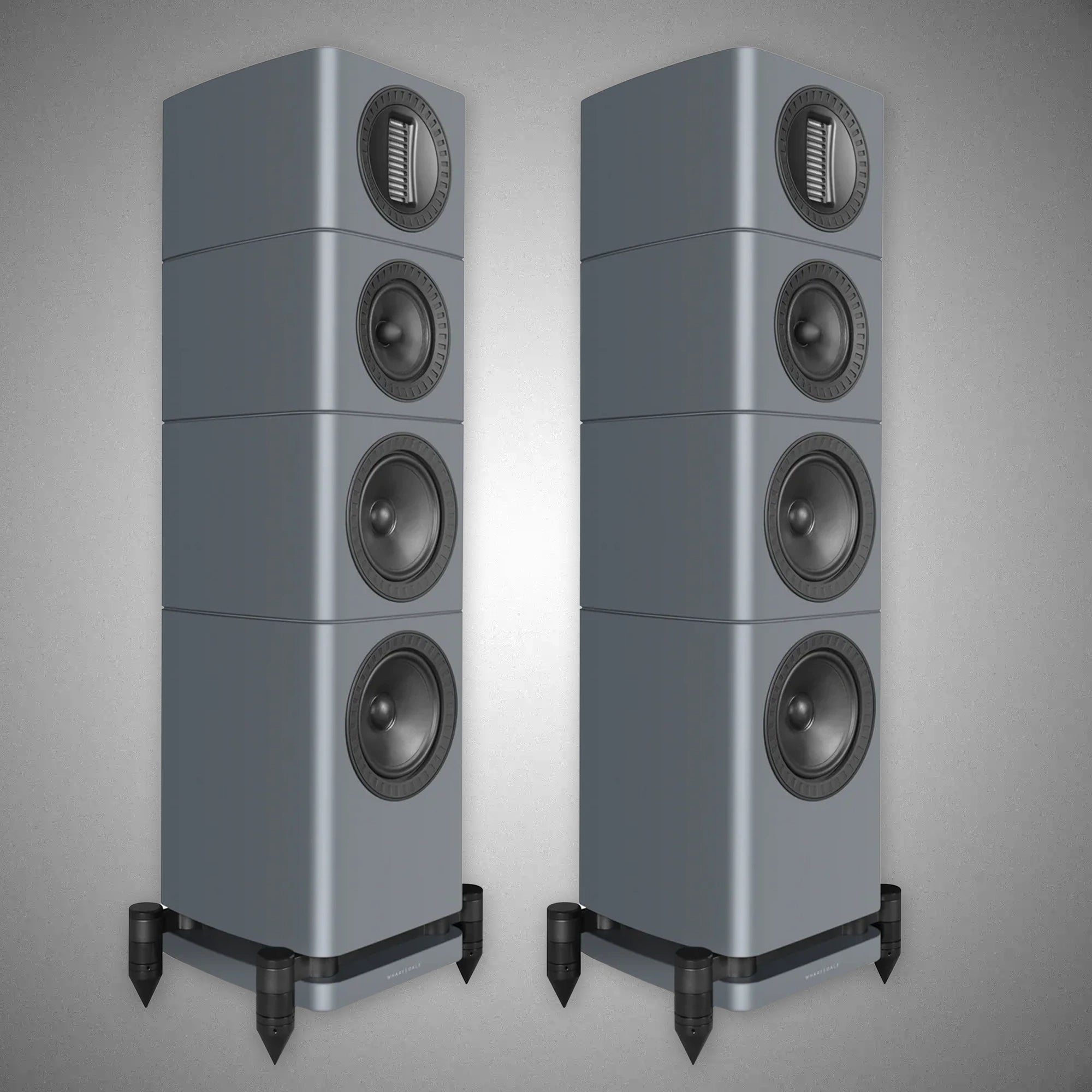

The ELYSIAN 3R is the compact floorstanding loudspeaker in the ELYSIAN R Series, designed to deliver the authority, openness and dynamic expression of a high-end three-way system in a more elegant, room-friendly form.
Wharfedale Elysian 3R Floorstanding Loudspeakers

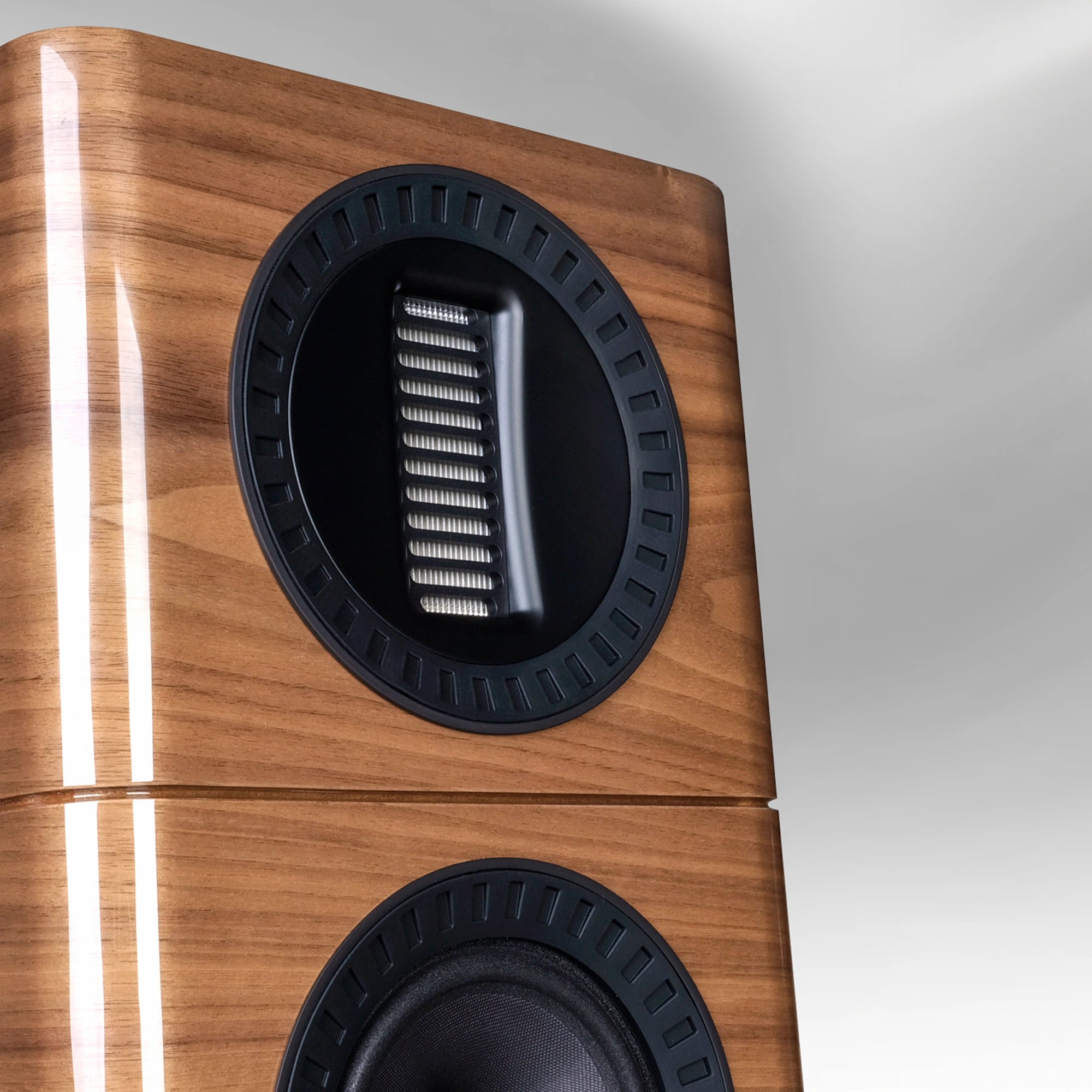

Its slim cabinet houses dual 7” coated glass fibre matrix bass drivers, a dedicated 6” coated glass fibre matrix midrange driver and the further-developed 27 x 90mm ELYSIAN R AMT treble unit. The result is a loudspeaker that combines controlled bass, natural vocal presence and expansive high-frequency detail with the understated luxury of the updated ELYSIAN R design language.
ELYSIAN 3R is engineered for listeners who want the immersive scale of a floorstanding loudspeaker without the footprint of the flagship model. It uses a true three-way driver array, allowing the bass, midrange and treble sections to operate with clarity and control.
As part of the ELYSIAN R evolution, the 3R benefits from refined crossover modelling, improved driver consistency and further optimised cabinet behaviour. Its dual bass drivers provide low-frequency weight and dynamic ability, while the dedicated midrange driver preserves the natural expression of voices and instruments. The AMT treble unit gives the speaker its open, fast and effortlessly detailed character.
The 3R is compact by ELYSIAN standards, but unmistakably high-end in performance, finish and presence.
The "R" Crossover
The ELYSIAN R crossover features premium components such as high-silicon-iron-cored coils for bass, air-core coils for midrange and treble, Super Audiophile polypropylene capacitors, and low-inductance resistors. Innovative direct-path PCBs are designed to maintain signal clarity.
SPECIFICATIONS
Model: Elysian 3R
General Description: 3-way floorstanding loudspeaker
Bass Driver: 2 x 7" (180mm) Coated Fibreglass Matrix Cone
Midrange Driver: 6" (150mm) Coated Fibreglass Matrix Cone
Treble Driver: 27 x 90mm AMT
Sensitivity (2.83v @ 1M): 89dB
Amplifier Power: 30W - 20W
Peak SPL: 108dB
Nominal Impedance: 4Ω (Compatible 8Ω)
Minimum Impedance: 3.2Ω
Frequency Response (+/- 3dB): 44Hz - 22kHz
Bass Extension (-6dB): 35Hz
Crossover Frequency: 375Hz & 2.9kHz
Height(on plinth): 1050mm
Width: 263mm
Depth (with terminals): 285mm + 30mm
Carton Size: 1155mm x 415mm x 480mm
Speaker Weight: 28.45kg (each)
Gross Weight: 35.37kg (per carton)
DOWNLOAD - Wharfedale ELYSIAN R Series Manual
