Volumio - Integro - Network Amplifier
The Integrated Network Amplifier with direct-digital dual mono Class-D amplifier technology, enclosed in a stylish compact design.
The Best Sound Directly To Your Speakers
INTEGRO is ready to plug & play device, just connect your speakers to it and you have a complete HiFi system to enjoy your music to the fullest.
No need for extra equipment, all of the components necessary come in a compact design, giving you the possibility to put the Integro in any place you want.
A Look To Be Seen And Felt
Every aspect of the Integro was carefully designed with the collaboration of the Red Dot Award winner Design Narratives.

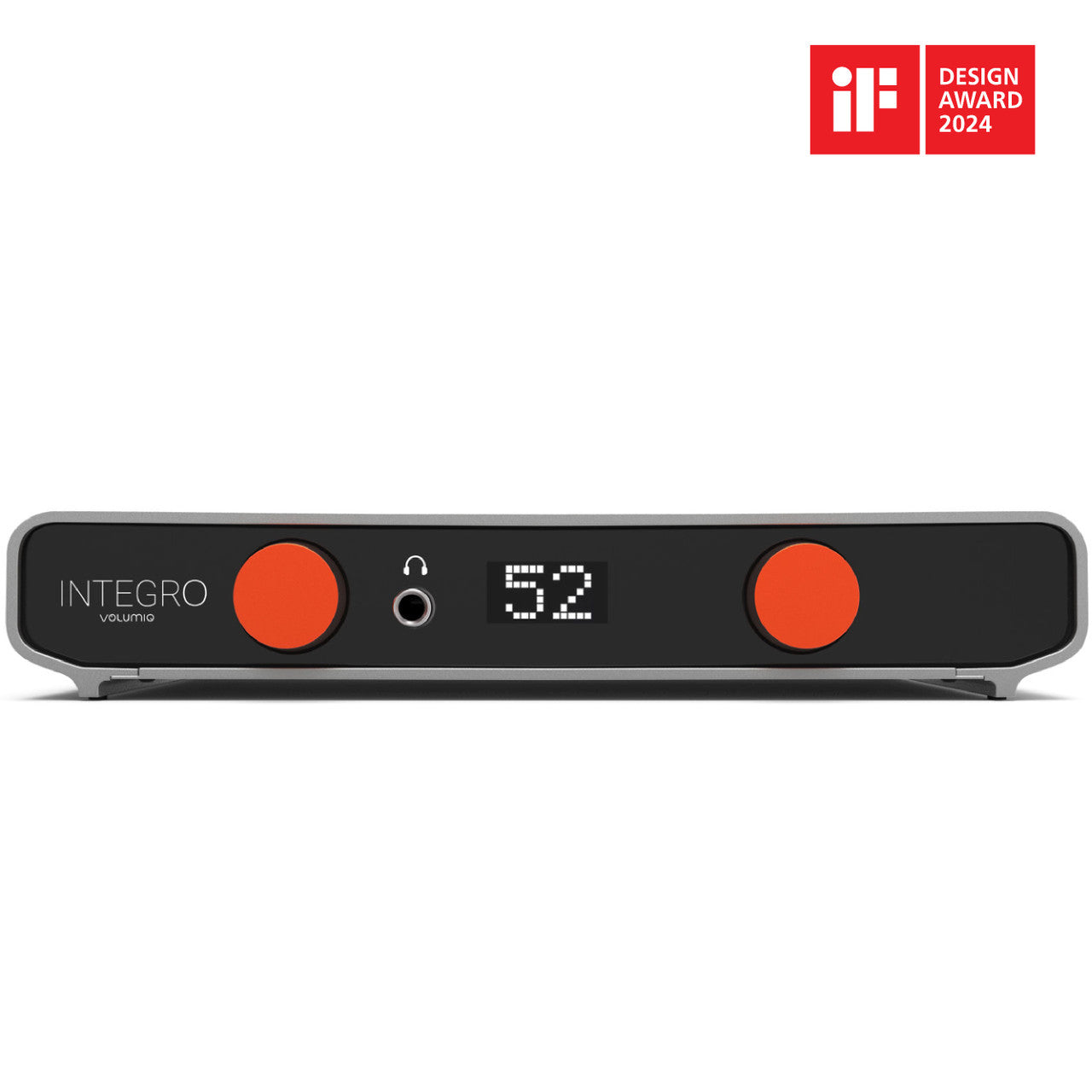

In addition to the compact design, the electronics that give Integro its musicality are covered in a chassis of anti-magnetic aluminium, with two orange knobs to control volume and inputs options, accompanied by an OLED display.
Immersive Sound: INTEGRO Plugged In
INTEGRO has one of the world’s best-sounding headphone amplifiers you can use for your intimate listening and merry them to a specially tuned dual-mono Class-D amplifier design, powered by MA12070P from Infineon.
From whichever source you are playing your music, Integro brings out the most wonderful details to life.
Made in Florence
Audio
Audio playback - Bit-Perfect up to 192kHz/24 bit.
Analogue Input - 1x Stereo RCA
Digital Inputs - SPDIF Coaxial and Optical
Subwoofer Output - 1 x RCA
Headphone Output - High quality (jack 6.3mm)
Video output - HDMI
Speaker Amplifier
Sample frequency up to 192kHz/24bit resolution
Output Power 2x50W RMS with 8 Ohm load, 2x70W RMS with 4 Ohm load.
Powered by two MA12070P amplifiers from Infineon, in dual-mono configuration (PBTL Mode).
Output stage made with WIMA polypropylene capacitors and high saturation-current inductors.
Headphone amplifier
High-quality 6.3mm jack connector, with headphone insertion detection.
Sample frequency up to 192kHz/24bit resolution
Output Power 2x300mW RMS with 64Ohm load, 2x480mW with 32Ohm load.
Powered by PCM5122 DAC from Texas Instruments, together with a TPA6120A2 headphone amplifier from Texas Instruments.
Subwoofer output - Mono RCA connector
Sample frequency up to: 192kHz/24bit resolution
Signal level 2Vrms
Powered by PCM5121 DAC from Texas Instruments, together with an OPAMP-based summing circuit for the mono down-mix.
Analog input
Analog input - Stereo RCA connector
Sample frequency up to: 192kHz/24bit resolution
Powered by PCM1861 ADC from Texas Instruments
Digital input
Digital input - Coaxial RCA connector and optical TOSLINK connector
Sample frequency up to: 192kHz/24bit resolution
Powered by WM8805 from Wolfson Microelectronic (acquired by Cirrus Logic).
