Vertere PHONO-1 MKII Phono Preamplifier

The New Vertere PHONO-1 MKII features improved performance, a new gold-plated L-shaped Printed Circuit Board and significantly enhanced accessibility for the customisation DIP switches.

Vertere PHONO-1 MKII Phono Preamplifier

The sound quality improvements are subtle but significant. The PHONO-1 MKII already was better than the original due to the more optimal choice of components. The L takes this further with non-trivial PCB layout improvements. Moving the linear power supply to the main PCB allowed a significant track and ground plane layout optimisation. The new design ensures signal tracks are of equal length, impedances lowered, and track widths adjusted to direct current flow.

The PHONO-1 MKII L is user-configurable for most Moving Magnet and Moving Coil Cartridges available. The DIP switches on the bottom of the unit facilitate the choice of 15 input impedances and 9 options of capacitance together with 10 choices of gain. For example, it allows a somewhat peaky (with a rising HF response) Moving Coil cartridge to be tamed by adding capacitance rather than by reducing input impedance. Lowering the input impedance tends to 'slug' the sound, reducing musical performance and drama along with lowering the brightness. Adding capacitance while keeping the input impedance higher allows the full performance to shine.

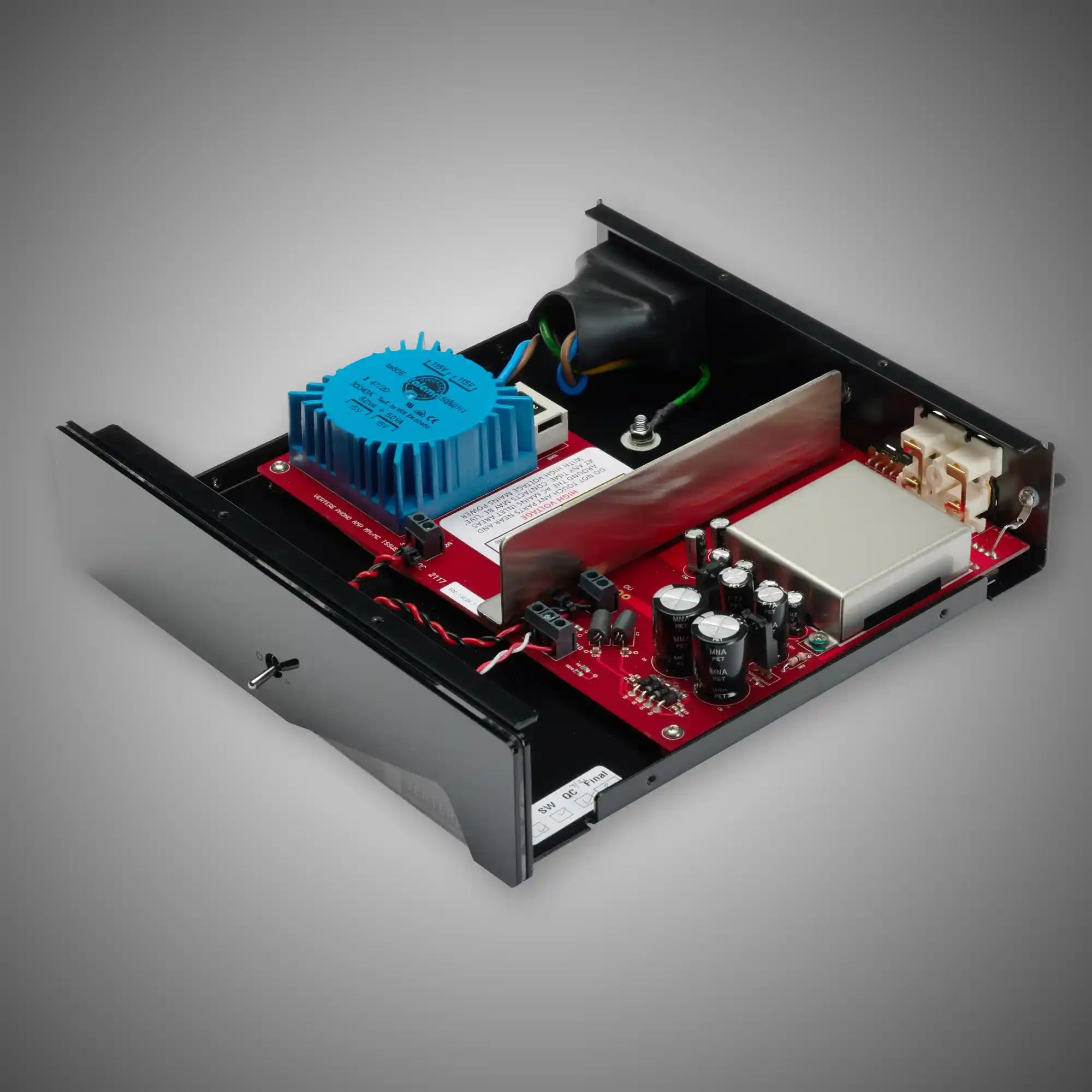

Vertere’s PHONO-1 utilises stainless steel shields to further enhance isolation of the RIAA and preamplifier circuits. All power supply components and circuits are outside of the main cover shield and away from any signal path.

PHONO-1 MkII has two switch banks, now easily accessible from the underside of the unit, that allow 15 resistance and 9 capacitance settings for left and right channels.

Perfect load matching is crucial to maximising performance, for both Moving Coil and Moving Magnet cartridges – and in this respect PHONO-1 leaves nothing to chance.
