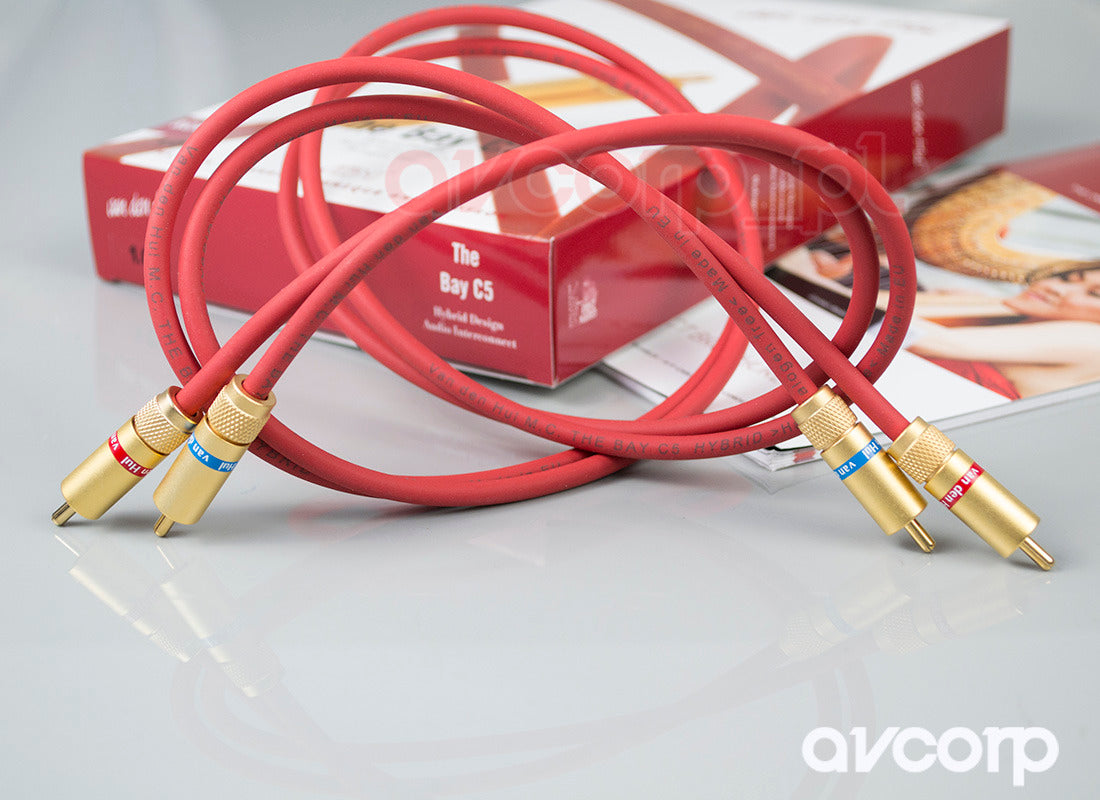

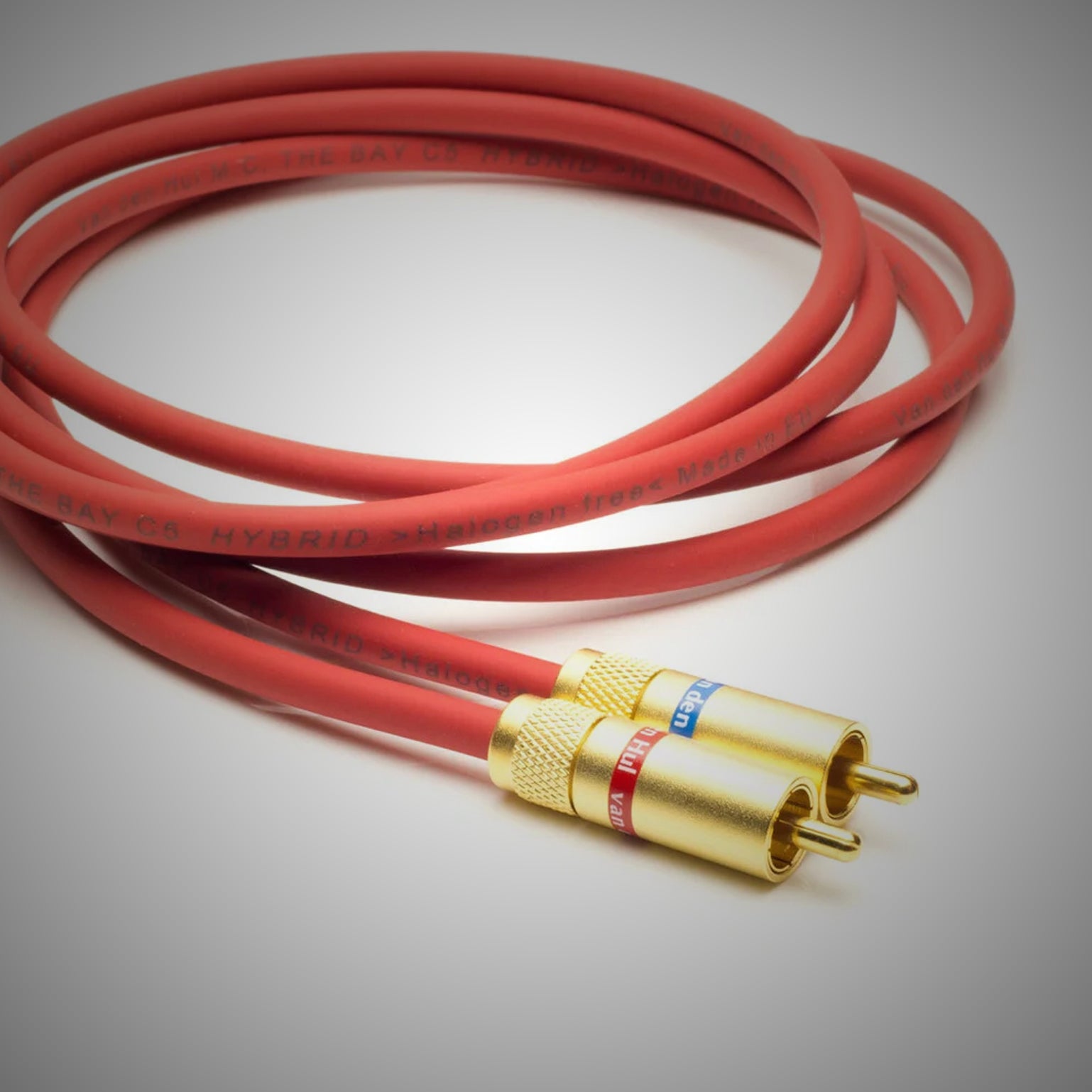

VanDenHul The Bay C5 ( RCA to RCA pair ) 1m Stereo Interconnect

Van Den Hul

$129.00 was $149.00

  • VanDenHul The Bay C5 ( RCA to RCA pair ) 1m Stereo Interconnect
  • VanDenHul The Bay C5 ( RCA to RCA pair ) 1m Stereo Interconnect

This product is currently sold out.

THE BAY C5 HYBRID (HALOGEN FREE)

Reviews:

HiFi World Review Apr 2002

HiFi Choice Review

Due to the large success of our (discontinued) The PATCHBAY B5 in its use as a general purpose audio interconnect, we have introduced The BAY C5 HYBRID: The coaxial (unbalanced) HYBRID version of our balanced The PATCHBAY B5.

Low priced and exhibiting an excellent price-to-performance ratio The BAY C5 HYBRID has been specially designed for general purpose and car hi-fi interlink applications. The BAY C5 HYBRID however is also perfectly suited for internal (pre)amplifier and mixing console wiring applications and as an unbalanced patchbay interconnect.

The design combination of a superior transmission quality, a low conductor-conductor capacitance, a very high screening factor together with a high mechanical flexibility and a long durability, though not being easy to manage, successfully has been achieved.

The high quality conductor material used in this cable is large crystal OFC with a dense silver coating.
The BAY C5 HYBRID furthermore has been fully equipped with Linear Structured Carbon ® (LSC) saturated layers which are standard in our more expensive cable products. These layers dramatically improve transparancy and imaging; By electrically bridging any metal cystal defects a stable conductivity at the lowest signal levels is obtained.

  • The coaxial construction is made with a center conductor consisting of 40 x 0.12 mm. strands exhibiting an effective cross section area of 0.452 mm² (AWG 20.6) and a resistance of 3.8 Ohm/100 meter.
  • The center conductor is coated with a layer of LSC and is insulated with foamed polyethylene.
  • The cable capacitance is 110 pF/m.
  • The double screen is made of a 16 x 6 x 0.12 mm. stranded braid with underneath a Linear Structured Carbon ® saturated layer to further close the cable against HF signals and to dramatically improve the signal quality.
  • The total resistance of the screen is 1.6 Ohm/100 meter.
  • The external 5.2 mm. diameter jacket is made of red colored HULLIFLEX ® 4, a material with superior properties compared to e.g. PVC; HULLIFLEX ® gives The BAY C5 HYBRID a very long life span without any ageing effects.

THE BAY C5 HYBRID (HALOGEN FREE)
material Hybrid
product category Interconnect
product category interconnect - Unbalanced, Analogue, Entry-level
product category internal wiring
cable type Coaxial
conductor material HYBRID: Large Crystal OFC with a dense Silver coating + Linear Structured Carbon ® saturated layer(s)
design purpose General purpose and car hi-fi interlink / Internal (pre)amplifier and mixing console wiring / Unbalanced patchbay interconnect
eff conductor Core: 0.452 mm² / Core: AWG 20.6 / Core: 40; Screen: 96
external diameter 5.2 mm.
jacket colors Red
resistance Core: 3.8 Ohm/100 m.; Screen: 1.6 Ohm/100 m.
capacitance 110 pF/m.
insulation

Core: PE foam; Jacket: HULLIFLEX ® / 300 Vrms min.

connector types

Our RCA type C - 5.5; Custom mountable on ordered lengths.
