The Gryphon Essence pure Class A amplification system has been developed based on the experience acquired and lessons learned from our top of the line Gryphon Pandora preamplifier and the stereo and monoblock Mephisto power amplifiers. Gryphon Essence exudes authority and maintains absolute control of your loudspeakers, with rarefied finesse to reveal even the subtlest variations in any style of music.
Gryphon Essence represents the perfect symbiosis of musical authority and effortless ease.

The Gryphon Essence Preamplifier

The strictly dual mono configuration achieves the shortest possible signal path with minimal internal wiring. In the interest of ultimate fidelity, superfluous circuity such as tone controls, balance controls, headphone connections, mono switching, polarity inversion and more have been banished from the signal path, thereby reducing interchannel crosstalk and signal path coloration to an absolute minimum.

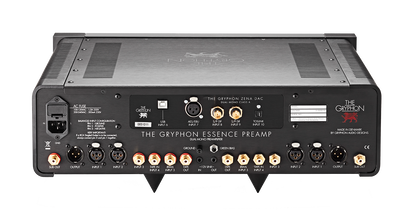

As delivered, the Gryphon Essence preamplifier is a pure line preamplifier with two balanced XLR input and three single-ended phono inputs. With no internal wiring, the only cable are a short ground lead, display ribbons and AC power wiring mounted in a shielded channel from the rear IEC socket to the power switch to minimise 50/60 Hz interference.

Exhaustive investigation and auditioning have preceded the selection of every component part and many original, proprietary parts have been custom-designed and built exclusively for Gryphon.

Because Gryphon lavish attention on each aspect of the circuit and fully grasp the purpose and behavior of every single part of the whole, the design team can optimize performance in every, before moving on to the next step. This ensures simplicity, a short signal path and a unity of purpose with a single, well-defined objective: musical purity.

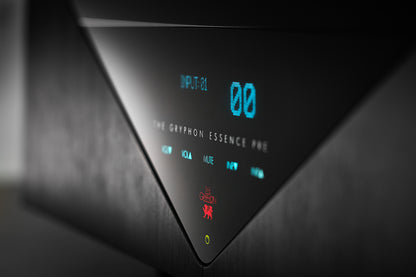

The range of microprocessor controlled, fully adjustable menu items include input naming with up to eight characters, maximum level, start level, input level matching up to 8 dB, AV throughput, user selectable display brightness (100/75/50/25%, Off), default restoration and Gryphon Green Bias. The Gryphon Essence preamplifier can be configured with a 0 dB AV throughput for ideal integration with the owner’s separate multi-channel installation.

As an optional extra, the Essence can be fitted with either an MM/MC phonostage or a digital to analogue converter. The phonostage is a Gryphon dual mono design based on the acclaimed Legato Legacy.

If you are using a compatible Gryphon Class A power amplifier, you may choose to connect the Green Bias control link, a Gryphon invention for automatic regulation of user selectable Class A bias between the sockets marked GREEN BIAS on the preamplifier and on the power amplifier.

The peerless finish, build quality, ergonomics and pride of ownership that contribute to the totality of the Gryphon concept can only be fully understood and appreciated up close and in person. The distinctive, luxuriant finish of every Gryphon product arises organically out of the audio circuit design and the user interface for a truly unique integration of form and function.

The exemplary build quality combines brushed, anodised aluminium with subtle black acrylic details for a highly refined aesthetic sensibility.

From the very beginning, every Gryphon product has offered stunning audio performance, sumptuous styling and superb user- friendliness, catering to the needs of the discerning audiophile who demands musicality, convenience and aesthetics, all without compromise.

Essence bass performance is simply superb: firm, well-defined, with massive attack, in a pure demonstration of power.

The wealth of detail and fine handling of bass and high frequencies contribute to the preamplifier’s ability to render the width and depth of a soundstage with three-dimensional realism and instrumental placement with great precision and realistic size.

FEATURES
• Exterior design by Flemming E. Rasmussen
• Electronics design by Tom Møller
• Dual mono configuration
• Zero global negative feedback
• 440,000 μF (Stereo) or 880,000 μF (Mono version) capacitor bank
• Balanced dual differential Class A input circuitry followed by a high-speed voltage amplifying Class A stage
• Fully regulated low noise power supply for all voltage amplifying stages
• DC servo coupling
• Frequency-independent damping factor
• Polypropylene capacitors for local power supply decoupling
• Four-layer up to 70 μm copper printed circuit boards
• One custom-made 1350 VA toroidal transformer
• Separate power supply for digital and analog circuits
• Soft Start turn-on prevents triggering of fuses in the home electrical system
• Gold-plated Swiss Neutric XLR socket for one balanced input per channel
• Gold-plated custom-built binding posts
• 12 V DC link for power up and down
• Automatic Green Bias setting or manual Low/High bias
• Flash memory upgrades via PC or Key-fob
• Non-invasive protection system
• RGB LED bar indicating Bias High, Low status.
• Standby current consumption < 0.5 W
• EU CE approval
• Designed and built in Denmark
