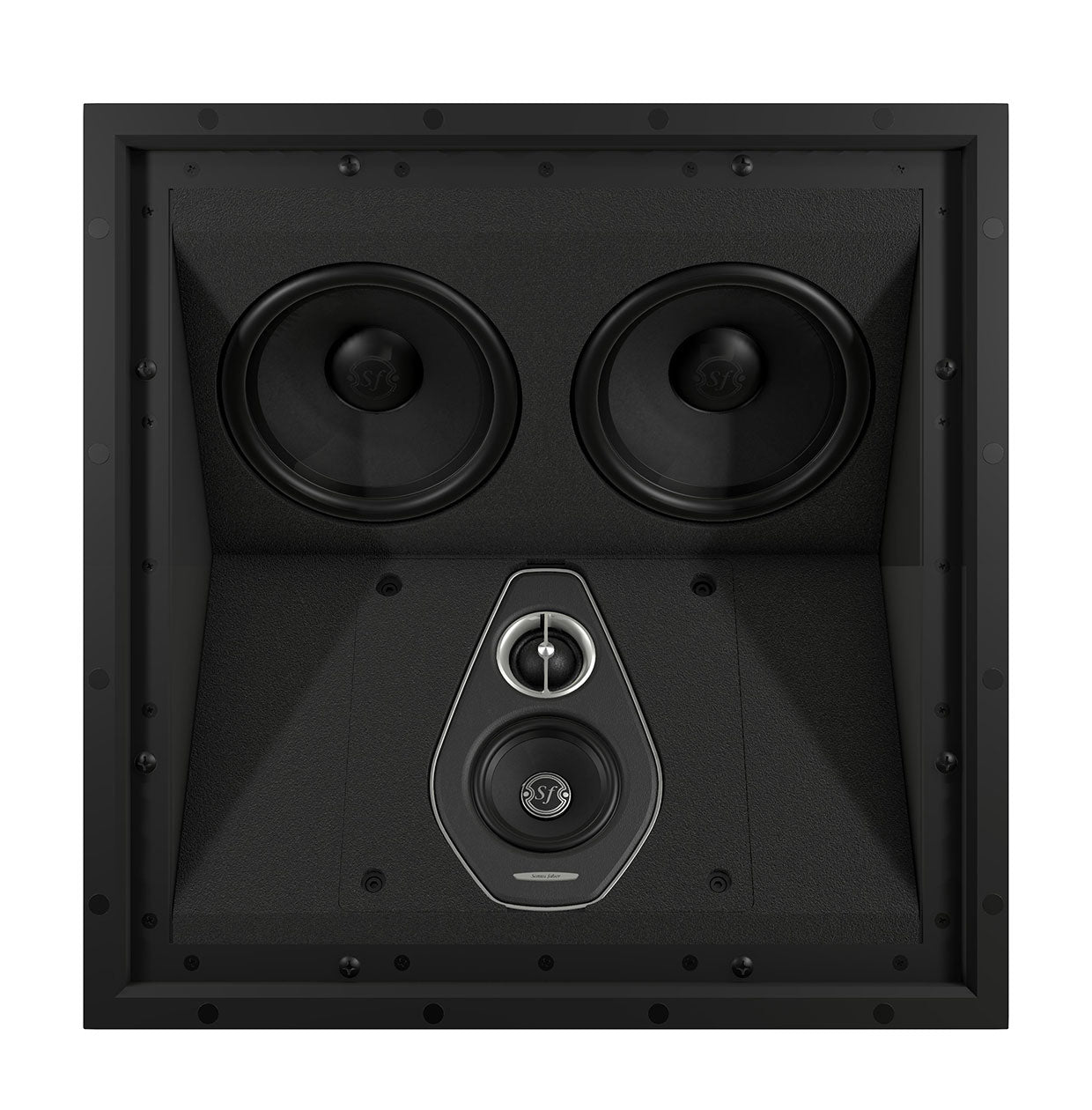

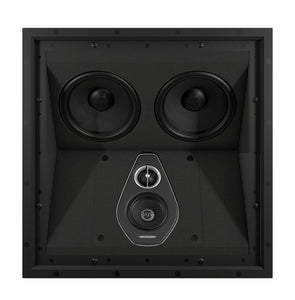

SONUS FABER Palladio Level 6 PC-664P Ceiling Loudspeaker

SONUS FABER Palladio Level 6 PC-664P Ceiling Loudspeaker

This line of Custom Installation speakers in-wall and in-ceiling directly refer to the Olympica Nova Collection for the choice of materials, the electroacoustic project and design.

These models represent a unique choice in the custom installation landscape: the first speakers that even furnishes your home.

3-way point in-ceiling loudspeaker system.
Drone cone passive radiator enclosure

Specifications

Tweeter: Silk dome DADTM driver: 29mm / 1.1"
Midrange: Natural fibre & cellulose pulp: 80mm / 3.1"
Woofer & Drone Cone: Sandwich construction -vcellulose pulp / syntactic foam: 165mm / 6.5"
Cross-over: Paracross TopologyTM: 500 / 3,500 Hz
Frequency response: 58 Hz - 25,000 Hz
Sensitivity: 90dB SPL (2.83V/1m)
Nominal Impedance: 4 ohms
Power Handling: 40 - 200W, without clipping
Frame outer: 411 x 411 mm / 16.2 x 16.2 "
Cut out: 388 x 388 mm / 15.2 x 15.2 "
Depth behind surface: 220 mm; Protrusion: 9mm
Includes bezel-free square magnetic grille
