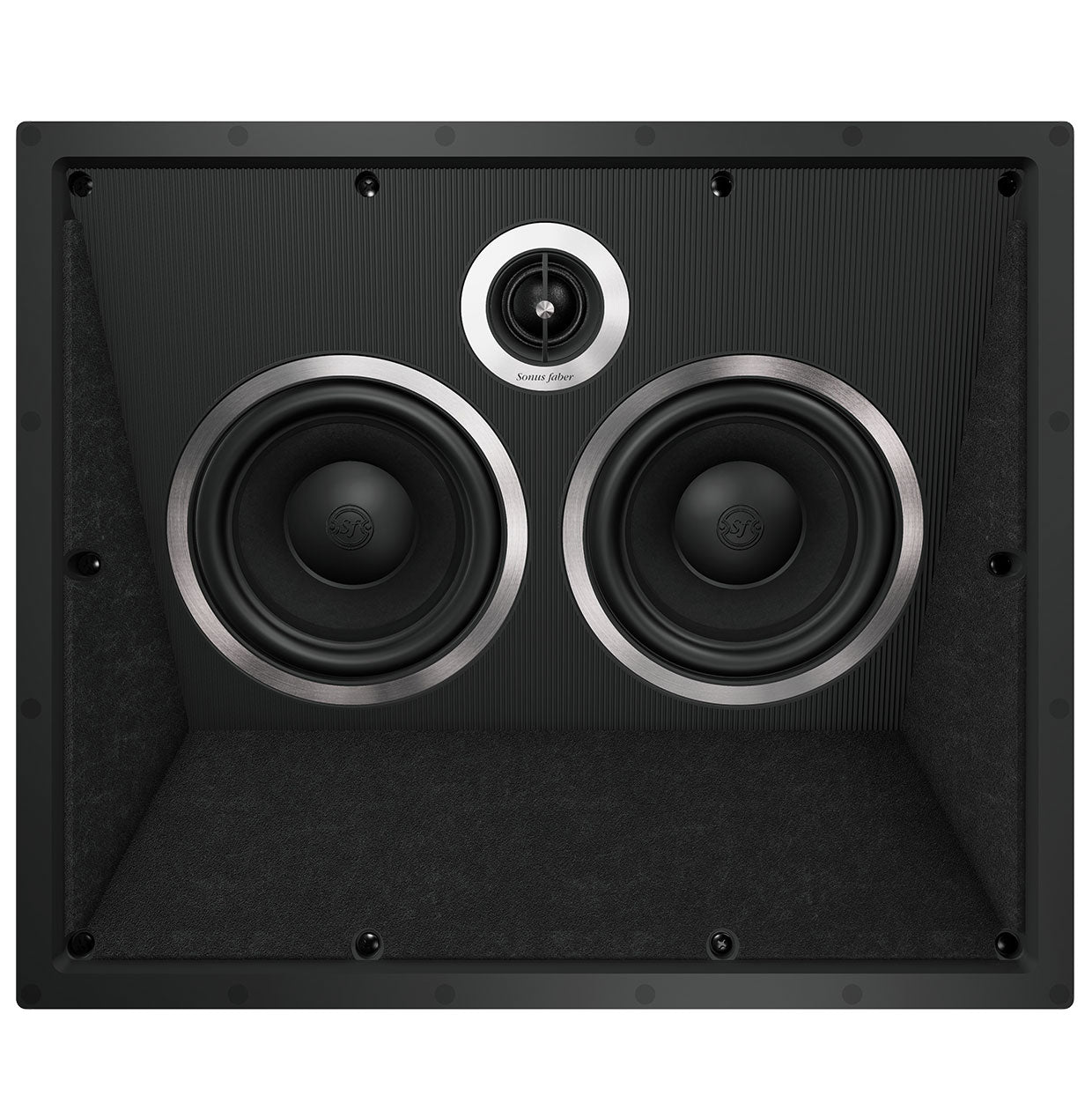

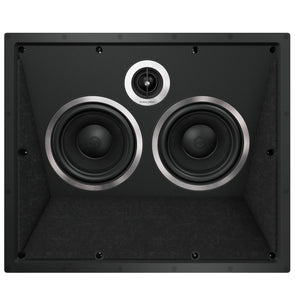

Sonus Faber Palladio Level 5 PC-563P Ceiling Loudspeaker
A full line of Custom installation speakers in-wall and in-ceiling that
inherits design and technical solutions from the entry level collection
of Sonus faber, the Sonetto collection.
Discreet and effective solution for any listening environment.
2-way point in-ceiling system. Open Design.
Specifications
Tweeter: Silk dome DADTM driver: 29mm / 1.1"
Mid-woofer: Natural fibre & cellulose pulp: 2x 165mm / 6.5"
Cross-over: Paracross TopologyTM: 1,650 Hz
Frequency response: 45 Hz - 25,000 Hz
Sensitivity: 92dB SPL (2.83V/1m)
Nominal Impedance: 4 ohms
Coverage angle (1 kHz, @-6 dB): ±45° H - ±45° V
Power Handling: 40 - 250W, without clipping
Frame outer: 460 x 386 mm / 18.1 x 15.1 "
Cut out: 433 x 359 mm / 17 x 14.1 "
Depth behind surface: 148 mm; Protrusion: 13mm
