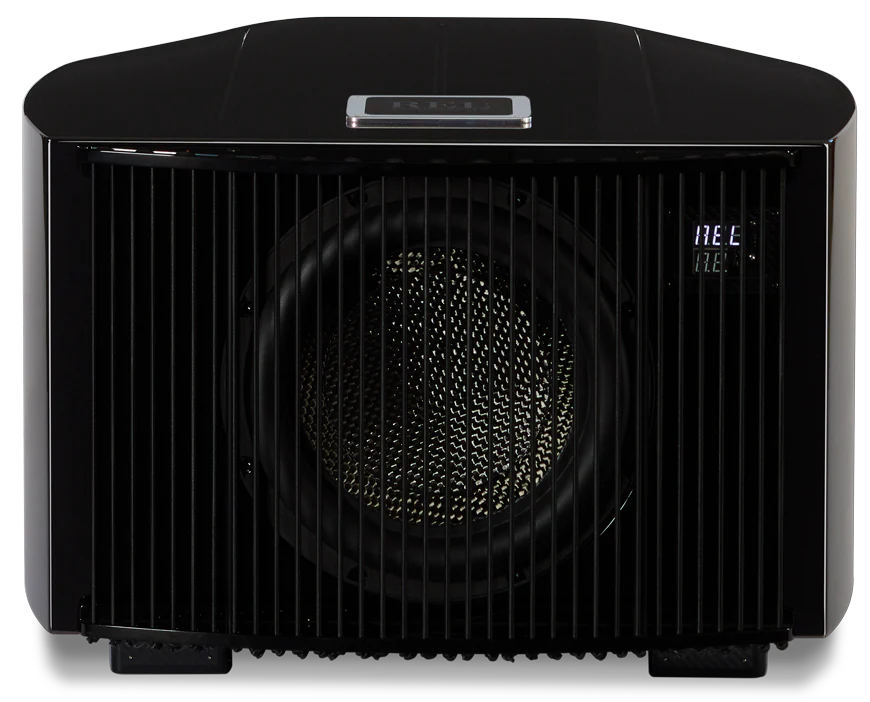

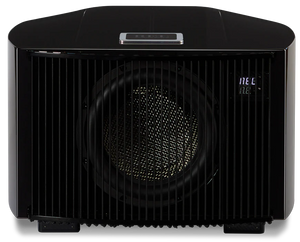

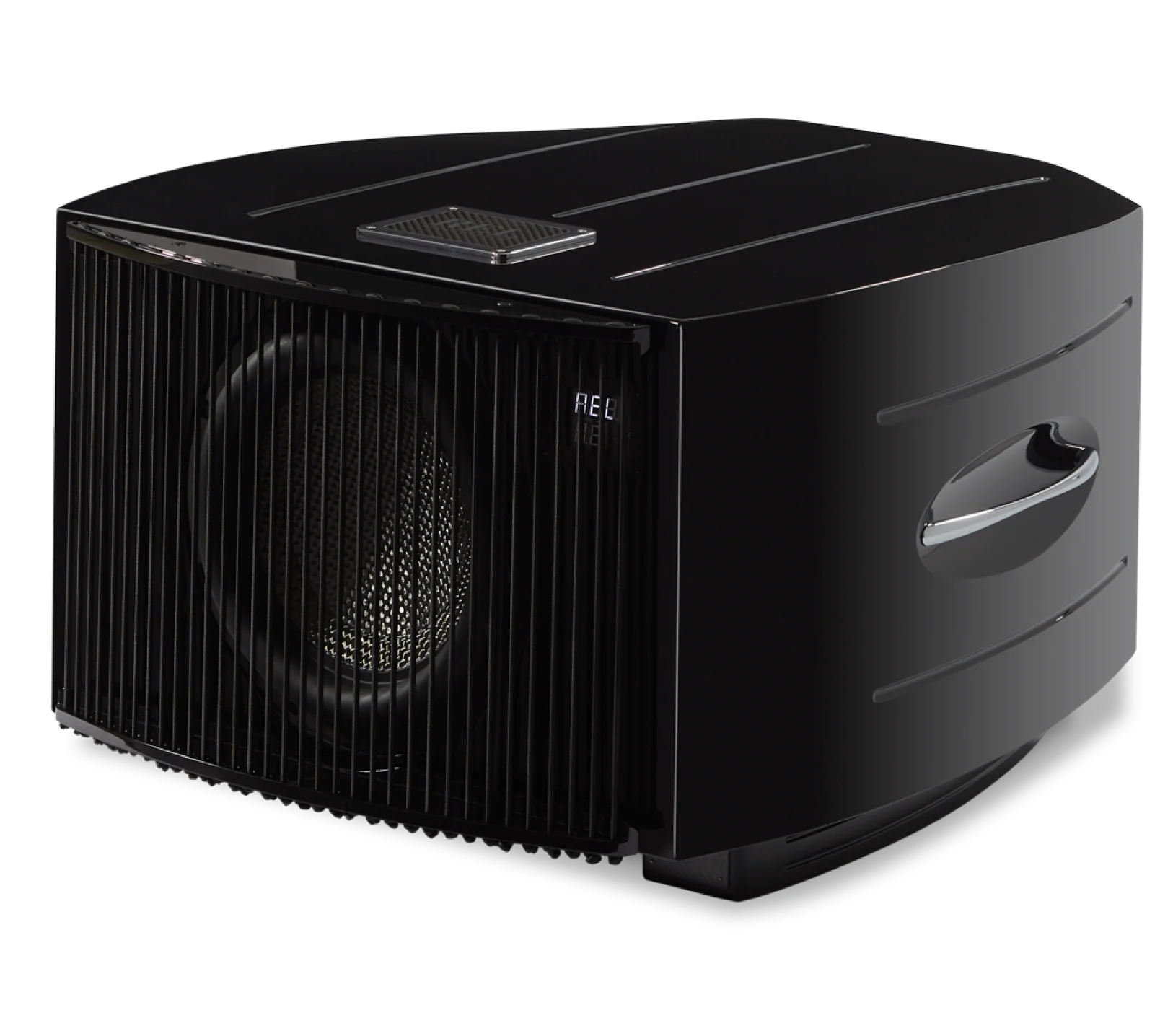

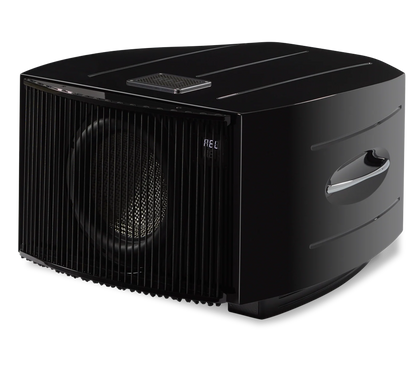

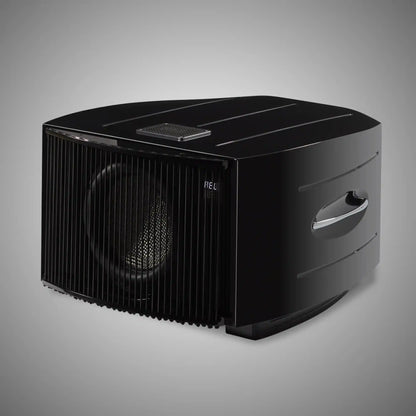

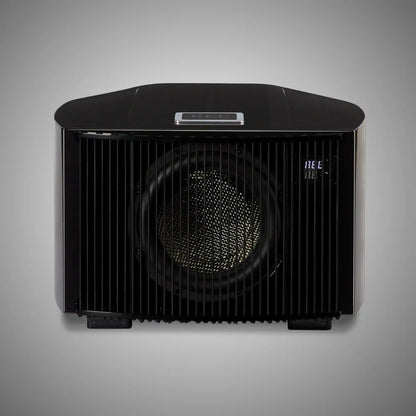

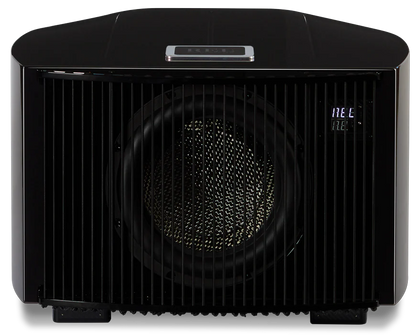

REL No.31 Reference Subwoofer
REL No.31 Reference Subwoofer

REL No.31 Reference Subwoofer

Regular price $14,999.00
Unit price  per
Tax included. Shipping calculated at checkout.

The REL No.31 exists to satisfy the needs of those who crave the finest yet have space limitations. How can you best deliver No.32’s sound quality, build quality, and thoughtful features with a more compact footprint? Enter No.31.

REL No.31 Subwoofer

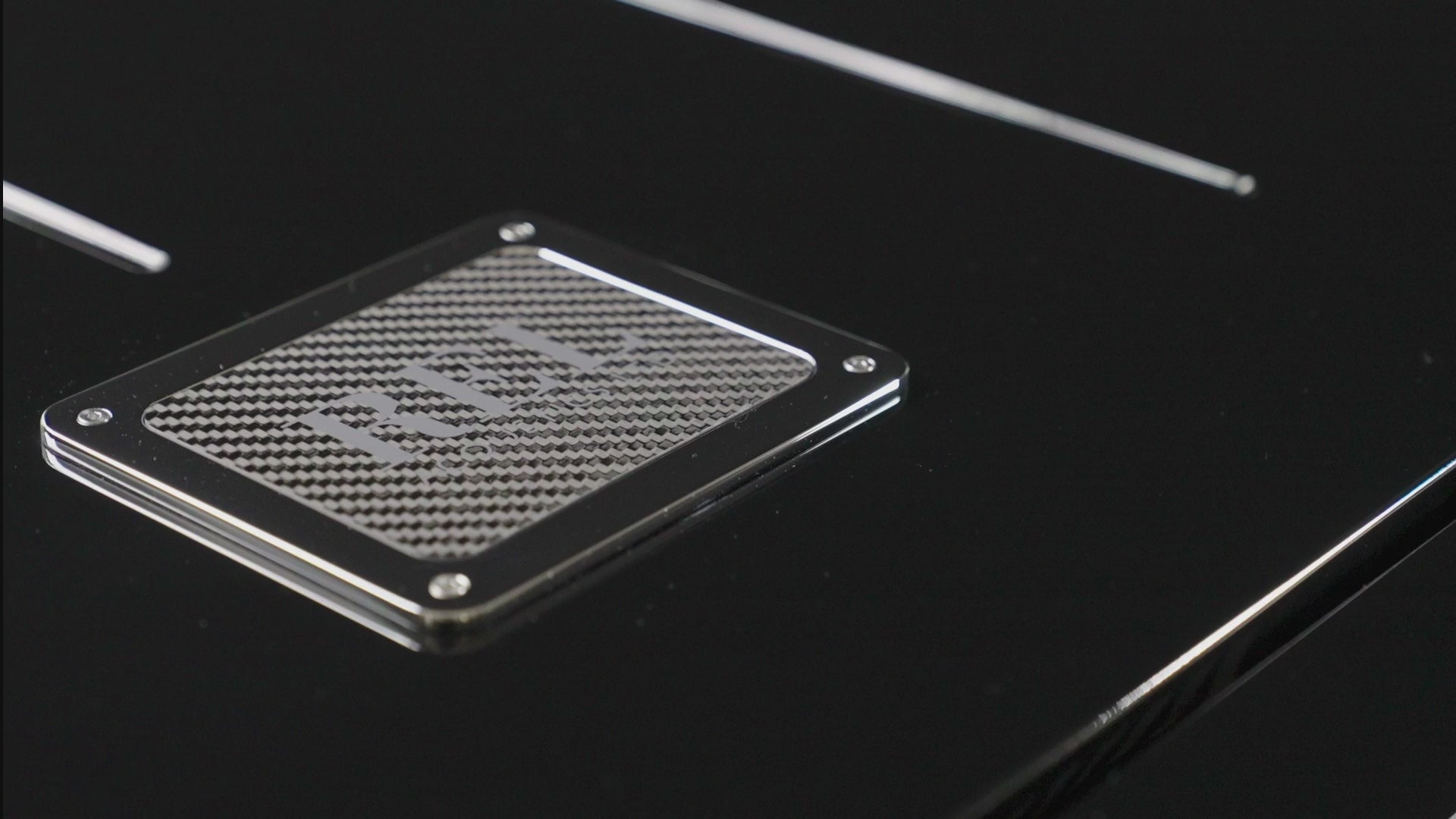

No.31 matches No.32’s design stroke for stroke, yet somehow it manages to look more svelte, crouching closer to the floor—almost feline in its grace. The elegant plated handles inset into an ellipse is retained, as is the string grille that permits vast amounts of air to explode into your room without creating noise like cloth grilles can. No.31 features the curvilinear radius to the sidewalls that define both its performance and its character. But the reduction in visual and actual three-dimensional physical mass is remarkable. No.31: when the best must be delivered in a smaller space.

The incredible excursion of the 12” pure carbon fibre driver allows it to play as loud as its larger stablemate. Yet, the No.31 possesses the tactility, nimbleness, and attack that only the greatest subwoofers have ever been able to deliver. Also, its sonic signature works in modestly-scaled rooms and with a vast range of fine speakers. The driver is accelerated by a specially wound 3” voice coil driven by a 13-pound magnetic structure; even near its limits, the voice coil remains solidly inside the gap. It is this visceral power, coupled with great delicacy and nuance, that is No.31’s signature.

No.32’s NextGen 7 Class D 1,000 watt amplifier also lives inside No.31, only limited to 900 watts to ensure the perfect complement to the 12” bass engine within No.31. This allows the maximum dynamics to be delivered while ensuring a long, cheerful life for both components. Here too, the LimitLess Limiter,™ which permits the amplifier to tiptoe right up to its limit without audible compression is part of the magic, conveys a rhythmically effortless quality. Also, its dual parametric filters allow precise micro-tuning; the deepest bass is slightly reinforced, while the upper ranges of bass can be gently trimmed to ensure a brilliantly rendered transition from bass to the main speaker. The electronic design of the reference range is itself artistry.

Take control of your No.31 by grasping the REL Reference Remote Control. Immediately, you will be struck by the perfect fit in your palm, the result of careful thought and numerous generations of trial-and-error fittings during prototype development. The second reaction to it is the awareness of its mass, which conveys its quality, permanence, and immutability. It tells you, “I am a thing of substance, of quality. Pay attention, what you do next matters.” If you have owned a REL in the past (and fully 90% of Rel Reference owners are), all the familiar controls are right at hand, exactly where you’d want them. High (or low if using active speakers) level gain sits comfortably to the right side, the crossover rests in the middle, and .1/LFE gain is off to the left.

Type

Closed box, front-firing driver

Active Driver Size & Material

12 in. (300mm) long throw, carbon fiber cone with inverted carbon fibre centre cap, die cast alloy chassis

Passive Radiator Size & Material

N/A

Low Frequency Extension

17Hz at -6 dB Low Frequency

Input Connectors

High Level Neutrik Speakon, Low Level (2) RCA, (1) LFE RCA, (1) LFE XLR

Output Connectors

High Level Neutrik Speakon, (1) Low Level RCA, (1) LFE XLR, (1) Line XLR

Power Output

900 watts (RMS)

Amplifier Type

NextGen 7 Class D

Wireless Capability

REL AirShip II (sold separately)

Dual Parametric Filter

Yes

Finish

Piano Black Lacquer, 12 coats

PROTECTION SYSTEM

Fully Electronic Set Safe

Yes

D.C. Fault

Yes

Output Short

Yes

Mains Input Voltage

220-240 volts, 110-120 volts for certain markets

Fuses

7 Amp semi delay 230 volts operation

SUPPLIED ACCESSORIES

Mains Lead

Yes

Neutrik Speakon

Yes (10 Meters Nominal)

Interconnect

-

User Manual

Yes
