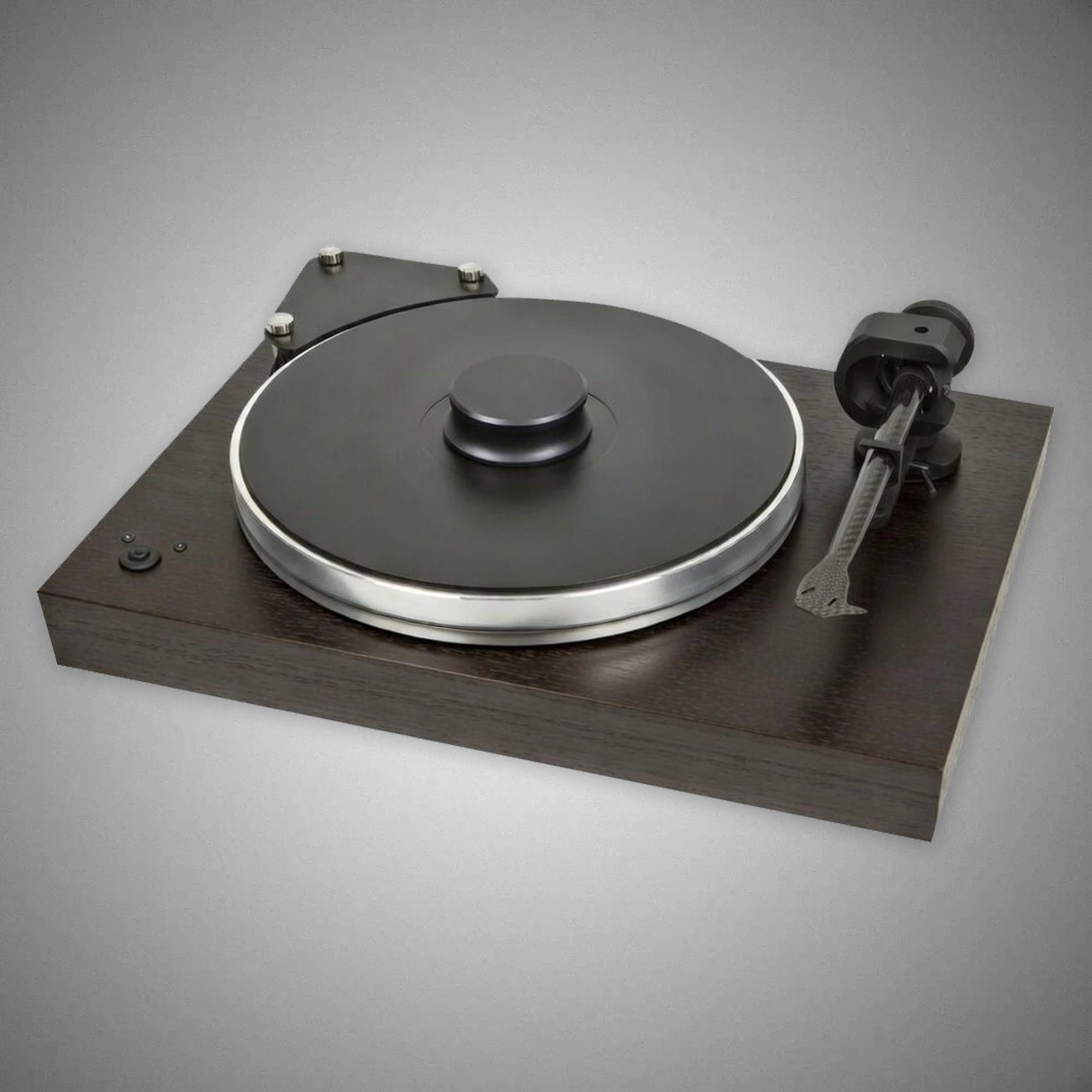

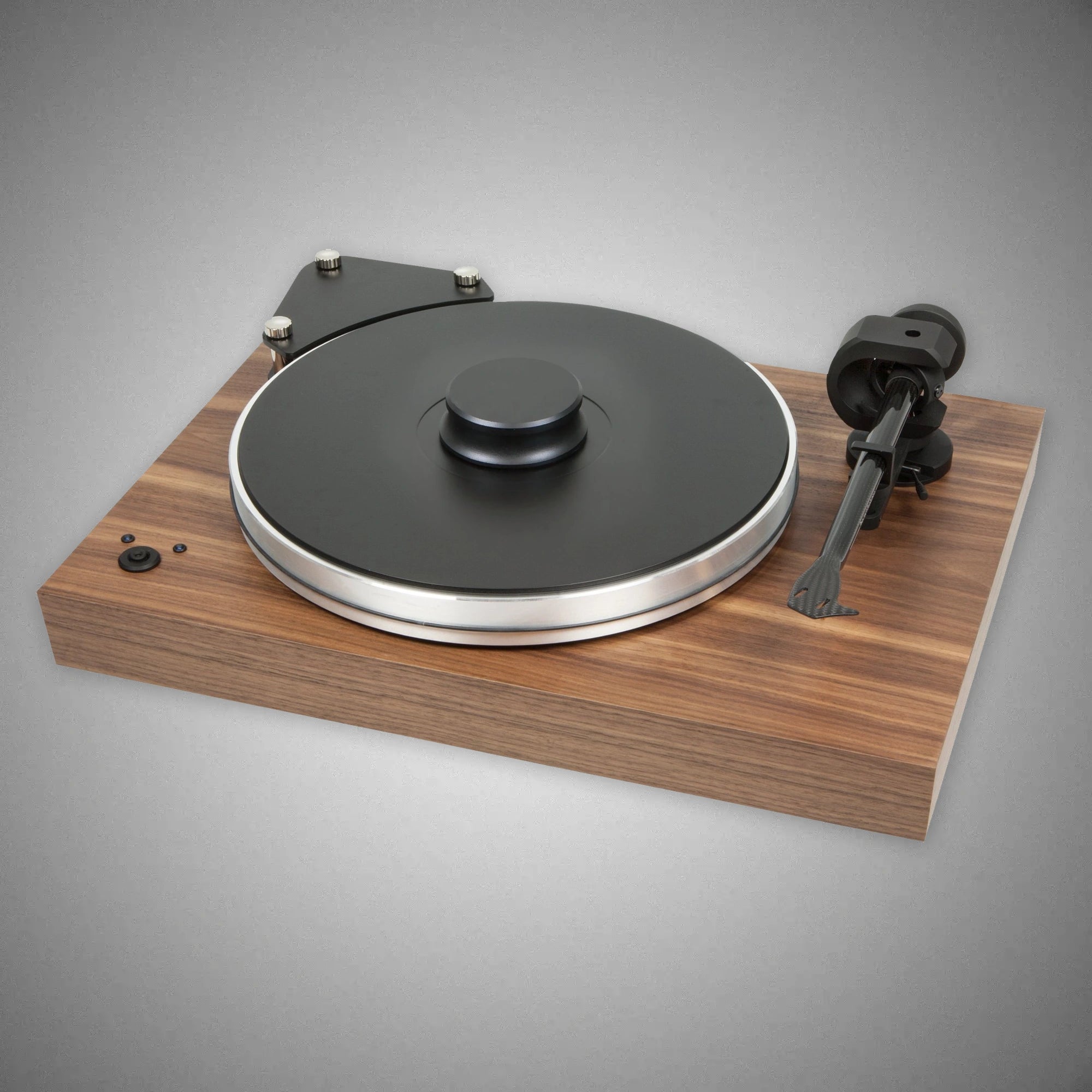

PRO-JECT Xtension 9 Evolution Turntable
Pairs well with

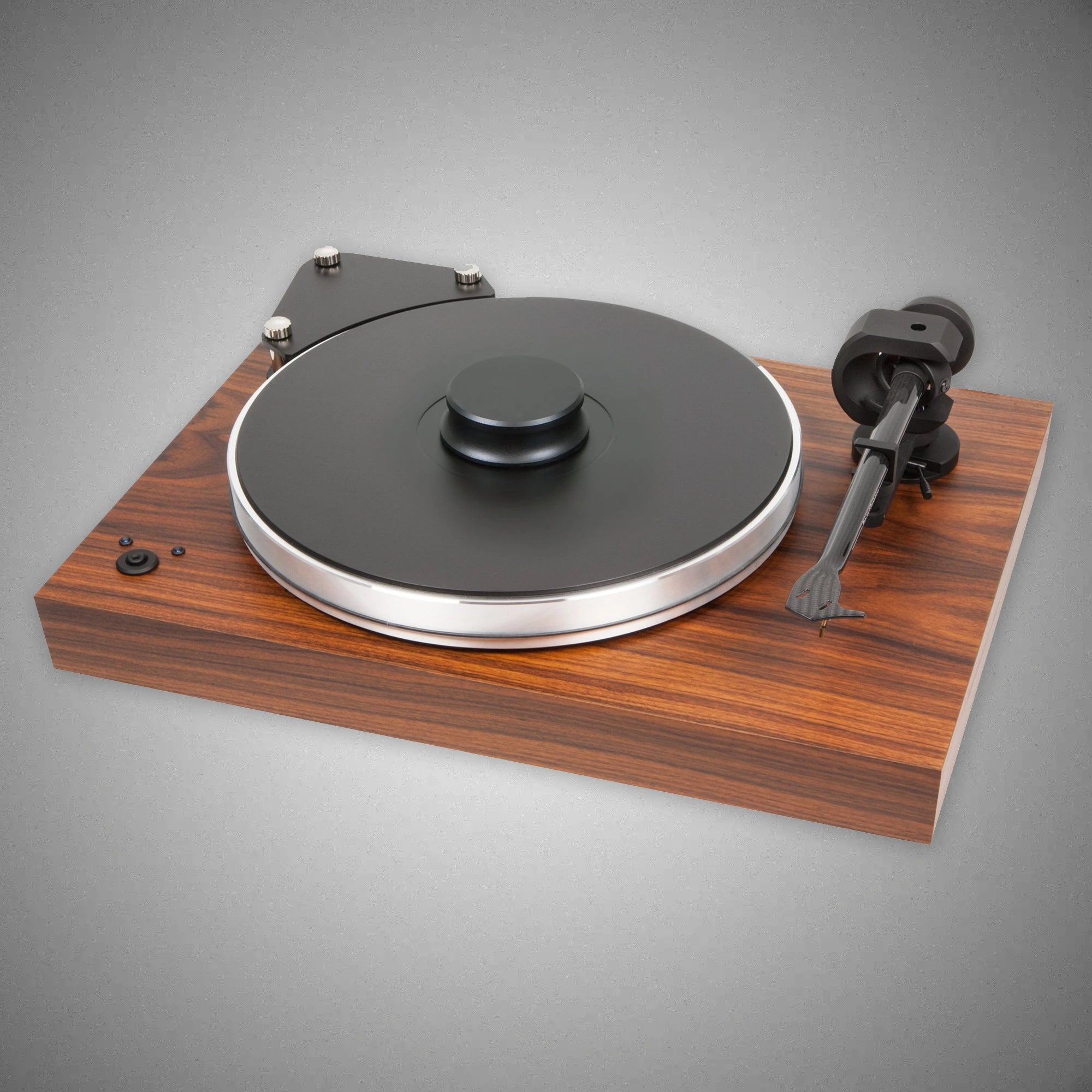

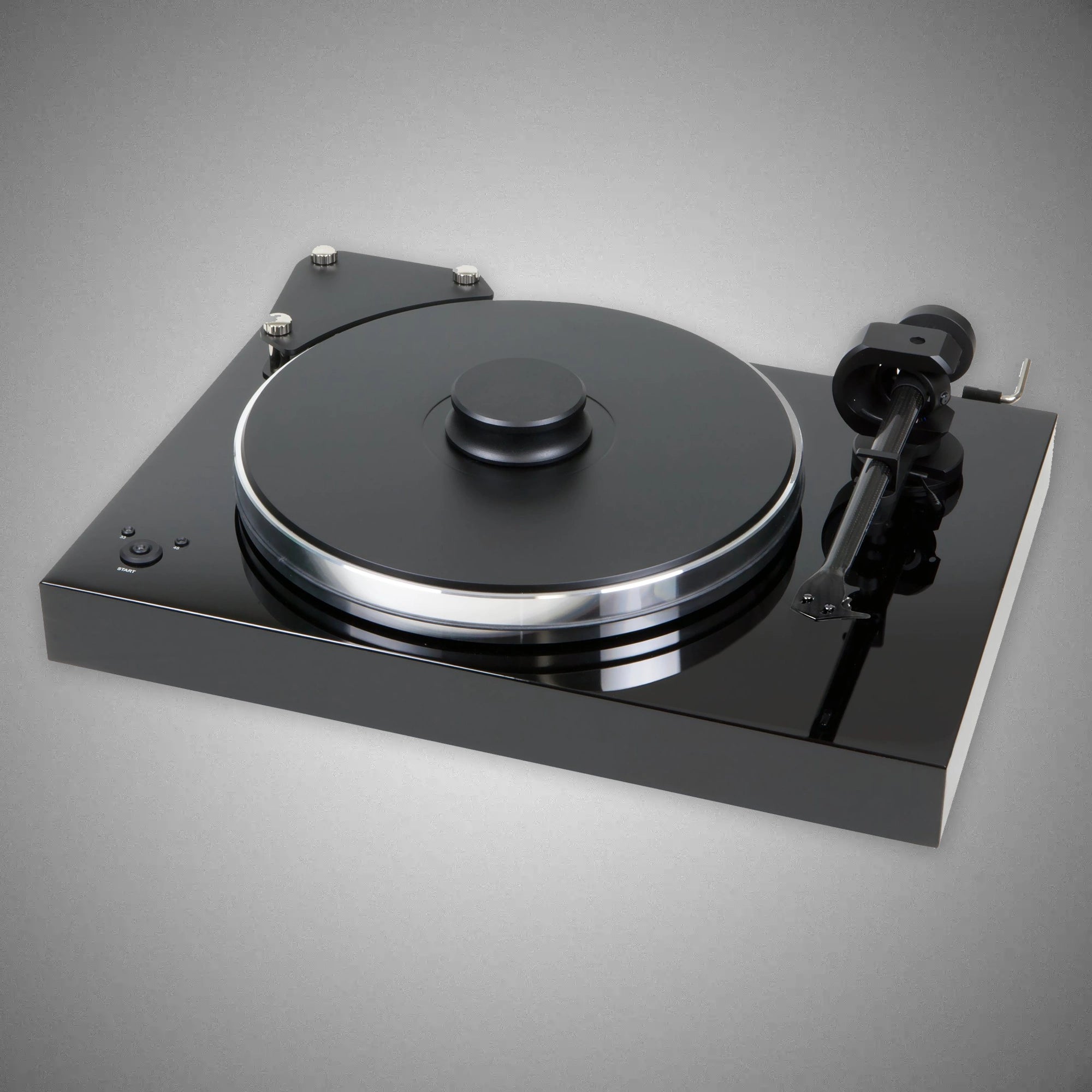

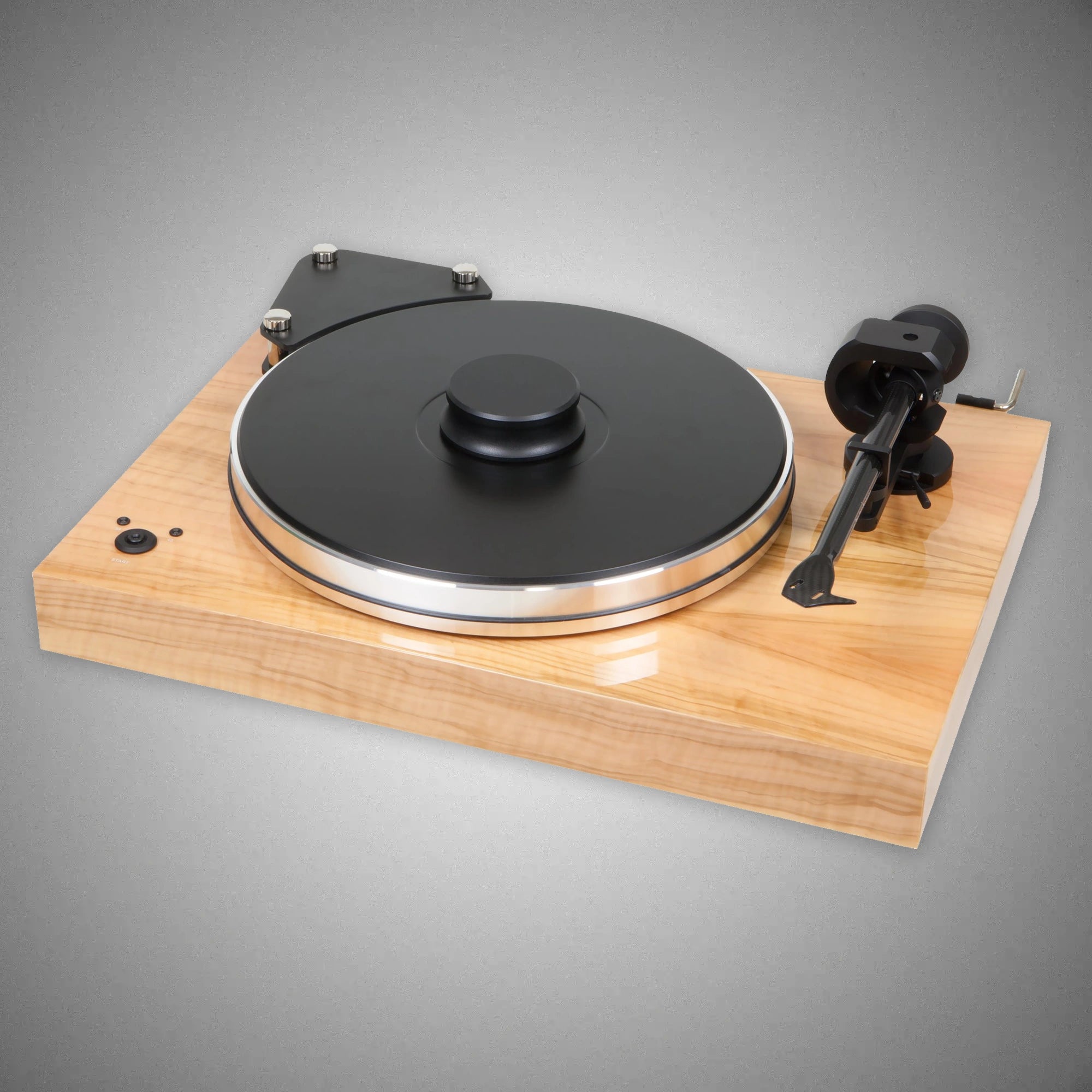

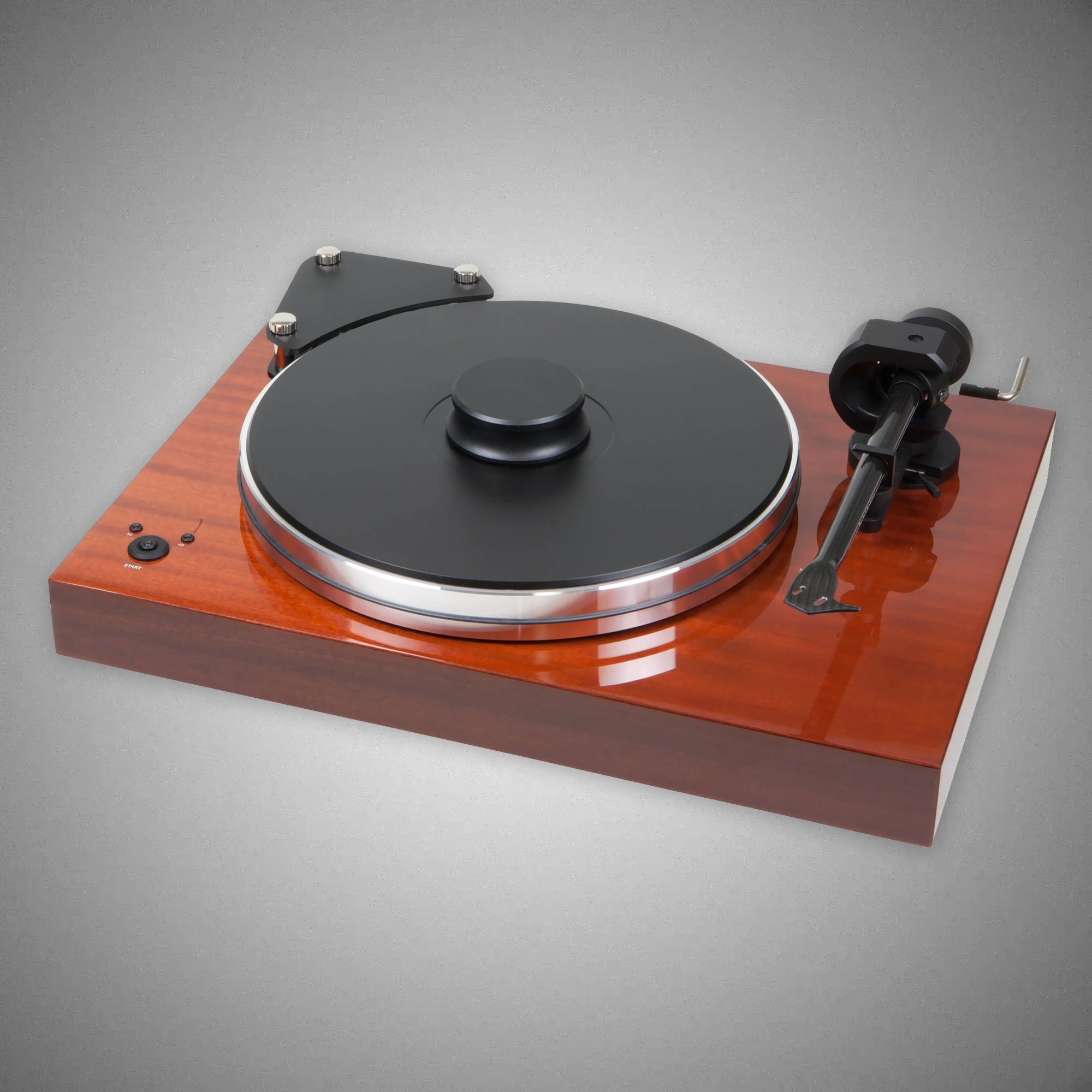

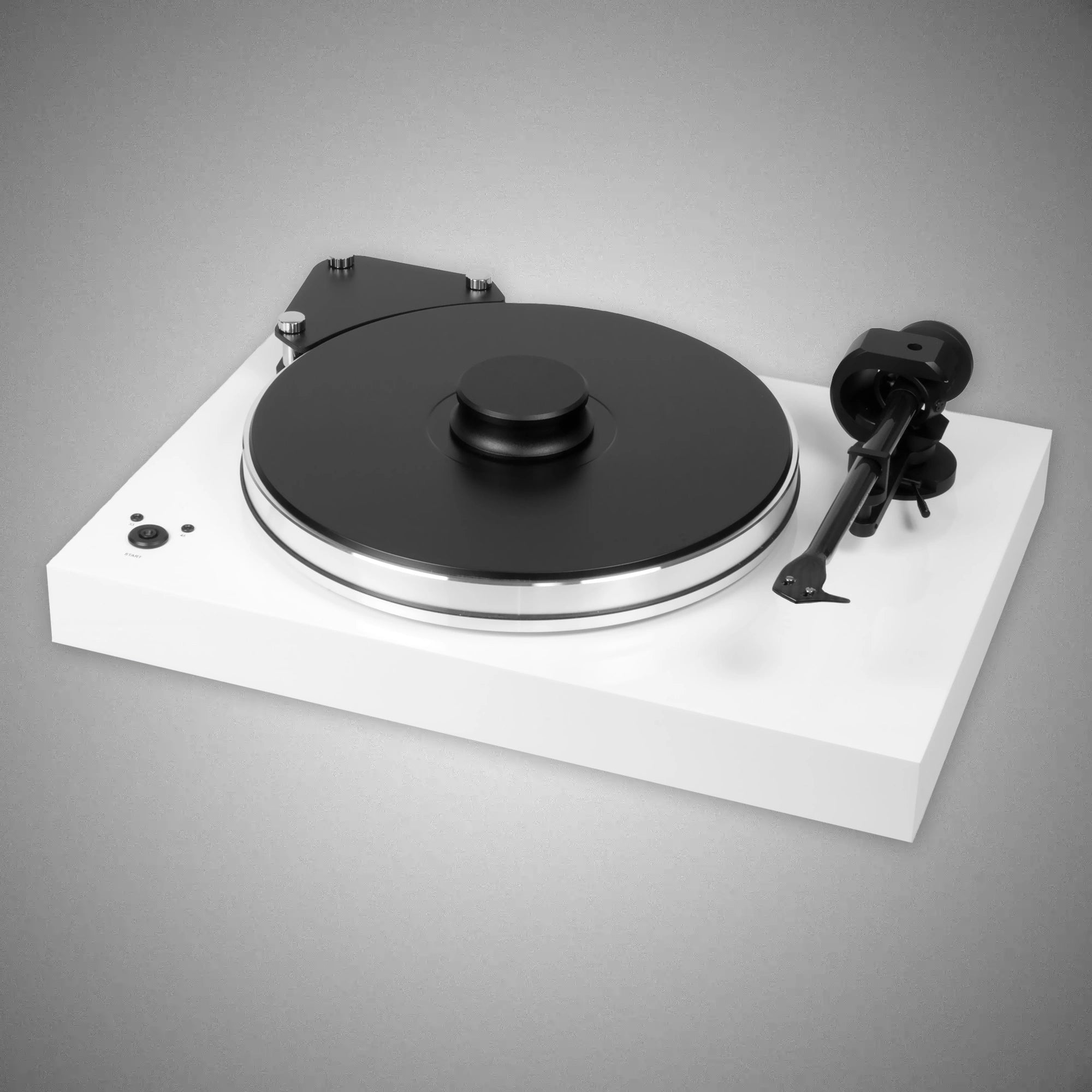

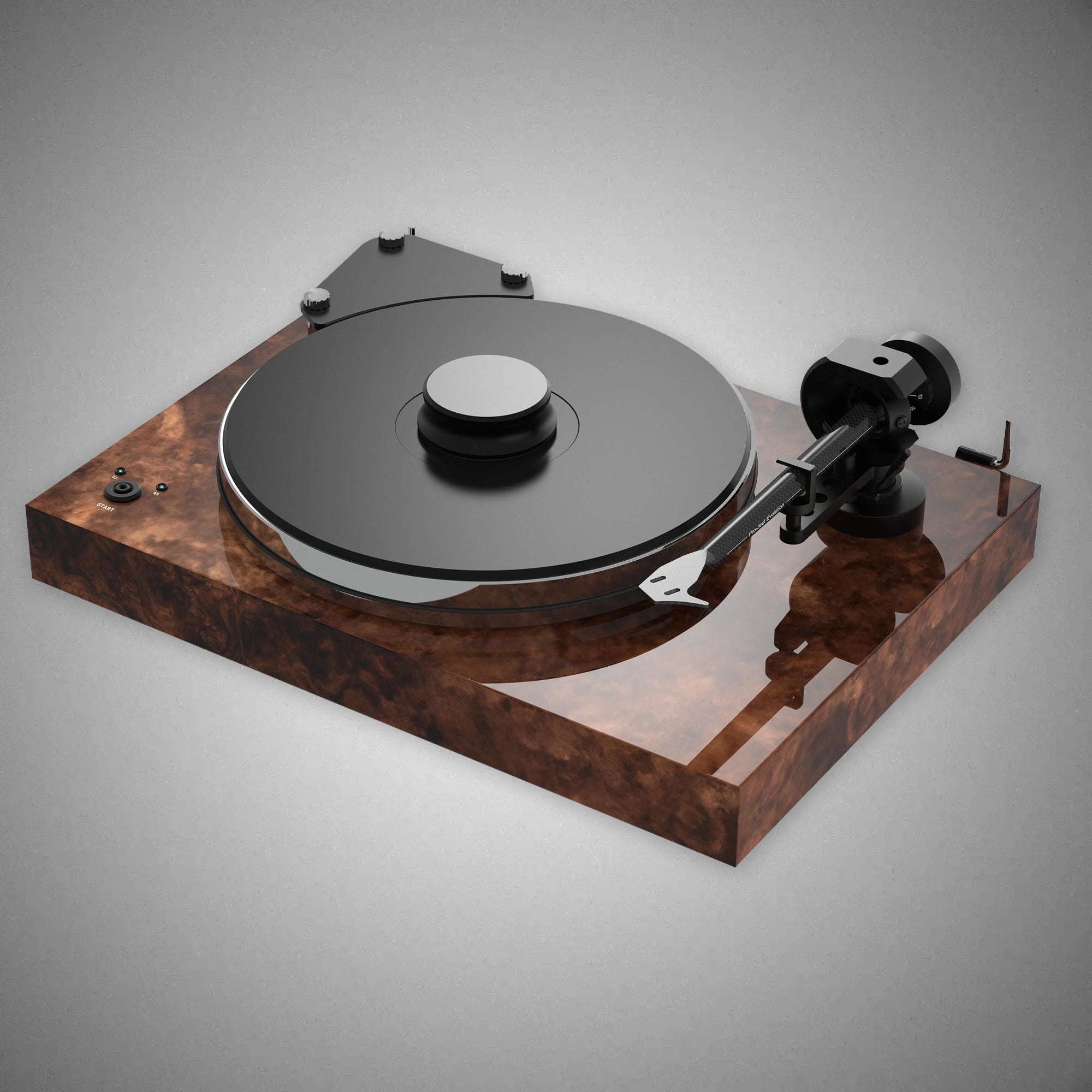

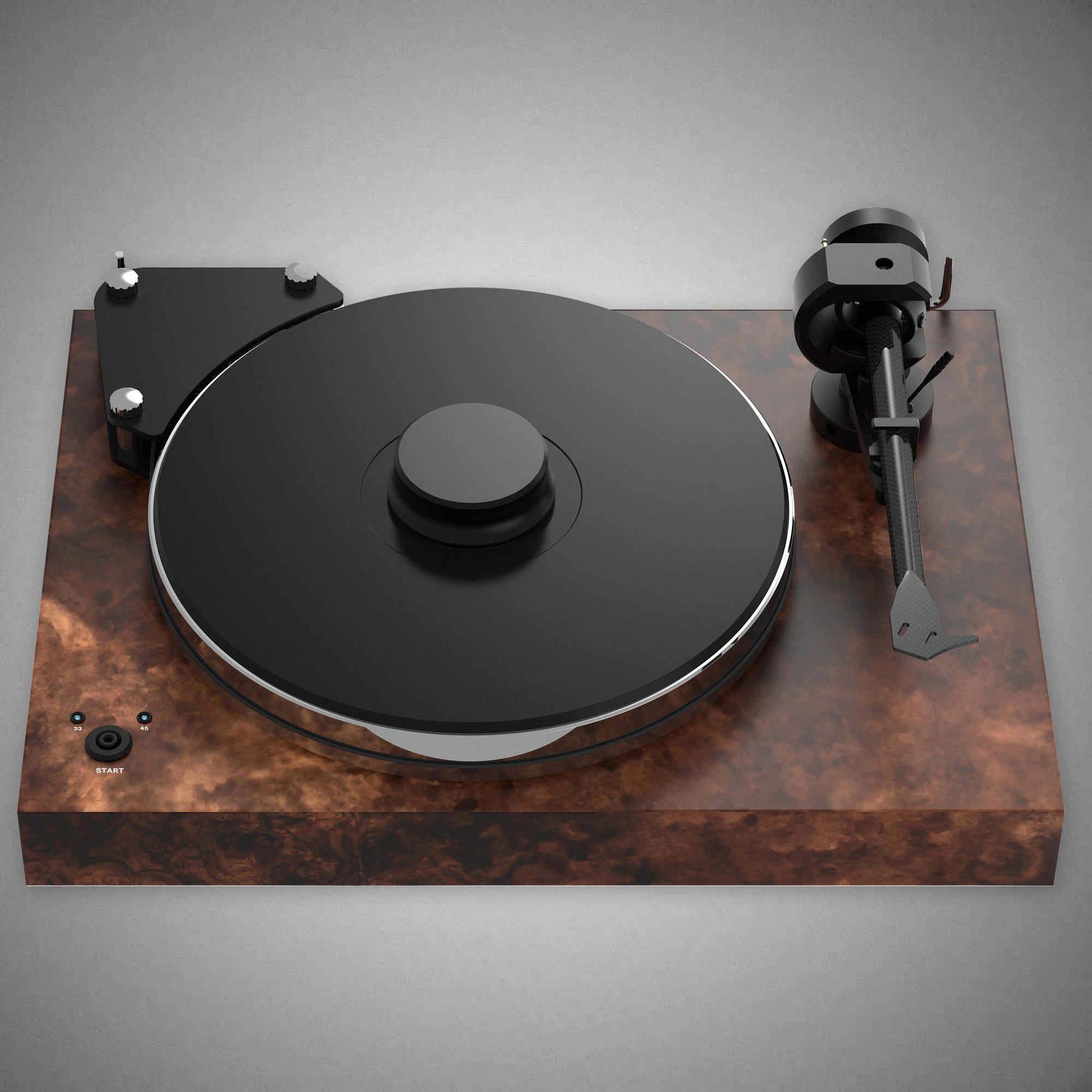

Xtension 9 Evolution incorporates all of Pro-Ject's turntable design experience in a slimline size. Choose from various finish options, either luxury hand painted colours or real wood veneers.
PRO-JECT Xtension 9 Evolution Turntable
Pro-Ject consider the Xtension 9 Evolution quite an achievement. They've managed to incorporate all of thei turntable design experience from more than 20 years into a high end, slim-line size to fit standard audio racks. The Xtension 9 chassis is made from MDF filled with metal granulate for high mass that virtually nulls resonance. Magnetic feet, which decouple the main plinth from its base, are combined with a weighty 16kg total turntable mass. The result is a unique combination of 'mass loaded' and 'floating turntable' design principles.
Instead of pure metal for the main platter, Pro-Ject found a perfect alloy which they've damped with thermo plastic elastomers (TPE). Additionally they've glued recycled Vinyl records to the top (which act as a perfect mat) and baked this 'sandwich' before precision balancing it. The final product subsequently benefits from a wonderfully resonance-free, heavy platter, that runs ultra-silently on an inverted ceramic ball bearing with magnetic suspension. TheXtension 9 Evolution includes a top-class 9cc Evolution tonearm and comes complete with a dust cover.
- Heavy 16 kg belt drive turntable
- Mass loaded magnetic floating subchassis
- Precision balanced sandwich platter
- Inverted ceramic ball bearing with magnetic support
- Heavy weight record clamp
- MDF chassis filled with metal granulate with low levels of resonance and high mass
- Electronic speed control between 33 and 45 RPM
- 9cc Evolution tonearm made from carbon fibre
- Inverted tonearm bearings (ABEC 7 quality)
SPECIFICATIONS
| Speed: | 33 / 45 rpm (electronic speed change) |
| Drive principle: | belt drive |
| Platter weight / diameter: | 5,4 kg / 300mm |
| Speed variance: | ± 0,09% |
| Wow and flutter: | ± 0,1% |
| Signal to noise: | 73dB |
| Tonearm: | 9“ one-piece carbon-fibre tonearm |
| Effective arm length/overhang: | 230mm / 18mm |
| Effective tonearm mass: | 8,5g |
| Tracking force range: | 0-25mN |
| Cartridge weight range from: | 4 - 14g |
| External power supply: | 220-240V/50Hz / 15V/1600mA DC |
| Power consumption: | 4W (max.) / < 1 watt standby |
| Included accessories: | Record Puck, Connect it E 5P to RCA phono cable, dustcover, power supply |
| Dimensions (W x H x D): | 465 x 185 x 350 mm lid closed |
| Weight: | 16kg |
