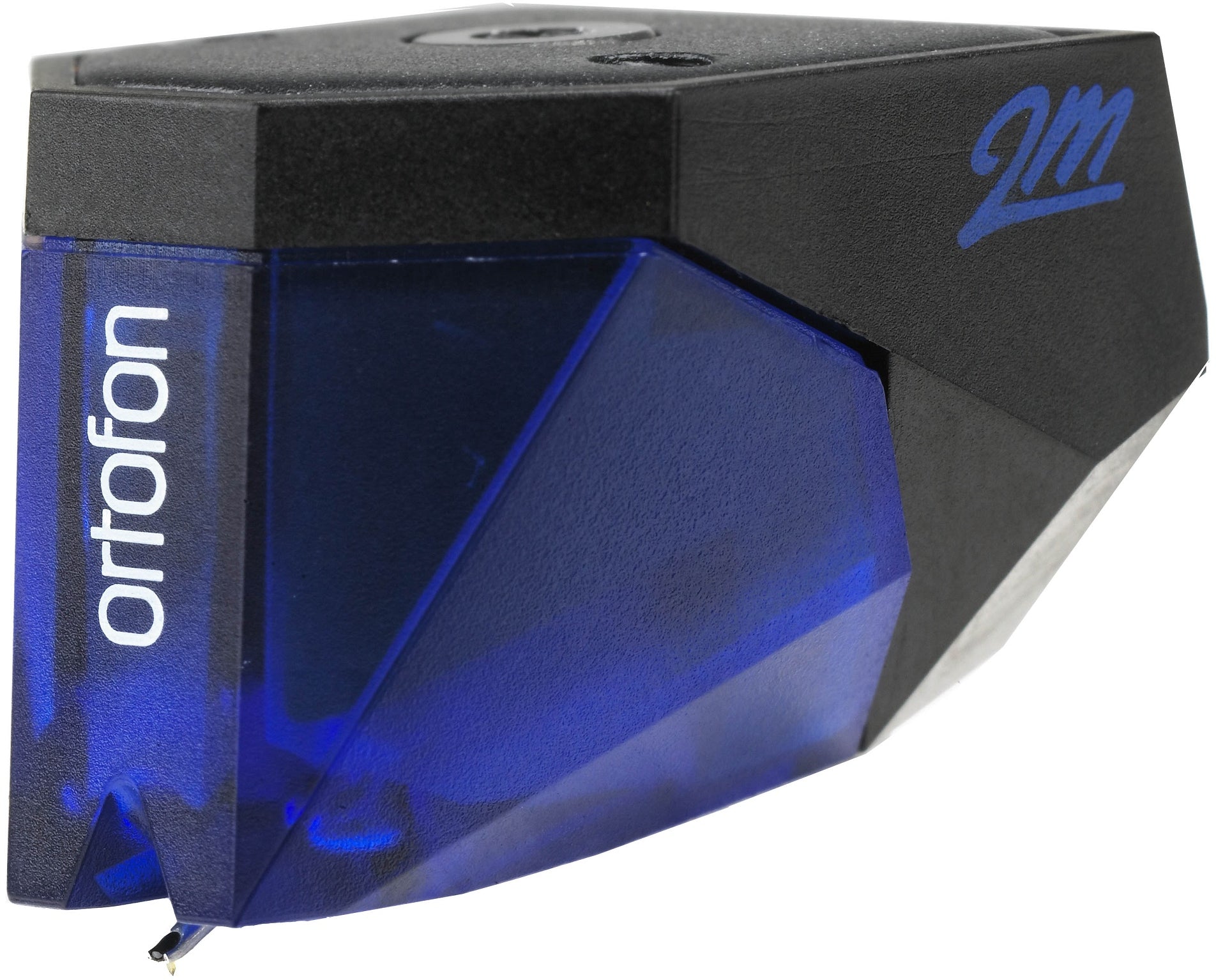

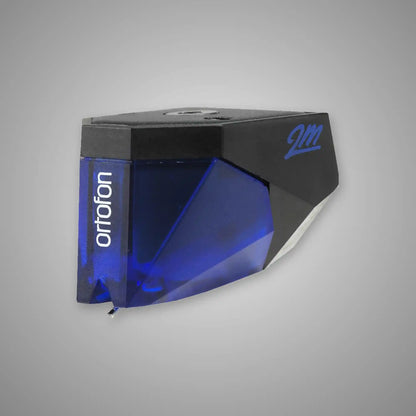

Ortofon 2M Blue Moving Magnet Cartridge

Ortofon

$329.00

This product is currently sold out.

2M Blue

Adds more dynamics and resolution, sounds more open.



Features:

- an improved engine, which provides an increased output of 5.5mV and an optimized sound reproduction and a high level of sonic accuracy

- Nude Elliptical diamond and split pole pins with a copper wire

2M Blue adds more dynamics and resolution, sounds more open and reproduces more details than 2M Red



Specification:

Output voltage at 1000 Hz, 5cm/sec.  -   5,5 mV
Channel balance at 1 kHz  -   1,5 dB
Channel separation at 1 kHz  -  25 dB
Channel separation at 15 kHz  - 15 dB
Frequency range at - 3dB  -  20-25.000 Hz
Frequency response  -  20-20.000 Hz + 2 / - 1 dB
Tracking ability at 315Hz at recommended tracking force  -  80 µm
Compliance, dynamic, lateral  -  20 µm/mN
Stylus type  -  Nude Elliptical
Stylus tip radius  -  r/R 8/18 µm
Tracking force range  -  1,6-2,0g (16-20 mN)
Tracking force, recommended  -  1,8 g (18 mN)
Tracking angle  -  20°


Channel balance at 1 kHz  -   1,5 dB
Channel separation at 1 kHz  -  25 dB
Channel separation at 15 kHz  - 15 dB
Frequency range at - 3dB  -  20-25.000 Hz
Frequency response  -  20-20.000 Hz + 2 / - 1 dB
Tracking ability at 315Hz at recommended tracking force  -  80 µm
Compliance, dynamic, lateral  -  20 µm/mN
Stylus type  -  Nude Elliptical
Stylus tip radius  -  r/R 8/18 µm
Tracking force range  -  1,6-2,0g (16-20 mN)
Tracking force, recommended  -  1,8 g (18 mN)
Tracking angle  -  20°

Internal impedance, DC resistance  -  1,3 kOhm
Internal inductance  -  700 mH
Recommended load resistance  - 47 kOhm
Recommended load capacitance  -  150-300 pF
Cartridge colour, body/stylus  -  Black/Blue
Cartridge weight  -  7,2 g

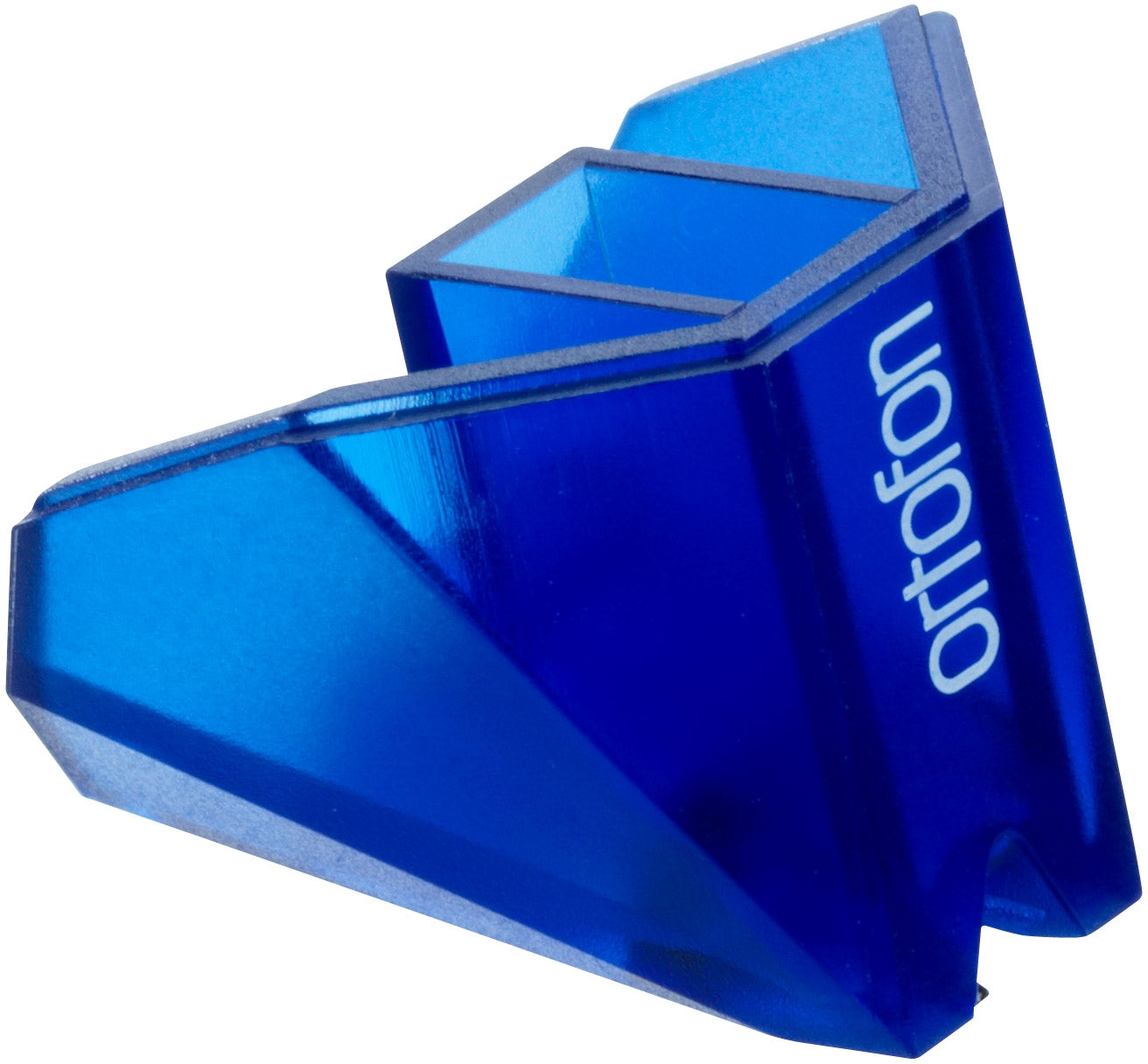

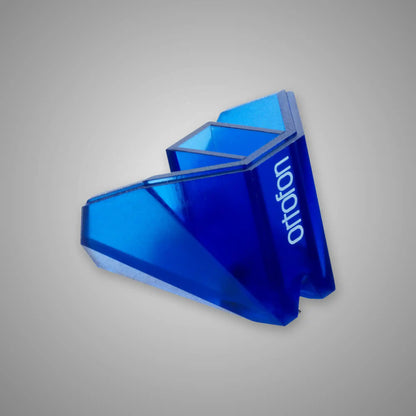

Replacement stylus unit  - 2M Blue (interchangeable with 2M Red and 2M Silver)
