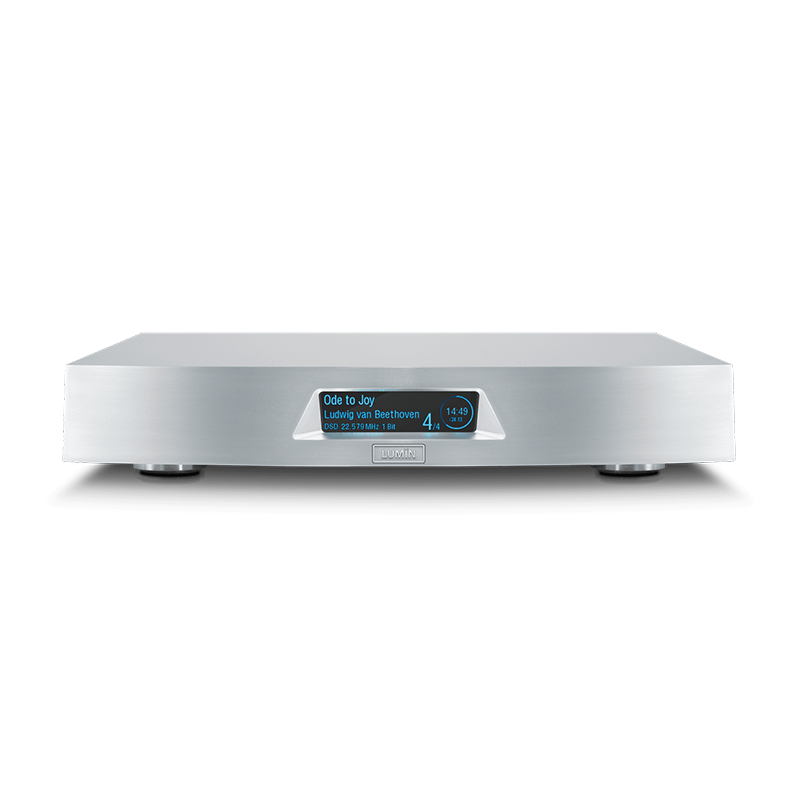

Lumin X1 Streamer
Lumin X1 Streamer
Lumin X1 Streamer
Lumin X1 Streamer
Lumin X1 Streamer

Lumin X1 Streamer

$21,500.00
Tax included. Shipping calculated at checkout.

Why LUMIN X1?

The Lumin flagship music player and its unique separate power supply are cut from solid aluminium billet for maximum rigidity and isolation performance.

LUMIN X1 became the world’s first network music player to feature optical fibre networking to provide complete isolation from network digital noise.

Flagship engineering throughout

  • Solid billet CNC chassis for maximum stiffness and isolation
  • External solid billet CNC dual-toroidal linear PSU
  • Dual ES9038PRO SABRE DACs featuring 140dB dynamic range
  • Native DSD512 & PCM768 playback
  • Dual mono design throughout maximises channel separation
  • Femto clock system with precision FPGA distribution
  • Our finest output buffer design
  • Dual mono dual stage linear regulator
  • Fibre network for complete isolation from network digital noise
  • USB digital audio output supports native DSD512

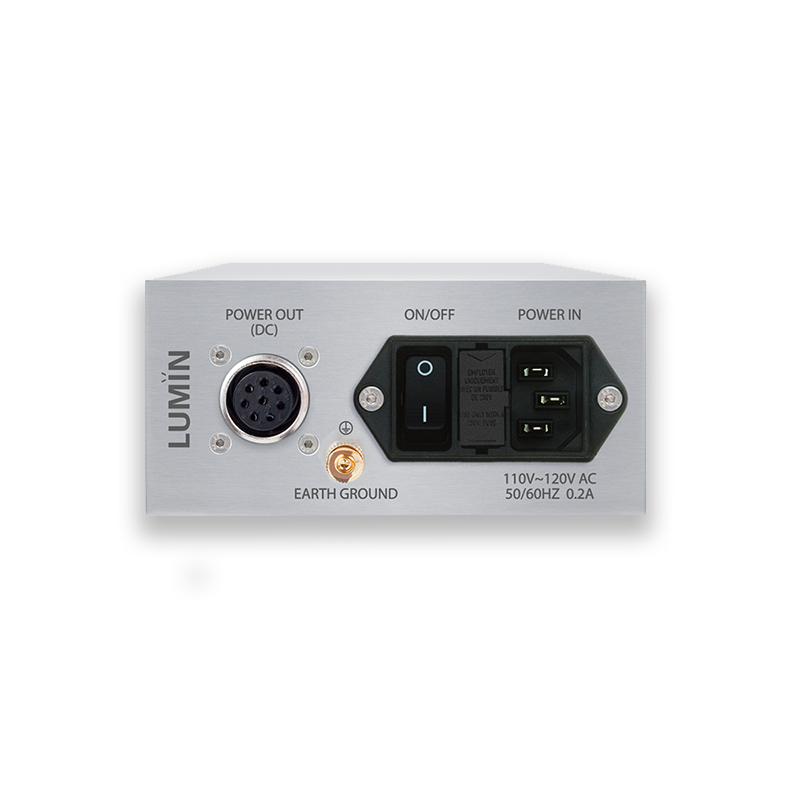

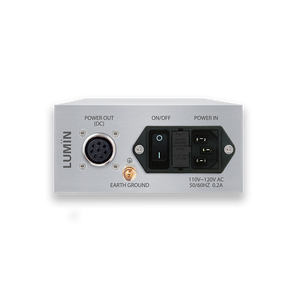

External dual-toroidal linear power supply

  • Solid billet construction using all the same techniques as the main chassis
  • Thick aluminium walls provide even more shielding
  • Separate digital and analogue circuitry
  • Low-noise Linear Regulator
  • The highest quality components used throughout
  • Available as an upgrade for existing S1 / A1 / U1 / T1 customers

All the usual LUMIN refinements

  • From MQA to DSD, FLAC to WAV, LUMIN can play all the high-resolution formats you could ever want
  • Native support for TIDAL, Qobuz, Spotify and AirPlay-compatible, giving you access to tens of millions of songs
  • The unique and intuitive LUMIN App described as "the most convenient interface in existence" by TINMAN
  • LUMIN programme of continuous development that has seen Roon, MQA, and Spotify support added in 2017 alone.

Advanced streaming services & technologies

Every LUMIN player comes with support for a wide range of popular streaming services including Roon, TIDAL, TIDAL Connect, Qobuz, Spotify,  QQMusic, FLAC Radio Stations and more...

X1 Specification

  • DSD Support:

    • Up to DSD512 22.6MHz, 1-bit

  • PCM Support:

    • Up to 768kHz, 16–32-bit, Stereo

  • Analog Output Stage:

    • Dual ESS SABRE32 ES9038Pro DAC chips
    • Fully balanced layout with high-quality components
    • Output connectors coupled with dual LUNDAHL LL7401 output transformers
    • Femto Clock System with precision FPGA distribution

  • Upsampling rates & bit depths:

    • DSD128 upsampling option for all files
    • PCM 384kHz upsampling option for all files

  • Digital Output Stage:

    • USB:
      • Native DSD512 support
      • PCM 44.1–768kHz, 16–32-bit, Stereo
    • BNC SPDIF:
      • PCM 44.1kHz–192kHz, 16–24-bit
      • DSD (DoP, DSD over PCM) 2.8MHz, 1-bit

  • Optical Network:

    • Industry-standard Gigabit SFP
    • 1000Base-T Gigabit Ethernet
    • Adapter may be needed for your particular switch/cables
    • Use simultaneously with RJ45 (e.g. connect one to router and one to LUMIN L1 or NAS)

  • Power Supply:

    • External solid billet cnc dual-toroidal
    • Separate digital & analogue circuitry
    • Low-noise linear regulator
    • 9-pin Output Connector

  • Physical:

    • Finish:

      • Black anodised aluminium (with matching PSU)
      • Raw anodised aluminium (with matching PSU)

      Lumin (solid aluminium chassis):

      • 350mm (W), 345mm (D), 60mm (H), 8kg

    • PSU (solid aluminium chassis):

      • 106mm (W), 334mm (D), 60mm (H), 4kg



SPECIFICATIONS

  • Features our latest processing system
  • Dual ES9028Pro SABRE DAC featuring dual-mono operation
  • New integrated toroidal linear power supply
  • Fibre Network provides complete isolation from network digital noise
  • Dual-Network interface with built-in Network Switch
  • Dual USB ports for additional flexibility and digital audio output
  • Upsampling and downsampling to every supported format up to DSD256/PCM384
  • Leedh Processing Volume control
  • Roon Ready, Spotify Connect, MQA, TIDAL, TIDAL Connect, Qobuz, TuneIn and AirPlay-compatible

  • New upgraded components

    Internal ultra-low-noise linear power supply
  • First LUMIN T-series player with a built in linear power supply
  • Ultra-low-noise and high dynamic range
  • Extra large toroidal transformer
  • Dual Network with Optical Fibre Network support
  • Fibre SFP provides complete isolation from network noise
  • Use simultaneously with RJ45 as a network switch (e.g. connect one to router and one to LUMIN L1/L2 or NAS)

  • The latest LUMIN processing system

  • The now-proven LUMIN hardware and software system provides all the power needed for the latest streaming technologies.
  • Superior processing power and storage capacity provide greater resampling flexibility and future-proofing.

  • The latest LUMIN processing system

  • The now-proven LUMIN hardware and software system provides all the power needed for the latest streaming technologies.
  • Superior processing power and storage capacity provide greater resampling flexibility and future-proofing.

  • CNC chassis construction

  • The thick CNC panelled construction offers upgraded structural rigidity and sheilding compared to the D3
  • CNC milling techniques from LUMIN X1 provide the high-end LUMIN family aesthetic

  • Upgraded version of the award-winning LUMIN T3

    Following the incredible reviews of LUMIN T3, We've now combined it with some of the best features from the rest of our range to make it one of the best value LUMIN Players ever!

    T3X features the toroidal linear power supply from the U2, the fibre networking of our flagship players and adds an extra USB port for even more flexibility.

  • All the usual LUMIN refinements

  • From MQA to DSD, FLAC to WAV, LUMIN can play all the high-resolution formats you could ever want
  • Native support for TIDAL, Qobuz, Spotify and AirPlay-compatible, giving you access to tens of millions of songs
  • The unique and intuitive LUMIN App described as "the most convenient interface in existence" by TINMAN
  • LUMIN programme of continuous development that has seen Roon, MQA, and Spotify support added in 2017 alone.

  • Advanced streaming services & technologies

    Every LUMIN player comes with support for a wide range of popular streaming services including Roon, TIDAL, TIDAL Connect, Qobuz, Spotify, KKBox, QQMusic, FLAC Radio Stations and more...

    DOWNLOAD LUMIN X1 BROCHURE
