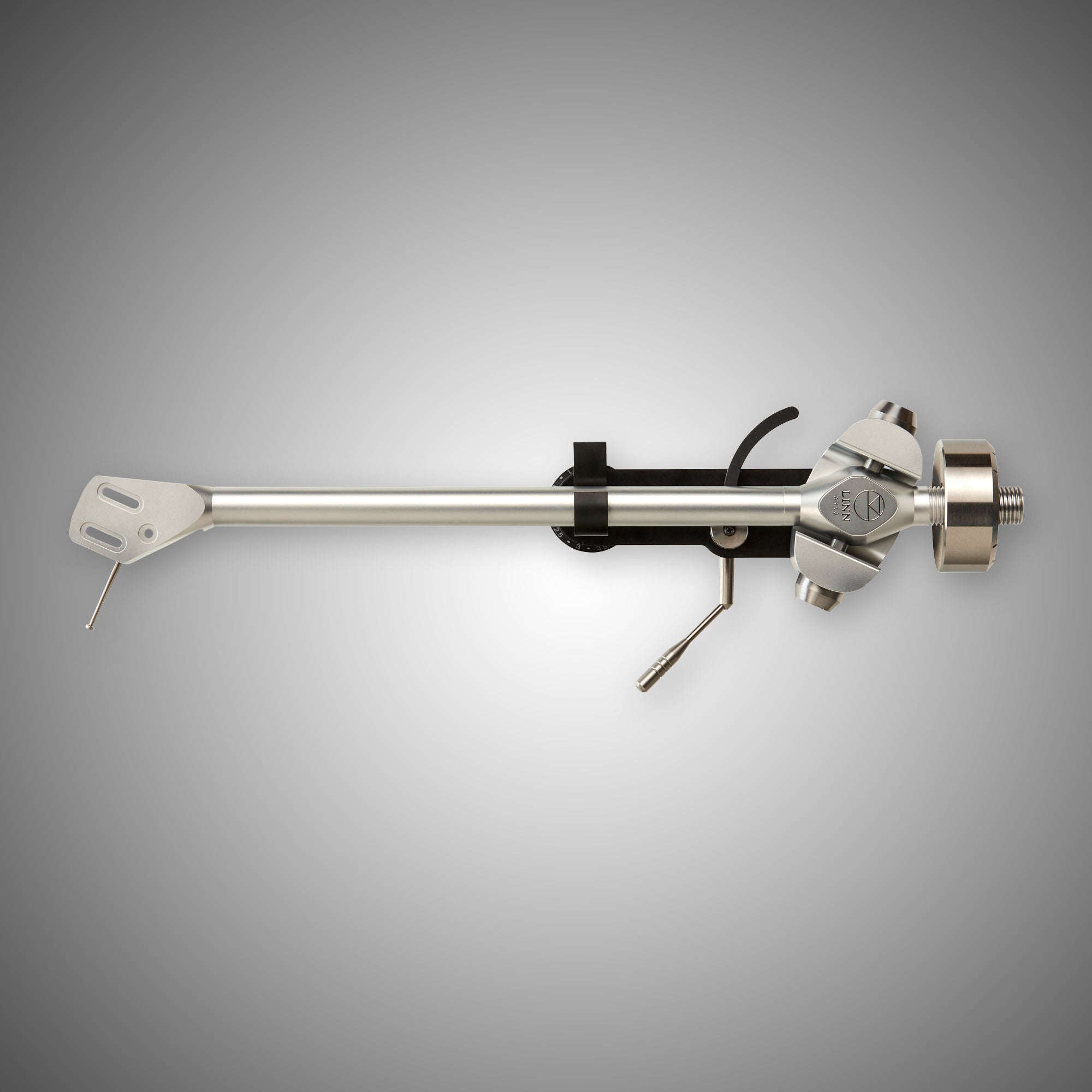

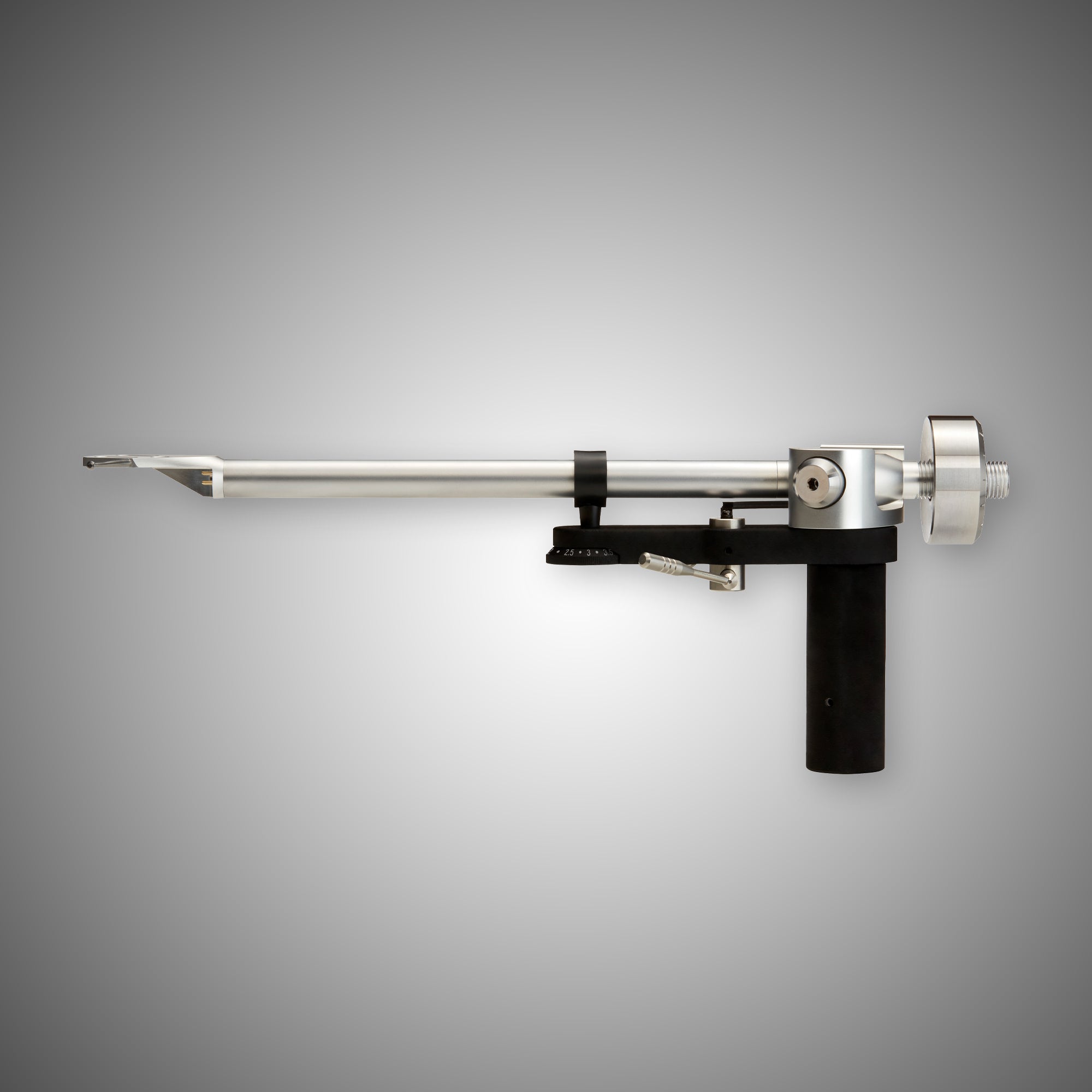

LINN Arko Tonearm

With Arko, Linn have returned to fundamentals, by removing all bar the mission-critical elements of tonearm design, boiling these down to their essence, and then honing what was left to superlative standards. Perfectly poised and rigorously refined, Arko is effortful simplicity.

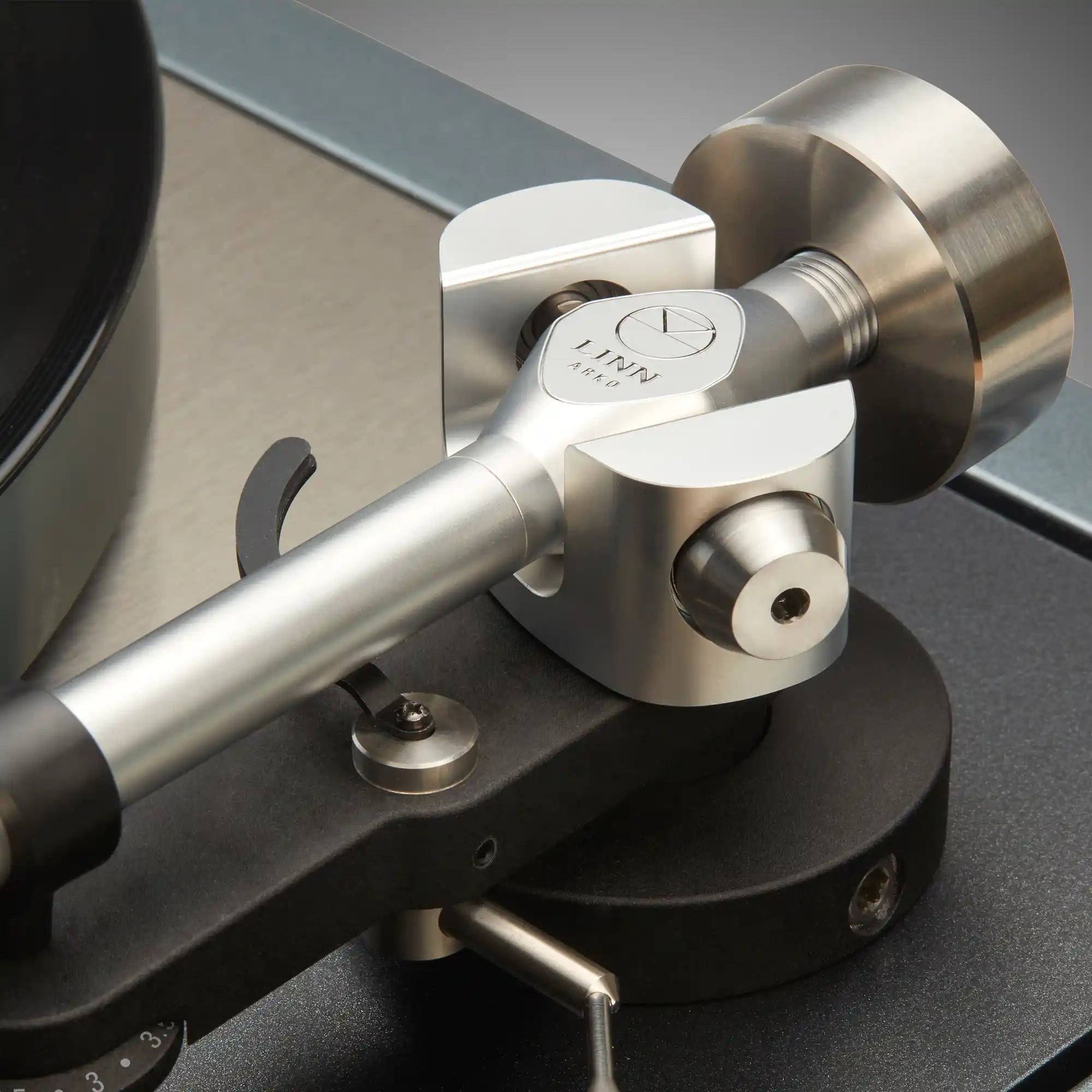

This tonearm features an ultra-stable gimbal platform which facilitates superb bearing concentricity and alignment. Its arm wand travels in space with minimum hindrance; the affixed cartridge bobs and moves with the warps and grooves of the record, with finesse and fluidity.

Special care and effort was taken to ensure that 7075-grade aluminium would be used exclusively throughout the arm wand assembly – from headshell to gimbal – with the resultant material synergy and coupling effectively banishing undesirable resonances away from the delicate generator, and out through the sub-chassis.

Marry Arko to its perfect partner, the aluminium-bodied Kendo moving coil cartridge, and this energy transfer is improved yet further.

Key features

• 7075-grade aluminium used throughout arm wand, to produce superb resonant behaviour
• Machined headshell with weight reduction pockets for increased agility
• Cold-drawn 7075 aluminium arm tube produced to exceedingly high tolerances and accuracy
• Gimballed design results in improved depth, impact, and emotion conveyed
• Machined stainless-steel counterweight decreases arm wand inertia
• Single piece, polished stainless-steel through-spindle for improved alignment and stability

Specifications

Effective Mass: 10g
Tracking Weight Adjustment: 0 - 3g
Cartridge Range: 2 - 10g
Effective Length: 229mm
Overhang: 18mm
Offset Angle: 24˚
Pivot to Spindle Distance: 211mm
