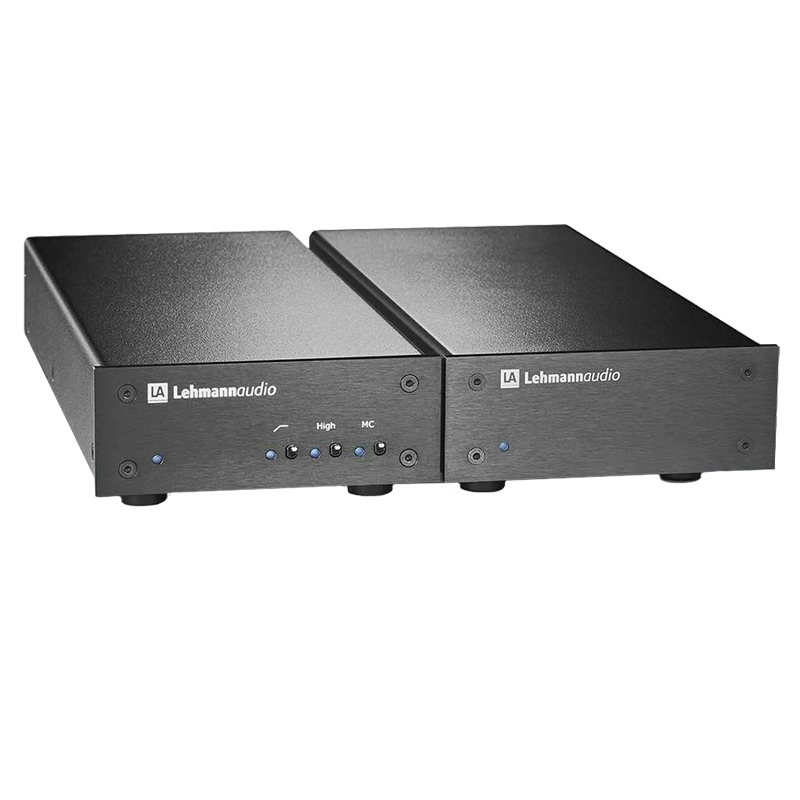

Lehmann Audio DECADE Phono Pre-Amp
An ambitious phono stage that forges a link between the Black Cube series and the top-of-the-line model Silver Cube: this is the Decade. However, it is rather a high flyer than a stopgap. Owing to its cutting-edge technology, it has the gift to spoil even the most demanding music enthusiasts. And this with a flawless sound which points far beyond its price category.
Lehmann Audio DECADE Phono Pre-Amp
It doesn’t matter if you keep playing your favourite LPs time and again or love to discover unknown records, if you are all alone or celebrate your music in an intimate circle – the Decade impresses in every situation with a harmonic performance of passionate temper and precise contours. For this is why they created it: for you and your very personal music fireworks.
Needless to say that Lehmann Audio selected the components for the Decade with utmost care again. Thus, for instance, the employed input stages ensure an amazingly low-noise reproduction. It’s not without reason that they can also be found in very high-grade mixing consoles and microphone preamps from makers of professional studio electronics. The ultra-precision passive RIAA equalisation network lies between two linear gain stages and is realised using low-loss precision MKP capacitors. That way transients, dynamics and sonic timbres will get straight to the listener in a genuine manner.
Of course, with its manifold setting options the Decade, too, is fully custom-tunable to your individual needs. Thus e.g. even exotic MC systems can be connected hassle-free to this outstanding phono stage – the 66 dB maximum gain is definitely sufficient in any case. To give even the most exceptional MC system a matching termination, Lehmann Audio have included a free slot for a custom impedance. Furthermore, you have the possibility to individually adjust the input capacitance values. The discrete class A output stage with its high quiescent current delivers an open, swift sound image and can easily drive longer cables as well.
Black Cube DECADE Specifications |
|||
Sensitivity for output level 775 mV/0 dB (with activated high gain jumper) Gain 1 kHz Maximum input level Signal to noise ratio (RMS unweighted) |
MM: 3.8 mV/1 kHz; MC: 0.38 mV/1 kHz MM: 46 dB; MC: 66 dB MM: 45 mV; MC: 4.5 mV MM: 78 dB; MC: 69 dB |
||
Gain | 36 dB, 46 dB, 56 dB, 66 dB | ||
Channel separation | > 80 dB at 10 kHz | ||
Input impedance |
47 kohms, 1 kohm, 100 ohms 1 x custom load |
||
Output impedance | 5 ohms | ||
Input capacitance | 47 pF to 1,370 pF | ||
Channel mismatch | typ. 0.5 dB | ||
Bass filter | 50 Hz, 6 dB/oct. | ||
Power consumption | app. 13 VA | ||
Outer dimensions |
|
