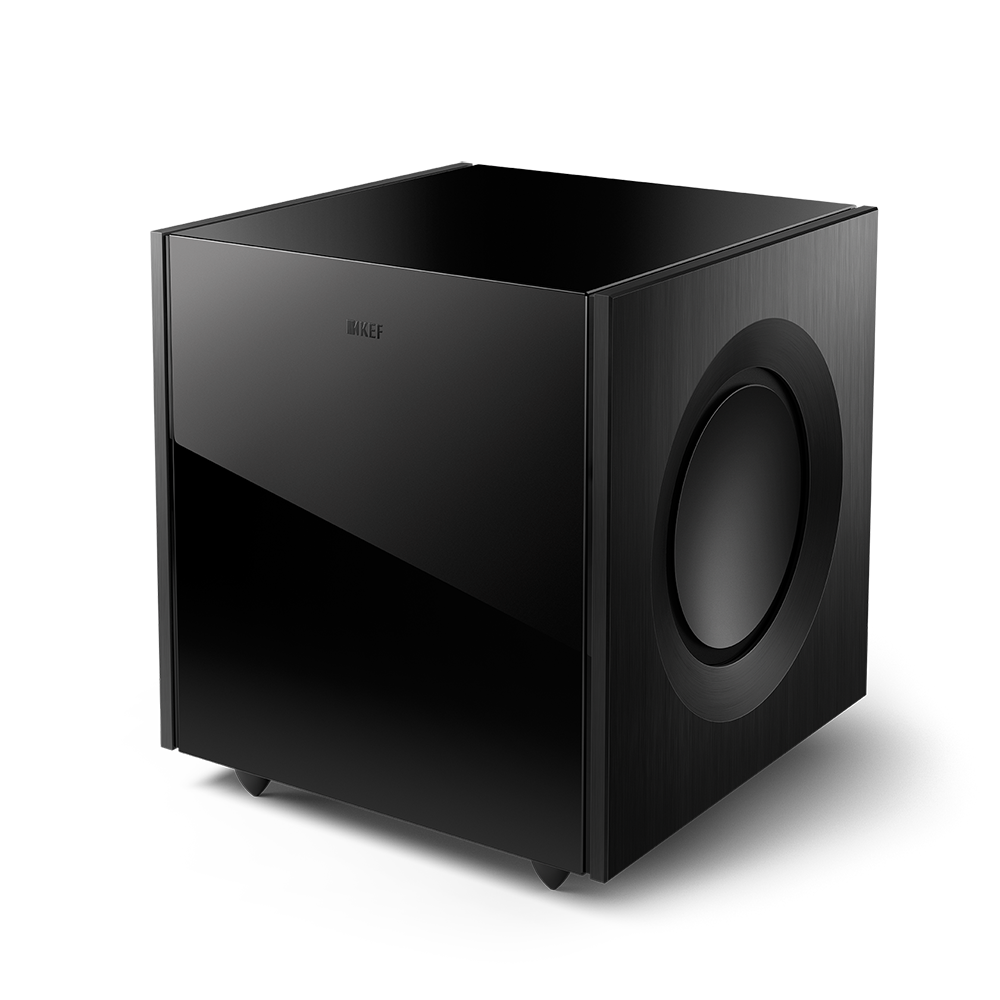

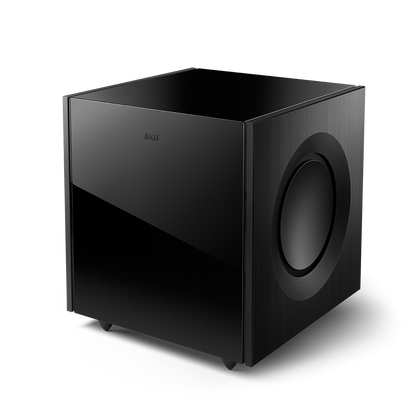

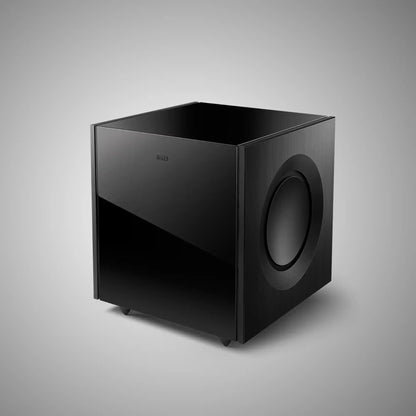

KEF REFERENCE 8b Subwoofer (Angle).png

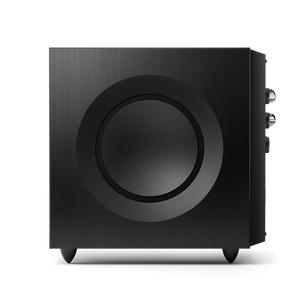

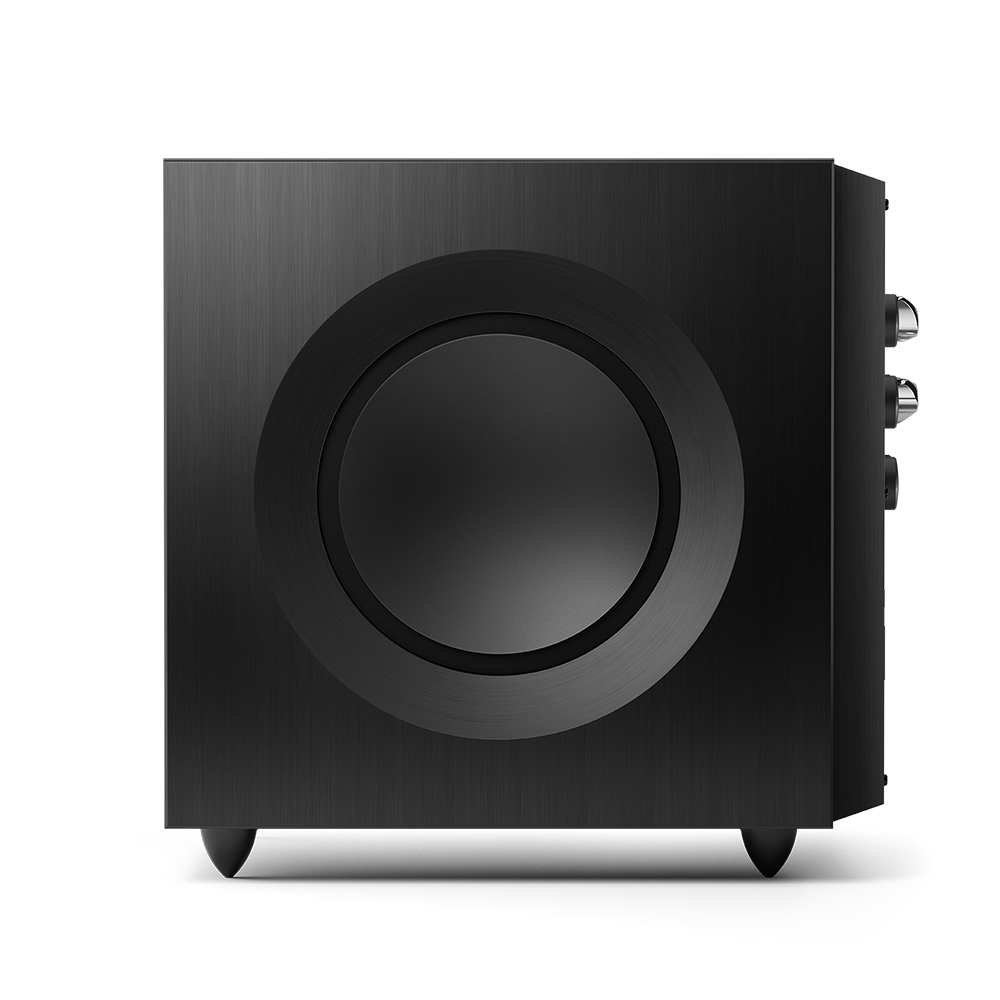

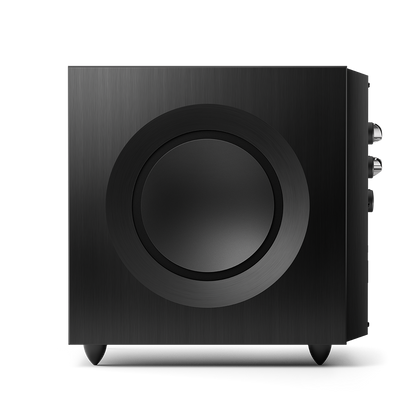

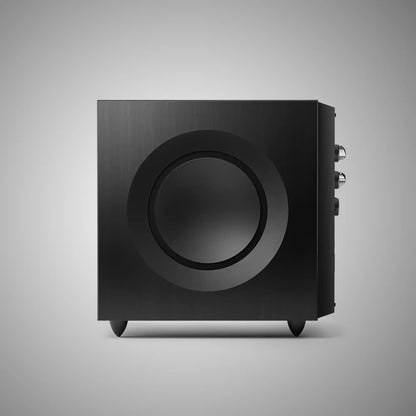

KEF REFERENCE 8b Subwoofer (Right).png

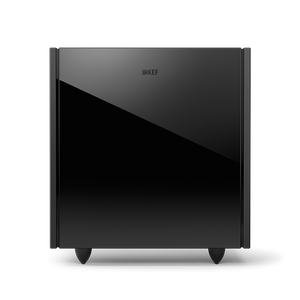

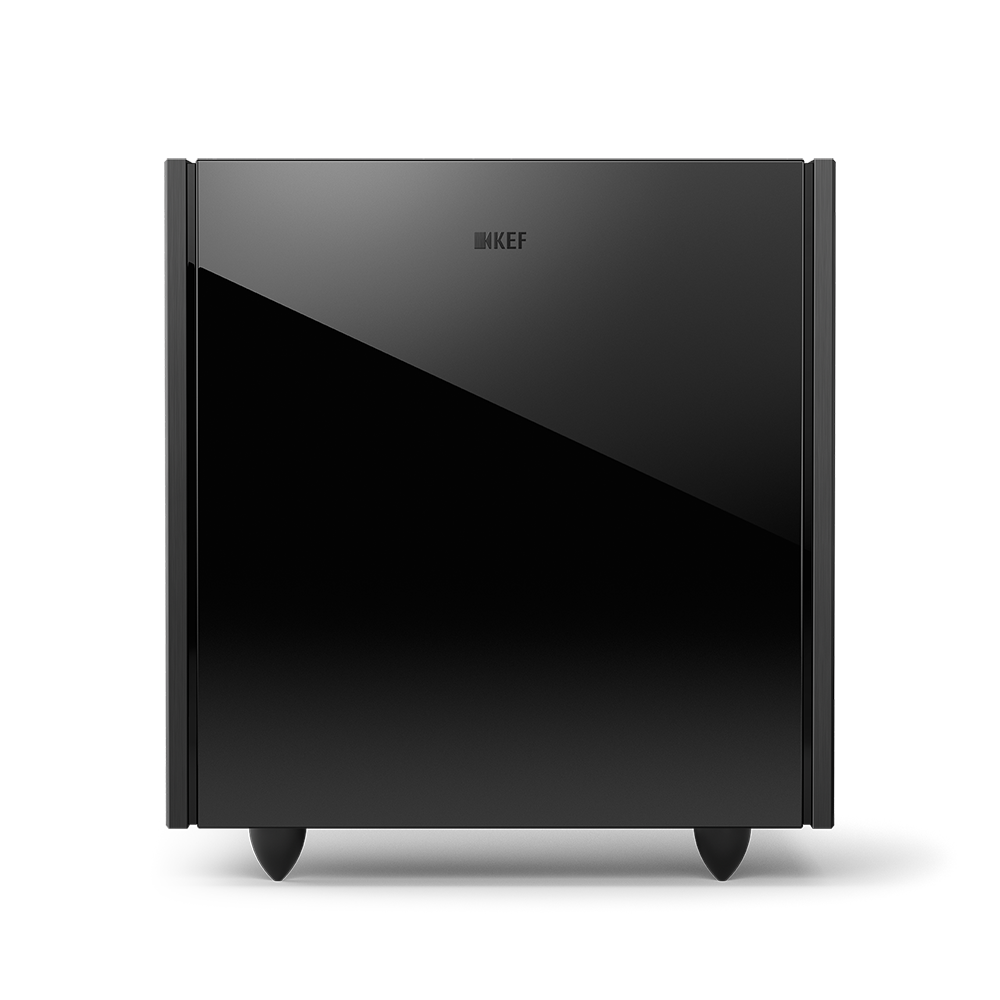

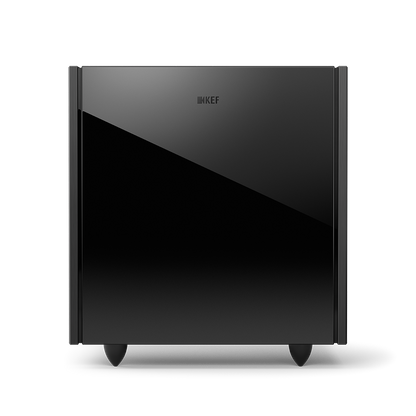

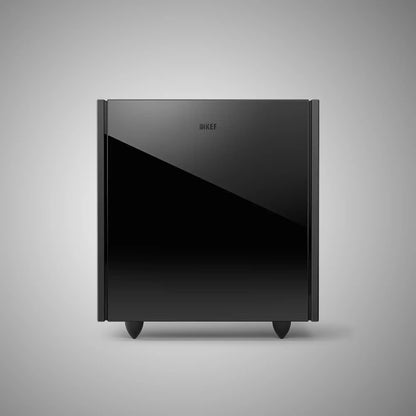

KEF REFERENCE 8b Subwoofer (Front).png

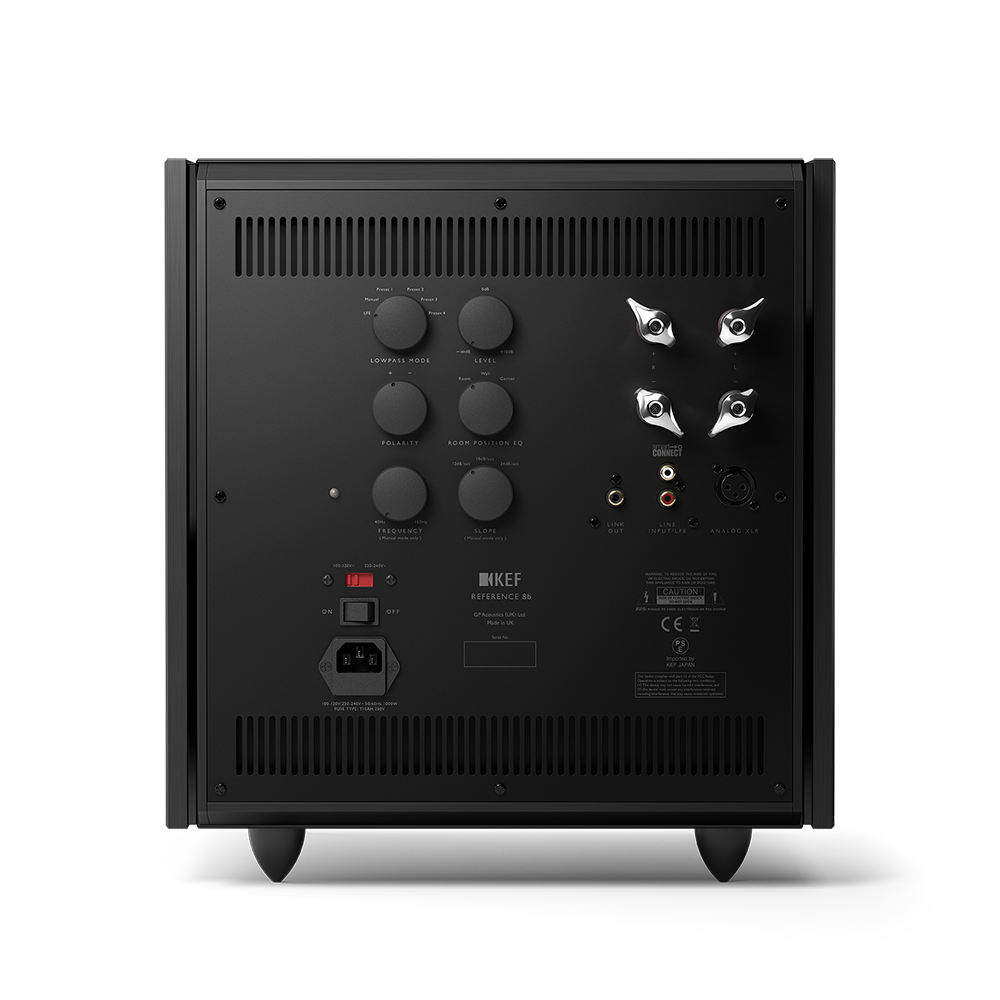

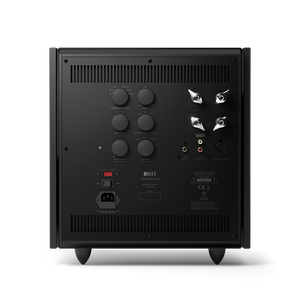

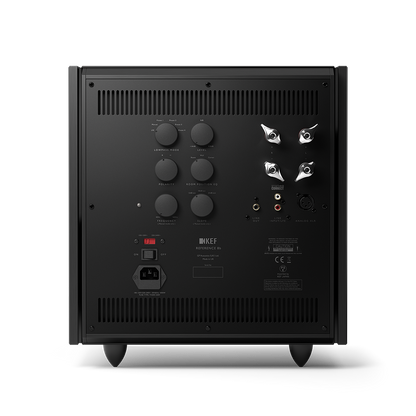

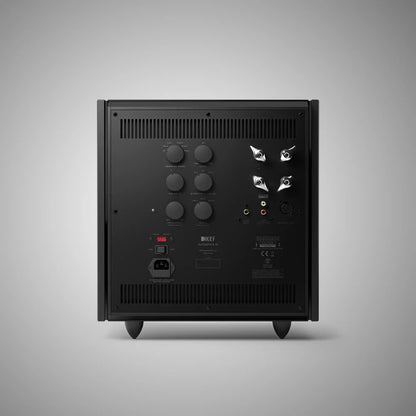

KEF REFERENCE 8b Subwoofer (Rear).png

KEF

KEF Reference 8b Subwoofer

$15,000.00

Delivering exceptional bass precision and control with zero distortion, Reference 8b is a truly extraordinary subwoofer.

For power with accuracy the Reference 8b sub has two 500W Class D amplifiers, each driving a 228mm (9 inch) long-throw, ultra-low distortion driver. These are connected back-to-back in a heavily braced, acoustically inert cabinet. The result is low distortion bass with effortless body and weight.

KEF REFERENCE 8b SUBWOOFER


Specifications

Weight 34kg (75lbs.)
Dimension H x W x D : 398 x 365 x 429 mm (15.7 x 14.4 x 16.8 in.)
Dimension H x W x D : 398 x 365 x 429 mm (15.7 x 14.4 x 16.8 in.)
Unit Measurement Pair
Finishes Deep Piano Black High Gloss
Inputs RCA phono sockets
Analog XLR socket
Speaker level inputs
Frequency Range Free Field: 18Hz (-6dB)
Frequency Response 24Hz at 90dB output in free-space mode (±3dB)
Net Internal Volume 23L
Maximum Output 110dB (peak sound pressure level at 1m 50Hz)
Amplifier Type 2 x 500 W Class D with switched mode power supply and DSP based control section
Drive Units LF 2 x 225 mm (9in.)
Power Requirements 100V - 120V / 220V - 240V ~50/60Hz
Power Consumption 1000W
Link Out RCA phono socket
Variable Low Pass Filter
Variable frequency: 40Hz to 160Hz
Variable slope: 12dB/oct, 18dB/oct, 24dB/oct
LFE mode: 350Hz, 18dB/oct
