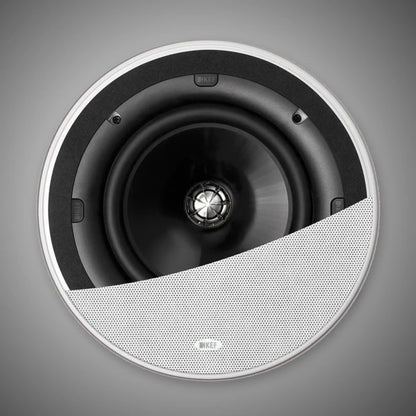

Featuring KEF's sophisticated 'sit anywhere' Uni-Q driver array, which places the tweeter in the acoustic centre of the bass/midrange cone, this allows both the tweeter and woofer to act as a single point source that disperses the sound widely and evenly throughout the room. Together with the discreet Ultra Thin Bezel (UTB) design, offering the slimmest possible visible rim around the speaker, the Ci-Q Series range gives you tremendous freedom to position the speakers where you please.
FEATURES
UTB™ Ultra Thin Bezel
200mm (8.0in.) Uni-Q driver array
25mm (1.0in.) Aluminium dome tweeter and 'tangerine' waveguide

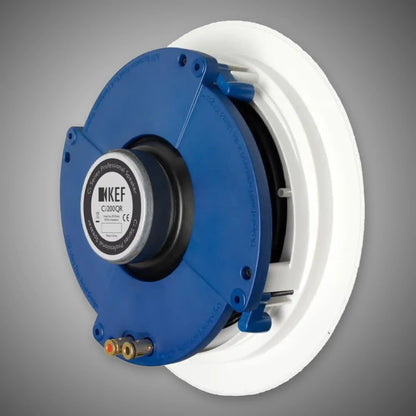

Gold plated spring loaded binding posts
SPECIFICATIONS
Nomimal Impedance: 8 Ohm
Sensitivity: 90dB (2.83V/ 1m)
Frequency Response: 35Hz - 34kHz (+/- 6dB) 2pi/open-backed
Drive Units:
LF: 200mm (8.0in.)
HF: 25mm (1.0in.)
HF: 25mm (1.0in.)
Recommended Amplifier Power: 10 - 150W
Product External Dimension (H X W X D):
Diameter : 289.6mm (11.4in.)
Depth : 109.8mm (4.33in.)
Depth : 109.8mm (4.33in.)
Cut-Out Dimensions (H X W):
Diameter : 240mm (9.45in.)
Mounting Thickness
Ceiling Thickness (Maximum): 37mm (1.46 in.)
Ceiling Thickness (Minimum): 6mm (0.24 in.)
Ceiling Thickness (Minimum): 6mm (0.24 in.)
Mounting Depth From Surface
Product only : 103.3mm (4.07in.)
Net Weight: 2.4 kg (5.28 lbs)
Unit Measurement: Piece
