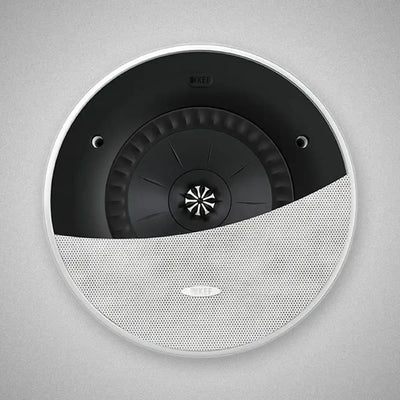

KEF Ci160RR-THX In-Ceiling Speaker - DOUGLAS HIFI

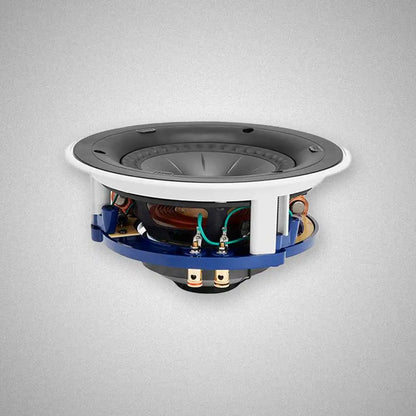

KEF Ci160RR-THX In-Ceiling Speaker (Side) - DOUGLAS HIFI

KEF

KEF Ci160RR-THX In-Ceiling Speaker

$1,100.00

SOLD INDIVIDUALLY

Ci160RR-THX is an ultra-high-performance loudspeaker featuring KEF's signature Uni-Q technology, designed for discreet in-ceiling or in-wall installation. As part of the Ci-R Series and a THX® Certified Ultra architectural loudspeaker, Ci160RR-THX is engineered to maintain exceptional sound quality at high outputs.

KEF Ci160RR-THX In-Ceiling Speaker

Ci160RR-THX’s Uni-Q® array boasts a 25mm high frequency tweeter mounted in the acoustic centre of a 165mm woofer, delivering the same, natural performance across the entire listening area. Plus, a Universal Cut-out system means its opening is the same as any 160mm KEF speaker for ease of installation and component selection.

SPECIFICATIONS

Nominal Impedance: 4Ω
Sensitivity: 90dB (2.83V/1m)
Frequency Response (±6dB) Open-Backed: 52Hz - 24kHz
Frequency Range (-10dB): 38Hz - 30kHz
Nominal Coverage (Degrees): 130
Optional Rough in Frame: RIF160R
Optional Rear Enclosure: NA
Recommended Amplifier Power: 10 - 190W
Recommended High-Pass Filter (Hz): 38Hz
Product External Dimensions (H x W x D): Diameter Ø: 234.6mm (9.24in.); Depth: 115mm (4.53in.)
Cut-Out Dimensions (H x W): Diameter Ø: 196mm (7.71in.)
Mounting Thickness: Ceiling Thickness (Maximum): 37mm (1.46in.); Ceiling Thickness (Minimum): 4mm (0.16in.)
Mounting Depth from Surface: 110mm (4.33in.)
Max SPL (dB): 105
Crossover Frequency: 2.1kHz
Driver Unit:
LF: 165mm (6.5in.) Uni-Q
HF: 25mm (1in.)
Net Weight: 2.94kg (6.48lbs)
Certification: THX ULTRA
Safety and Regulatory Compliance: IP64
