Isotek V5 Sirius 16A 6-way Power Cleaning and Distribution Board (incl. Premier C19)
Isotek have been at the forefront of power conditioning that has brought joy to many audio and video enthusiasts around the globe over many years. The new V5 Sirius is a high current capable (16A) 6-way power board that also offers a step up in both RFI reduction and current surge protection over the V5 Polaris model down from this.
Isotek V5 Sirius 16A Hi-Current 6-way Power Cleaning and Distribution Board
The question we get asked nearly every time...
"Do Power Conditioners really make a difference?"
YES! - we have heard back from nearly everyone that has put good quality power conditioning on their system - they have commented enthusiastically as to how it has improved the sound and their enjoyment of their system. The Sirius suits systems that have high current draw capabilities as it is capable of up to 16A peak current draw (i.e - high power drawing amplifiers or systems with dual sub woofers). Filtering out 60db of RF noise, utilising a Fully star-earthed network internally and 6 independent outlets - the Isotek V5 Sirius represents Isotek's best value Hi-current capable 6-way power board.
The All New V5 Sirius
The new V5 Sirius is an ultra-high performance 16A power bar, harnessing IsoTek’s latest mains power cleaning technology, which both protects and improves your audio system's performance.

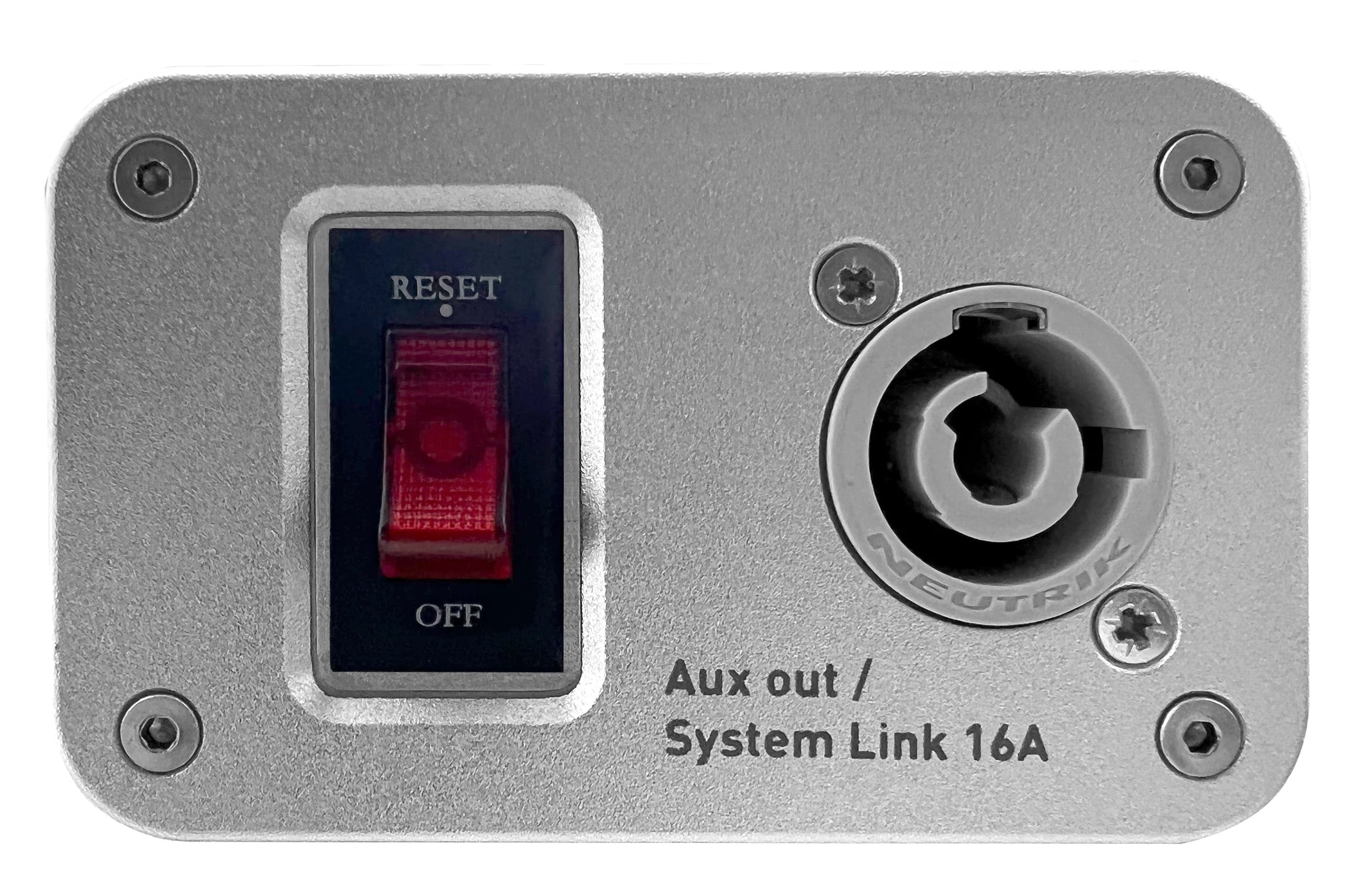

If more power output sockets are required a unique IsoTek ‘System Link’ connector is provided, this allows you to connect multiple IsoTek units together whilst maintaining star-earth.
A New Standard for Power Cleaning Boards
Each output socket of the V5 Sirius is individually wired, with no two being connected, each referencing back to the central power cleaning network, ideal for the reduction and elimination of Differential Mode mains noise cross contamination. IsoTek’s unique ‘System Link’ additional output connector allows you to connect multiple IsoTek units together.
The V5 Sirius features a greatly enhanced high power shunt filter network delivering -23dB mains noise reduction at 10 kHz, -40dB at 100 kHz and -60dB at 1 MHz. A unique high grade, high amperage mains noise choke based system is combined with a high frequency delta filter network to eliminate both Common Mode and Differential Mode mains noise across a wide frequency range.
V5 Sirius features KERP (Kirchoff’s Equal Resistance Path) which ensures equal resistance and equal power delivery to all outlets. The internal wiring is unique and specifically designed to offer the highest standards of power delivery. Pure 6n oxygen-free copper conductor strands with silver-plating are designed to offer low resistance and high amperage. An FEP dielectric is then used to protect the conductors offering a low dielectric constance.
Instantaneous Protection
54,000 Amps instantaneous yet transient protection enhances sound quality for connected components as well as protecting them from dangerous power surges and voltage spikes. The easy resettable fusing system offers a substantial upgrade over a standard ordinary fuse due to increased contact area.
PLEASE NOTE: A special, easy to install wall bracket system is provided which allows you to mount the V5 Sirius discretely behind your audio system if required.
Features
- Suitable for all audio, AV
- RFI reduction up to 60dB
- Central clean power network removes Common and Differential Mode mains noise
- 6 independent outlets stop Differential Mode cross contamination (16A)
- 54,000A instantaneous protection
- Fully star-earthed network
- Multi-strand 6n OFC silver-plated internal wiring with FEP dielectric
- Easy reset fusing system
- Wall mounting bracket kit included
- System Link outlet for extending the outlets and maintaining a starred earth reference

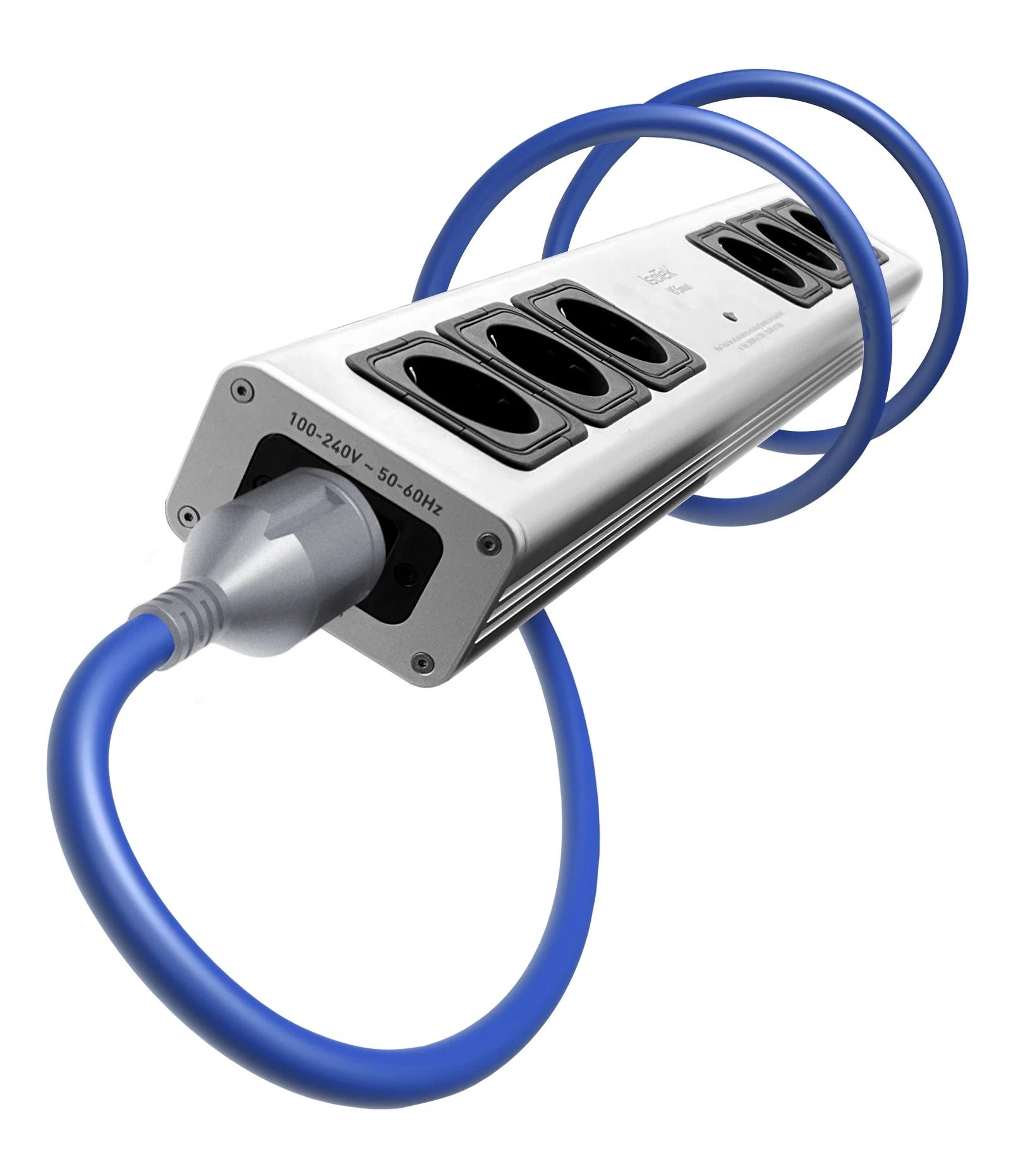

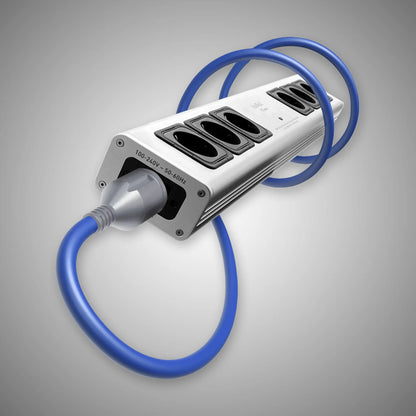

- Supplied with IsoTek EVO3 PREMIER POWER CABLE
