HEGEL D50 Reference DAC

The Hegel D50 Reference DAC offers high-quality audio performance, thanks to its advanced technology and components. It provides a more engaging and immersive listening experience, with clear and accurate sound reproduction. With this reference DAC, you can elevate your audio setup and enjoy music the way it was intended to be heard.

Hegel D50 Reference DAC

At first glance, the D50 appears understated, with its minimalist black design. No flashy details or unnecessary features distract from its purpose. Like the raven, it may seem plain, but this DAC is a master of its craft. Beneath the sleek exterior lies a remarkable ability to decode and deliver digital audio with breathtaking precision. The D50 unveils a soundstage so expansive it feels as though you're soaring high above the music, revealing every intricate detail with stunning clarity. Whether you choose to focus on the smallest nuances or simply let the music carry you, the D50 offers an unparalleled listening experience.

Hegel has been perfecting the art of DAC design for more than two decades, and the D50 represents the pinnacle of that expertise. At its core lies the latest model DAC chip - a sophisticated tool with immense potential. But like the raven, one of the few animals capable of using tools with precision, the D50's genius lies in how it wields this technology. Every detail of the circuit design and layout has been meticulously crafted to extract the full potential of the DAC chip, transforming it from a mere component into a masterful instrument. The result is a design that uses this tool to its fullest, unlocking extraordinary sound reproduction.

The D50 takes extraordinary measures to ensure the purity of its sound reproduction. Its power management is designed to silence noise and deliver clean energy to every part of the device. Advanced filters on the power input eliminate noise from the mains, and when connected to a grounded power outlet, this filtering can even enhance the performance of other equipment in the same circuit. To eliminate electrical noise even further, the D50 employs two low-noise toroidal transformers. One delivers power to the noisier digital processes and standby functionality while the other is dedicated to the sensitive analog and digital components. Both transformers are shielded by thick steel and placed far from any sensitive electronics and their output is also filtered, ensuring the D50 operates with the purest power, allowing its performance to take flight.

At Hegel, we approach circuit board design with meticulous attention to detail, ensuring the best possible performance. In the D50, even the routing features rounded corners to minimize impedance drops and reduce radiation, reflecting our commitment to precision. However, the real innovation lies in how the D50 processes incoming digital signals before converting them to analog. The AES/EBU input features a unique RS422 receiver balanced by a transformer, allowing it to handle both weak and strong signals flawlessly, free of jitter and time delays.

For SPDIF-based inputs, signals are received on a custom-designed card that unpacks the I2S data. While this process is inherently noisy and prone to timing errors, the D50 addresses these issues with precision. The decoded signals are reclocked using three dedicated master clocks: one for SPDIF signals, and for USB, separate master clocks for 48k and 44.1k sample rates. Strategically placed to minimize noise, these clocks deliver a perfectly timed signal to the DAC chip, enabling the purest and most accurate digital-to-analog conversion.

The DAC chip itself is thoughtfully perched on a separate board above the rest of the electronics. This elevated placement reduces noise and interference while providing short and unobstructed signal paths. With the D50, every aspect of the design has been carefully engineered to ensure that the signal remains as true to the original as possible. The result is an unaltered and breathtakingly accurate translation from digital to analog.

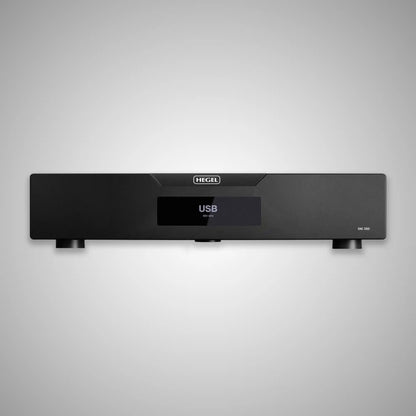

The D50's construction is as solid as it is purposeful. Its aluminium housing provides both durability and a refined appearance and improves sound performance. Premium connectors ensure reliable performance, while aluminium feet with rubber soles guarantee stability. The thick, milled aluminium front plate conceals the buttons for an unbroken, elegant facade. Meanwhile, a bright, easy-to-read display delivers all the information you need without drawing attention away from the music.

Though the D50 operates with the precision of a masterful instrument, using it is effortless. Its advanced input sensing can detect a digital signal and wake the device automatically. You can customize how it responds to new signals, whether to switch inputs or simply power on. Features like automatic standby save energy when the music stops, while a display dimming option keeps the focus where it belongs - on the music. Once set up, the D50 becomes a seamless part of your system, ready to bring your music to life with no distractions.

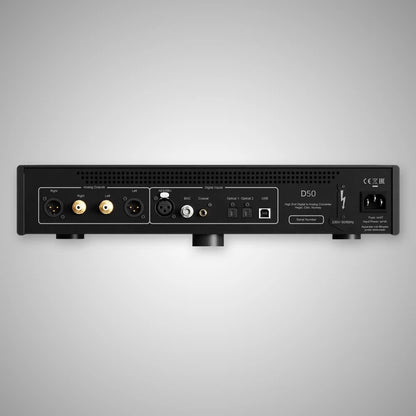

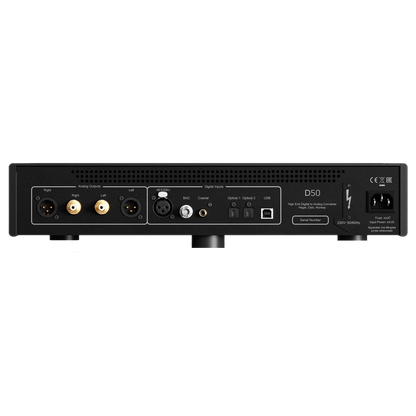

The D50 offers every connection you might need, accommodating USB, optical, coaxial RCA, coaxial BNC, and AES/EBU inputs. On the output side, it features true balanced analog and single-ended RCA connections, giving you the flexibility to suit any system. The D50's versatile inputs and outputs make it a perfect fit for any audio environment.

HEGEL D50 SPECIFICATIONS

Digital inputs: 1 x AES/EBU S/PDIF, 24/192, DSD64(DoP), MQA 8x, 1 x Coaxial (BNC) S/PDIF, 24/192, DSD64(DoP), MQA 8x, 1 x Coaxial (RCA) S/PDIF, 24/192, DSD64(DoP), MQA 8x, 2 x Optical S/PDIF, 24/96, MQA 8x, 1 x USB 32/384, DSD256(DoP), MQA 8x
Line level outputs: 1 x Unbalanced fixed (RCA), 2.5 V, 1 x Balanced fixed (XLR), 2.5 V
Analog bandwidth: More than 0 Hz - 100 kHz
Signal-to-noise ratio: More than 100 dB
Noise floor: Typically -150 dB
Distortion: Less than 0.0002 %
Power use in standby: Less than 0.5 W
Power use when on: Less than 20 W
Dimensions/weight: 43 x 30.5 x 9.9 cm (WxDxH), 6.6 kg
Dimensions/weight US: 17 x 12 x 3.9" (WxDxH), 14.55 lbs
