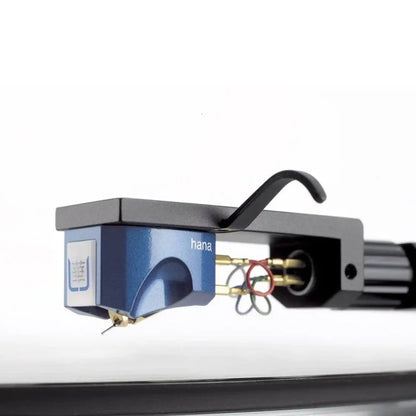

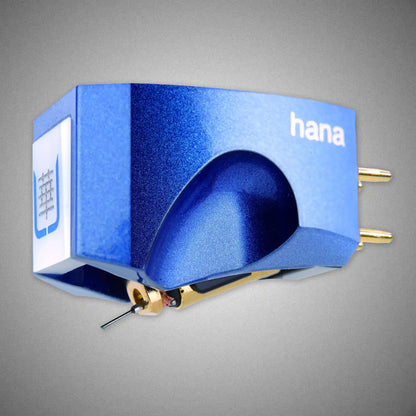

HANA Umami Blue Moving Coil Cartridge
Pairs well with
The HANA-Umami Blue high-end moving coil cartridge combines the vision of Master cartridge designer Okada-san with the history of unique materials, classic Japanese techniques, and modern audio engineering.
HANA Umami Blue Moving Coil Cartridge
The Auricle™ body design, unique and exclusive to our Umami series, is CNC machined from Duralumin. Sharing key Umami Red ingredients, including the precision-cut diamond stylus, Boron cantilever, and high-purity copper wires, then combining these with the Alnico magnet-based generator found in the famous Hana ML, creates the exceptionally musical Umami Blue.
This synergistic relationship in MC cartridge design between specific materials, unique body design, a sophisticated generator, and hand-built precision is critical for outstanding cartridge performance. This creates a memorable and emotional experience, reminiscent of a meal at a Michelin 3-star restaurant, with every element and detail working in concert.
All the major parts in a HANA-Umami Blue are manufactured in-house by Excel Sound with its rich history spanning over 50 years. Excel’s highly trained craftsmen skillfully hand assemble the HANA-Umami Blue ensuring an intensely musical experience furthering the HANA “Brilliant and Gorgeous” sound quality.
SPECIFICATIONS
Body Material: Duralumin (A7075), Melamine Thermosetting Process (MTP)
Cantilever: Boron
Stylus: Microline Nude Diamond
Armature Material: Permalloy Armature
Shape: Cross Plate
Parts Material: Pure Iron
Magnet: Alnico (Al-Ni-Co)
Terminal Plate: PEEK (Polyether Ether Ketone)
Terminal Pin: 24K Gold Plated
Output Voltage: 0.4mV (at 1kHz)
Coil Impedance: 8 Ω/1KHz
Output: 0.4mv/1KHz
Coil Wire Material: High Purity Copper
Terminating Impedance: > 80 Ω
Cryo-genic
Treatment: Front York, Rear Yoke Pole Piece, Terminal Pins
Frequency Response: 15 - 50,000Hz
Output Balance: 0.5dB/1KHz
Channel Separation: 30dB/1KHz
Tracking Force Weight: 2g
Trackability: 70μm/2gr.
Dynamic Compliance: 10 x 10(-6) cm/dyne (100Hz)
Estimated: 17 x 10(-6) cm/dyne (10Hz)
Cartridge Weight: 10.8g
