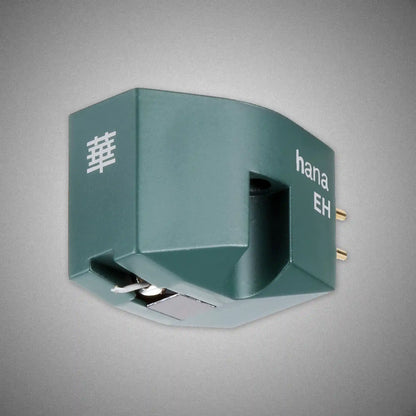

HANA EH Moving Coil Cartridge
Pairs well with
The Hana EH high-output moving coil cartridge represents the best way to upgrade from “starter” MM cartridges that typically come packaged with most entry-level turntables.
HANA EH Moving Coil Cartridge
Weighing in at only 5 grams, and possessing great tracking ability, the Hana EH cartridge’s distinctive moss-green body houses a special cross-coil generator, reproducing great bass and dynamics. The elliptical stylus mounted to an aluminum cantilever easily extracts the music in the groove as it effortlessly traces your LPs.
The EH is plug-and-play compatible with MM phono stages found in integrated amplifiers and AV receivers.
SPECIFICATIONS
| Stylus | Synthetic Elliptical |
|---|---|
| Cantilever | Aluminum |
| Output Level | 2mv/1kHz |
| Output Balance | <2dB/1 KHz |
| Vertical Tracking Force | 2g |
| Trackability | 70 µm/2g |
| Channel Separation | 25dB/1kHz |
| Frequency Response | 15-25,000Hz |
| Impedance | 130Ω/1kHz |
| Suggested Load Impedance | >47kΩ |
| Cartridge Weight | 5g |
| Body Color | Moss Green |
| Warranty | 2 years |
