Gold Note PSU-10 (optional Power Supply) and PH-10 (Phono Stage) (Black) | Douglas HiFi
Gold Note PSU-10 (Silver) | Douglas HiFi

Gold Note PSU-10 (Optional Add On Power Supply) for Gold Note PH-10 Phono Stage

Regular price $1,880.00
Unit price  per
Tax included. Shipping calculated at checkout.

Gold Note PSU-10 (Optional Add On Power Supply) for Gold Note PH-10 Phono Stage

*** The PSU-10 is an optional addition to the GoldNote PH-10 Phono Stage **

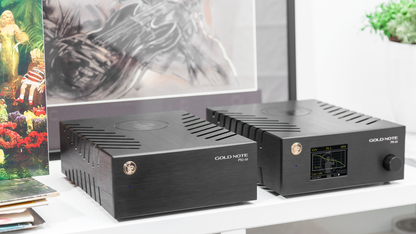

The Italian made GoldNote PH-10 phono pre-amp has wowed both reviewers and listeners around the world with a great combination of amazing sound and utmost flexibility of inputs/outputs and settings. The Gold Note PSU-10 is an optional addition to the PH-10 and it elevates the standard of vinyl reproduction up several notches. The PSU-10 lowers the noise floor and increases dynamics and sound stage performance to new levels. Machined out of the same anti resonant laser cut metal chassis the PSU-10 matches the PH-10 perfectly in looks too.

“The addition of the PSU-10 lifts the PH-10 into another league instantly. We loved what we heard and are convinced that anyone who experiences the PH-10/PSU-10 will fall in love too.”
— Marja&Henk

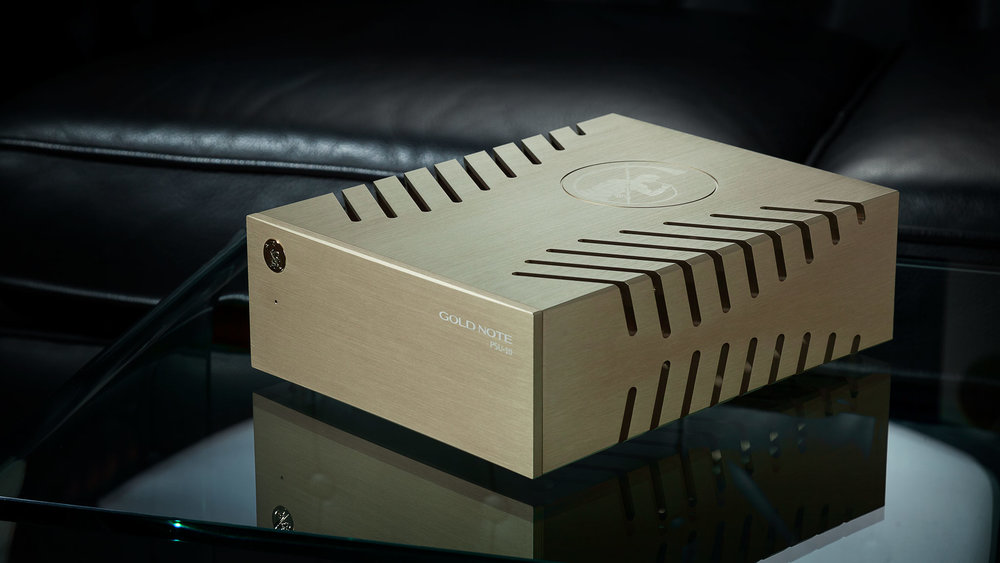

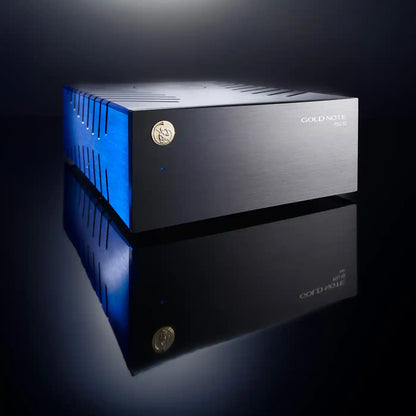

 The PSU-10 is a super inductive power supply exclusively designed for the PH-10 phono stage.
 Engineered with the best quality audio-grade components PSU-10 features a dual choke design powered by a double inductor driving the negative and positive high current stages and featuring and inductive filter on the analogue stage.
 The Gold Note proprietary Dual Chokes Design perfectly filters the signal voltages in order to eliminate all the possible electrical noise coming from the AC power system.

The PSU-10 uses its massive power supply to shield the PH-10 phono stage from electro-magnetic interferences thus insulating it effectively from the AC power system. The large, ultra-clean power enhances super low noise, greater dynamic, better resolution and finer details for a more realistic high-end audio performance and pure audio pleasure.

PSU-10 is able to help PH-10 extracting every single detail guaranteeing the best dynamic, resolution and realism music experience listening to vinyl.

The PSU-10 can deliver high quality power using four transformers three of which are dedicated exclusively to the pure power supply and with one separated transformer dedicated to the inductive filter.

Technical Specifications

  • Four rail audio grade power supply
  • Four ultra low noise voltage regulator
  • +12V, +5V for logic
  • +/- 14V for analog with inductive noise remover
  • Line regulation for all output 0,05 %/V
  • Load regulation for all output 0,05 %Vu
  • Line noise rejection >80dB
  • Common mode noise rejection >80dB
  • 220mm L | 80mm A | 260mm
  • 3 Kg
