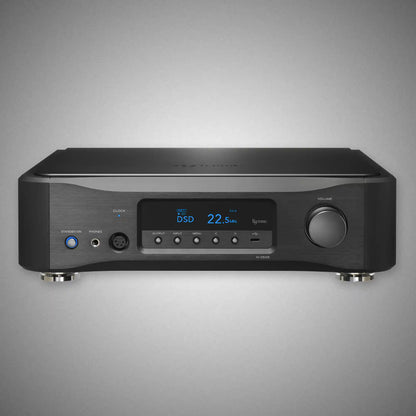

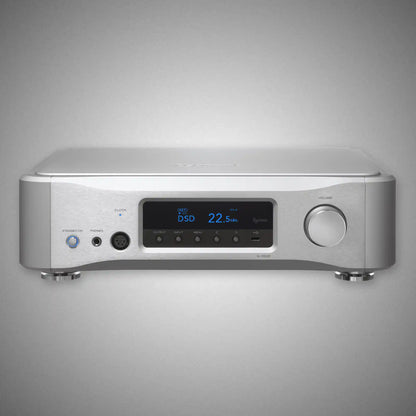

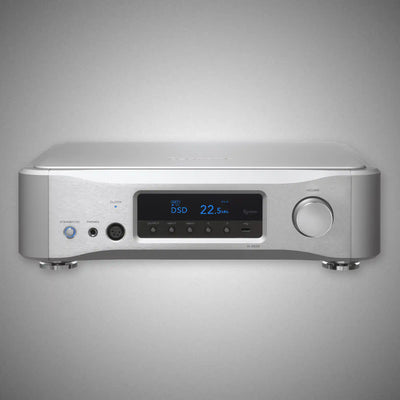

ESOTERIC N-05XE - Streaming DAC/Preamplifier

The preamplifier forms the core of the system and defines the essence of its sound. The Grandioso's high fidelity and musical expression embody Esoteric's philosophy and technology. These qualities have been passed down to the N-05XE, which inherits its lineage. The acclaimed dual mono, dual balanced configuration delivers dynamic yet delicate sound, capturing the performer's sensibility.

A Total of 8 Circuits for L/R, Hot/Cold

The N-05XE uses an attenuator circuit with a high-fidelity, dual-mono, dual-balanced configuration. This configuration comprises eight independent circuits that separately handle left and right channels, as well as positive and negative signal paths. This configuration achieves clear sound quality with excellent channel separation and phase accuracy. In the XE model, the attenuator's power supply section is completely independent from the other power circuits, which further refines the purity of reproduction.

High-Precision Ball Bearing Volume Control Knob

Providing ultra-smooth analog operating feel, the N-05XE’s volume control utilizes the same Ball-Bearing support mechanism used in Esoteric’s flagship Grandioso line. The volume knob itself is precision-machined from solid aluminum, ensuring exceptional tactile quality and mechanical precision.

Unique Esoteric-HCLD Output Buffer Circuitry

The N-05XE’s Esoteric-HCLD (High Current Line Driver) circuit was developed in pursuit of ultimate current transmission capacity and speed, two factors that are critical to achieving uncompromised analog output performance. The buffer’s high-speed element features an exceptional slew rate, or response speed, of 2,000 V/μs, enabling the reproduction of musical dynamics with breathtaking realism.

ES-Link Analog – Esoteric's Proprietary Current Signal Transmission Technology

The N-05XE features Esoteric's "ES-Link Analog" input/output transmission method. This method leverages the high performance of the HCLD buffer circuit, which is renowned for its powerful current supply capability. ES-Link Analog minimizes the influence of signal path impedance, enabling pure, powerful signal transmission and playback brimming with realism, as if you were directly monitoring from an analog console in a recording studio.
In the XE model, a newly added ES-Link Analog input allows direct connection to compatible Esoteric components such as the K-05XD, an integrated Super Audio CD player with DAC functionality and the E-02, a dedicated high-performance phono preamplifier.

Dual-Mono Parallel Single-Ended Headphone Amplifier

Experience high-end headphone listening in your own space. The N-05XE features a newly developed dual-mono, parallel single-ended headphone amplifier. Esoteric’s accumulated expertise in analog amplifier design is brought together in this circuit, delivering exceptional sound quality for serious headphone listening.

Evolved for an Even More Open Sound

The circuit is engineered to eliminate differences in sound quality between speaker and headphone playback. This is achieved by employing the HCLD line-stage preamplifier renowned for its high current output, as the headphone amplifier itself. The dual-mono architecture incorporates independent left and right power supply circuits.

During headphone operation, the two amplifier circuits switch to parallel single-ended operation, resulting in sound with even greater openness than previous models. The amplifier is equipped with two output formats: a 4-Pin XLR and a ¼ (6.3mm) stereo phone headphone output. With a high output power of 1,200 mW per channel (32 Ω load), it drives high-end headphones with ample authority, control, and musical vitality, delivering uncompromising performance and heightened musical expressiveness.
