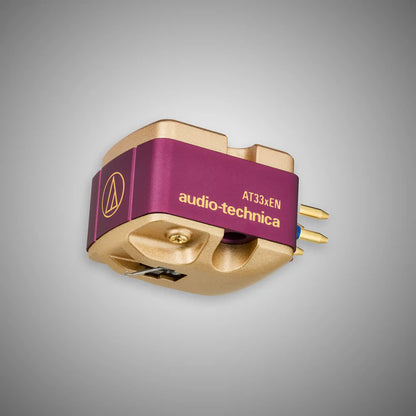

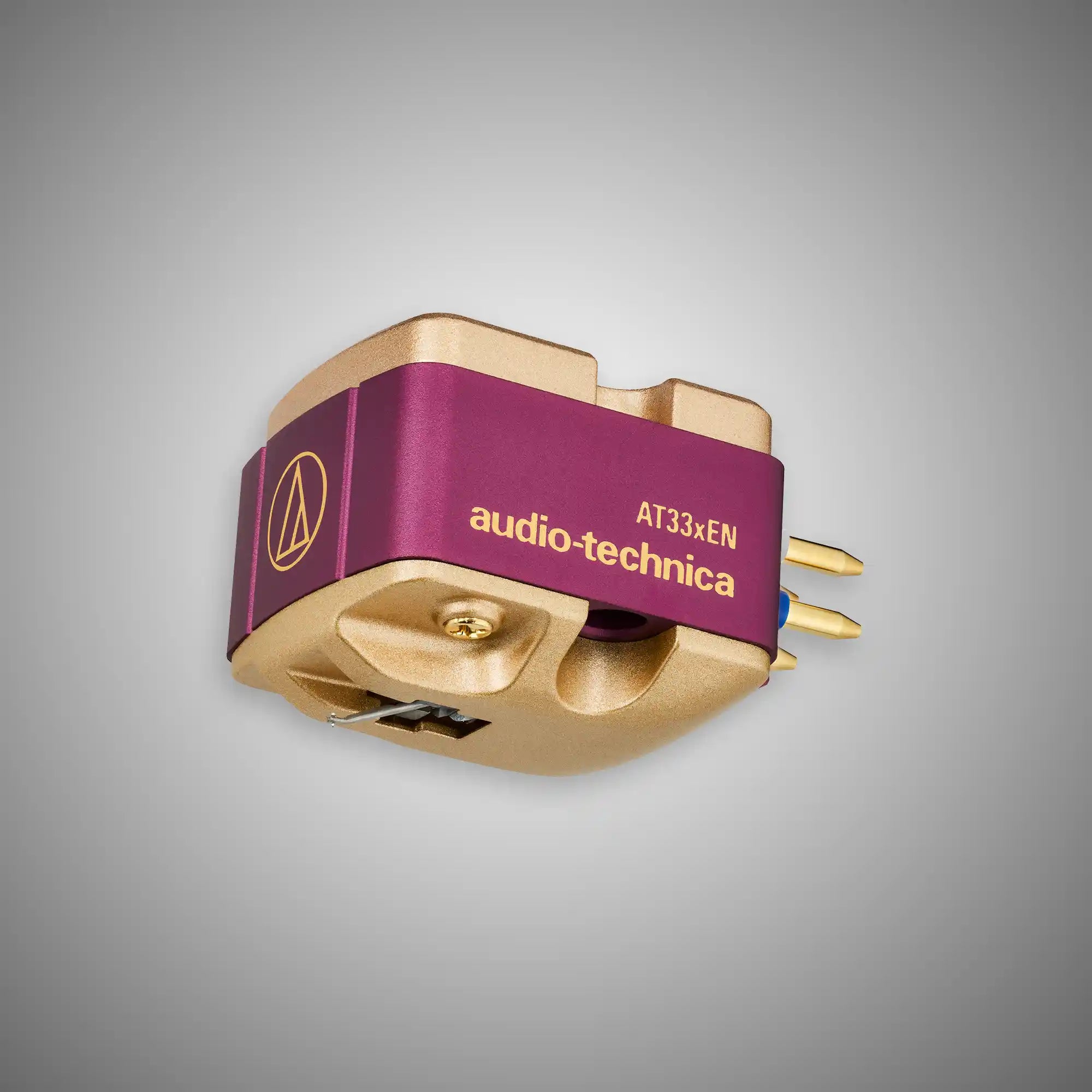

audio technica AT33xEN Dual Moving Coil Stereo Cartridge - DOUGLAS HIFI

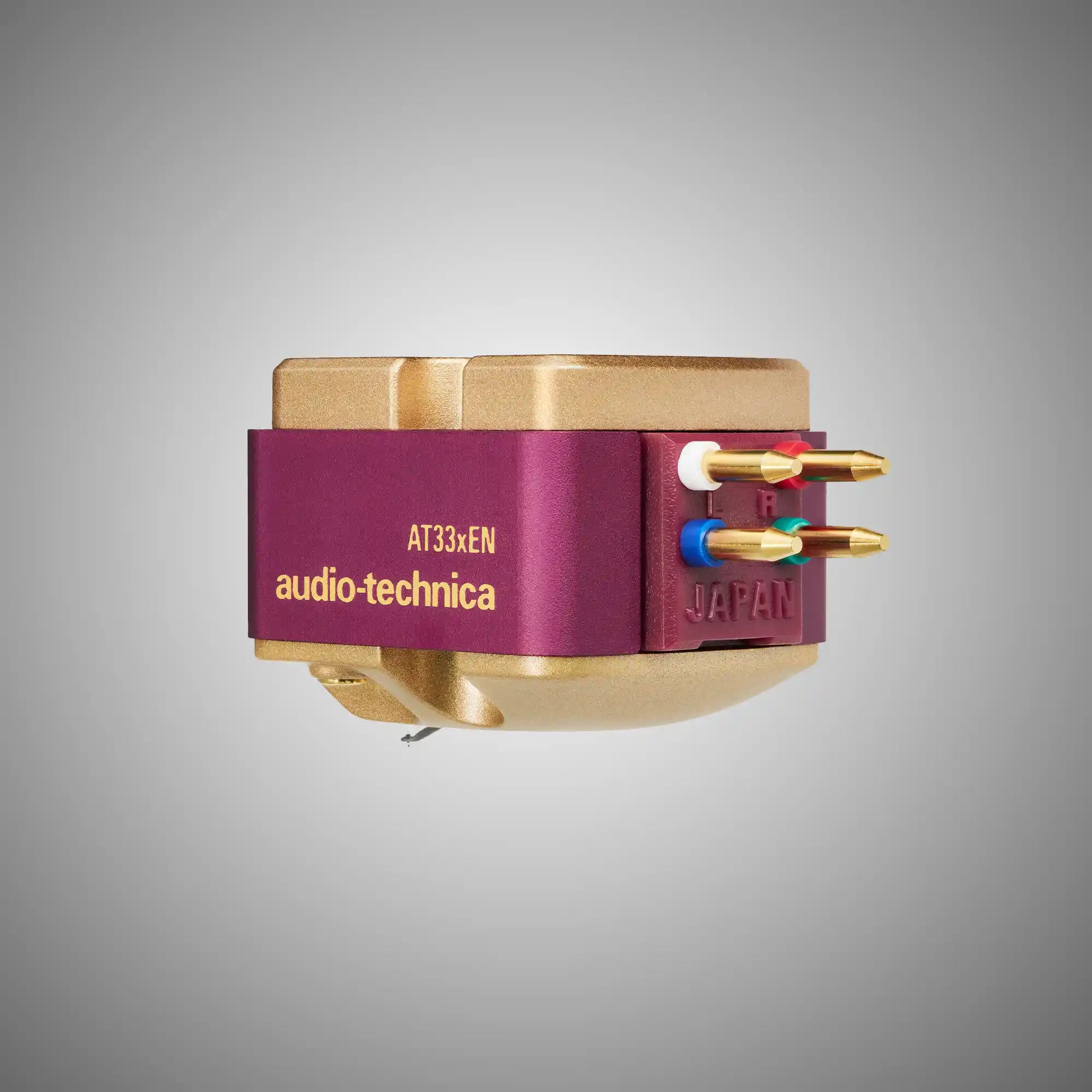

audio technica AT33xEN Dual Moving Coil Stereo Cartridge (Rear) - DOUGLAS HIFI

audio technica

audio technica AT33xEN - Moving Coil Cartridge

$1,099.00

The AT33xEN is an excellent all-around cartridge choice, delivering warm, full-bodied audio reproduction. It features a 0.3 x 0.7 mil elliptical nude stylus attached to a hard duralumin tapered pipe cantilever to provide excellent tracking of the record groove with enhanced high-frequency control. Our newly developed suspension mechanism uses piano wire for even better tracking accuracy, lowering the dynamic compliance slightly for more substantial audio, particularly in the mid-low range.

audio technica AT33xEN - Moving Coil Cartridge

The AT33xEN’s rigid duralumin pipe cantilever, which tapers toward the elliptical stylus tip for improved response, is linked with a firm suspension mechanism, slightly lowering the dynamic compliance. Two independent PCOCC coils are positioned at the cantilever’s fulcrum to ensure pure signal transmission for each channel.

Each AT33x Series cartridge body is constructed of three distinct materials – die-cast zinc, aluminum, and high-rigidity polymer – optimally arranged to reduce and disperse resonance across the cartridge body so that no frequency predominates during playback. Threaded holes are incorporated into the body for easy mounting.

SPECIFICATIONS

Cartridge & Stylus
Frequency Response 20 to 40,000 Hz
Channel Separation 27 dB (1 kHz)
Vertical Tracking Angle 19°
Tracking Force 1.8 to 2.2 g (2.0 g standard)
Recommended Load Impedance ≥ 100 ohms (when head amplifier connected)
Coil Impedance 12 ohms (1 kHz)
DC Resistance 12 ohms
Coil Inductance 26 μH (1 kHz)
Output Voltage 0.4 mV (1 kHz, 5 cm/sec.)
Output Balance 1.0 dB (1 kHz)
Stylus Shape Nude Elliptical
Cantilever Duralumin tapered pipe
Static Compliance 21 × 10-6 cm/dyne
Dynamic Compliance 6 × 10-6 cm/dyne (100 Hz)
Dimensions 16.1 mm (0.63”) × 16.6 mm (0.65”) × 26.1 mm (1.0”) (H × W × D)
Accessories Included Non-magnetic screwdriver; Brush; Washer* × 2; Cartridge installation screws* (M2.6) (8.0 mm (0.31”) × 2, 10.0 mm (0.39”) × 2, 13.0 mm (0.51”) × 2); Protector
Threaded Hole M2.6 × 2
Stylus Curvature Radius 0.3 × 0.7 mil
Type MC
Weight 10.1 g (0.36 oz)
Notes * Washers × 2 and screws (8.0 mm (0.31”)) × 2 are used to secure the cartridge in the box at the time of purchase. Be sure to keep and not lose these after removing the cartridge from the box.
