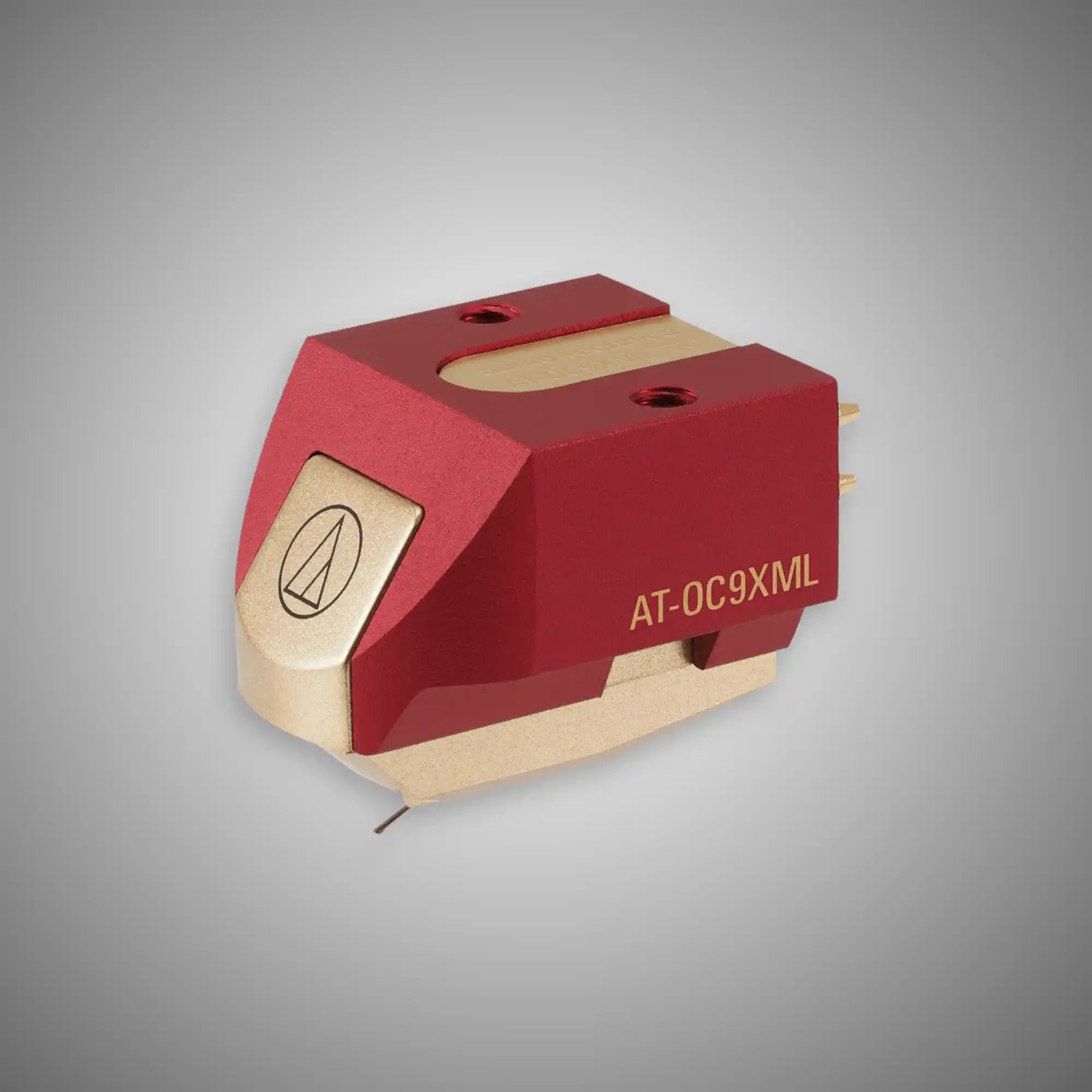

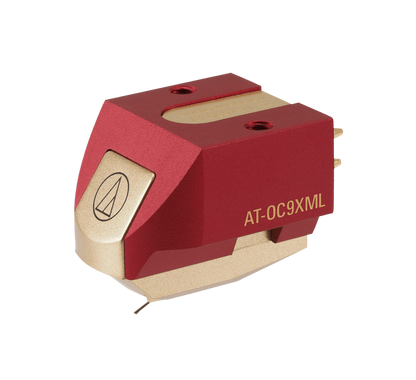

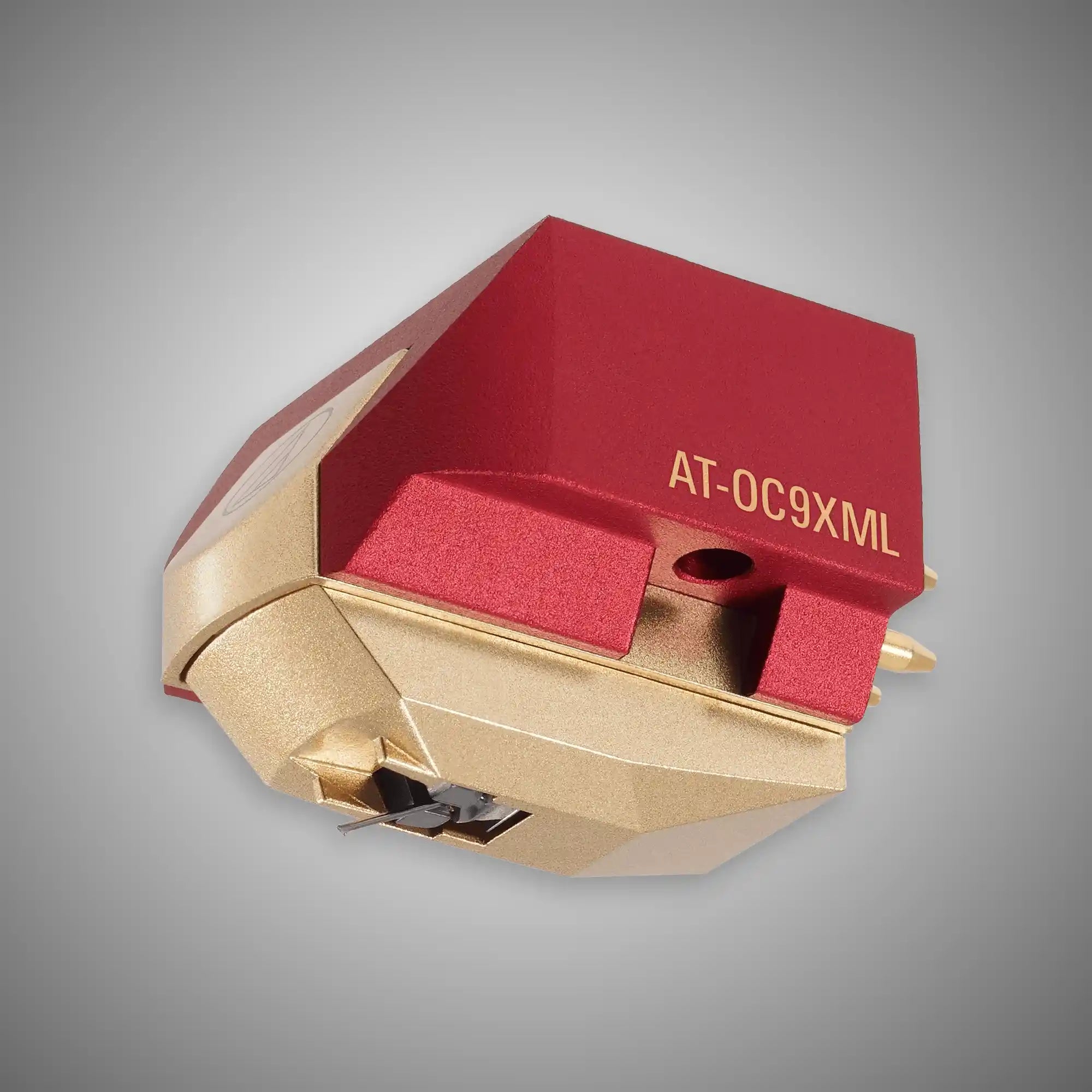

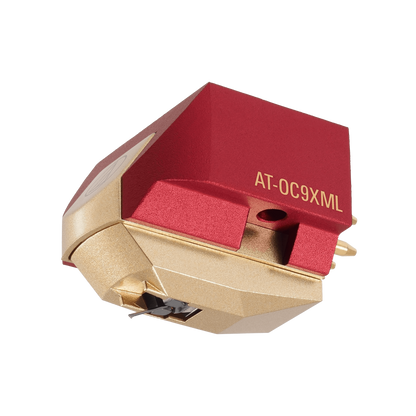

audio technica AT-OC9XML - Moving Coil Cartridge
The AT-OC9XML Dual Moving Coil cartridge with Microlinear stylus is designed to provide outstanding channel separation. The Pure Copper by Ohno Continuous Casting (PCOCC) coils ensure pure audio transmission and are aligned in a reverse V-shaped formation to exert less pressure on the stylus, thereby minimising distortion.
audio technica AT-OC9XML - Moving Coil Cartridge with Microlinear Stylus

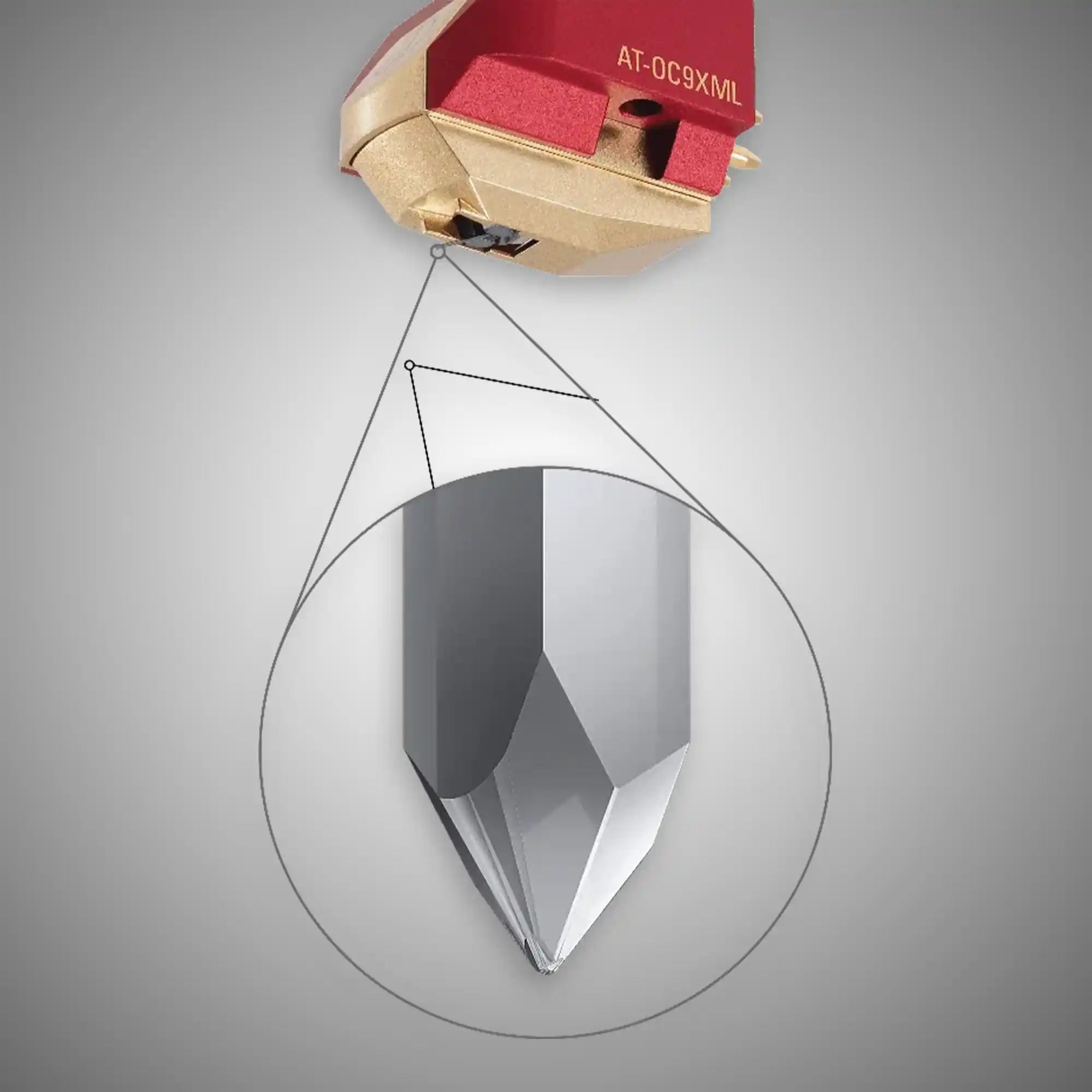

Audio quality is further enhanced by a rigid aluminium body that reduces resonance, a neodymium magnet and premium permendur yoke that increase the magnetic energy, and the nude Microlinear stylus on a boron cantilever that tracks the record groove with incredible accuracy, low distortion and high-transient response. The cartridge body has been pre-threaded, enabling it to be mounted to a headshell or integral tonearm with just two screws – no nuts required.
Specifications
Cartridge & Stylus | |
---|---|
Frequency Response | 20 - 47,000 Hz |
Channel Separation | 27 dB (1 kHz) |
Vertical Tracking Angle | 20 degrees |
Vertical Tracking Force | 1.8 to 2.2 g (standard 2.0 g) |
Stylus Construction | Nude square shank |
Recommended Load Impedance | Min 100 Ohms |
Coil Impedance | 12 Ohms (1 kHz) |
DC Resistance | 12 Ohms |
Coil Inductance | 25 μH (1 kHz) |
Output Voltage | 0.4 mV (@ 1 kHz, 5 cm/sec) |
Output Channel Balance | 1.0 dB (1 kHz) |
Stylus Shape | Microlinear |
Cantilever | 0.28 mm Ø nude boron |
Static Compliance | 20 x 10 – 6 cm / dyne |
Dynamic Compliance | 16 x 10 – 6 cm / dyne (100 Hz) |
Mounting | 1/2” centers / Threaded |
Cartridge Weight | 7.6 g |
Dimensions | 17.3 (H) x 16.8 (W) x 25.7 (L) mm |
Accessories Included | 1 non magnetic screw driver 1 brush 2 washers 4 pairs of mounting screws: 5mm, 8mm, 10mm, 12mm 1 plastic protector |
Body Material | Aluminium |
Model | AT-OC9XML |
Stylus Size | 2.2 x 0.12 mil |
Terminal Pins | Brass |
Wire Used for Coil | PCOCC (Copper by Ohno Continuous Casting process.) |
