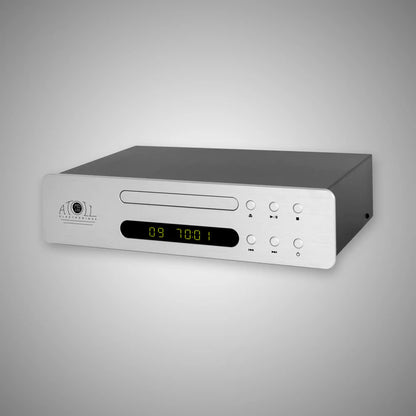

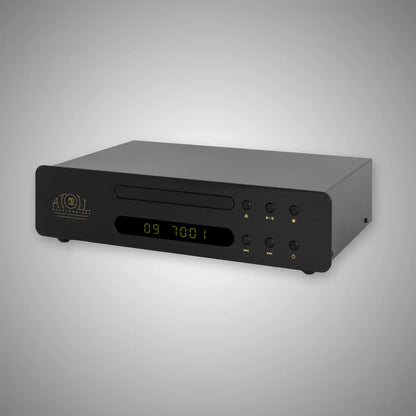

ATOLL Evolution MD100 Mini CD Player

The latest addition to the Mini line, the MD100 player, is the ideal complement to Atoll's “Mini-system” elements for playing your CDs. This player benefits from quality components, particularly a TEAC CD reading mechanism compatible with CDs, CD-R, CD-RW, MP3 files, and WMA-AAC.

ATOLL Evolution MD100 Mini CD Player

Features

• Original transport drive from TEAC (compatible CD, CD-R, CD-RW; MP3 format)
• Aluminium front panel of 4 mm (black or silver) and complete steel chassis of 1,5 mm
• 3 regulated supplies
• PCM5122 converter ; direct current output stages (with no capacitor)
• Serial Remote control

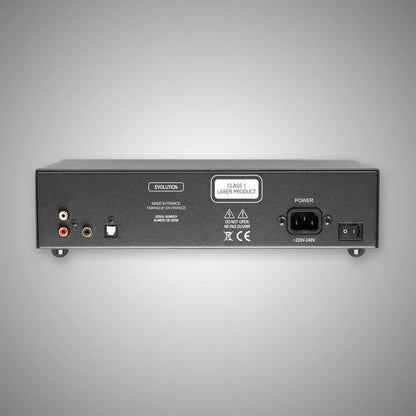

Connections

• Analogue RCA Output
• 2 Digital Outputs (optical & coaxial)

Specifications

• Power supply: 10 W
• Total of capacitors: 11 094 μF
• Output level: 2,0 Vrms
• Consumption:
• - switch off 0 W
• - standby < 0,5 W
• - operating 2 to 4 W
• Digital output: Coaxial & Optical
• Digital input: 24 bits / 192 kHz
• USB input: 24 bits / 192 kHz
• Converter (D/A): PCM5122
• Signal/Noise ratio: 112 dB
• Dynamic: 112 dB
• Distortion at 1 kHz: 0,002 %
• Bandwidth: 5 Hz - 20 kHz
• Rise time: 2,0 μs
• Dimensions (mm): 320×210×83
• Weight: 2.4Kg
