Ferrum Wandla DAC/Pre-amp - EISA Award Winner

$4,690.00
Tax included. Shipping calculated at checkout.

Discover a truly immersive audio experience with the Ferrum Wandla DAC/Pre-amp. The EISA Award Winner offers a rich and natural sound that will take your listening experience to the next level. With multiple inputs and a natural,dynamic full sound, this award-winning DAC will give clarity and depth to your music.

Ferrum Wandla DAC/Pre-amp - EISA Award Winner

As more and more of our music sources are digital there are more and more choices of DAC (Digital to Analogue Converter) than ever before. The first popular home digital format was CD and has time has progressed there is now a host of others such as computers, Hi-Resolution music streaming services, smart Televisions and music downloads. The variety and quality of DACs in the marketplace has gained momentum since CD - yet it is really in the last 5 or 6 years that DAC technology has got to a point of sounding more and more musical and having more and more connectivity for our modern digital life.

Tomorrow’s High End Audio Today

As The Converter WANDLA leads the way for tomorrow’s high end offering flagship audio quality at an unprecedented price and with included inputs for I2S as well as ARC and CEC over HDMI

Finely tuned DA conversion

WANDLA is the latest exemplar of Ferrum’s digital know-how and our in-house-developed analogue audio and electrical technology. The ESS Sabre ES9038PRO combined with Ferrum’s advanced new current-to-voltage (I/V) converter compares to units many times its price.

SERCE

Digital audio system module - the optimized ARM chip offers the shortest signal path possible, making 5 chips redundant. Includes MQA decoder/renderer and digital filter selection.

Dynamic Digital Filtering

WANDLA has three ESS digital filters to choose as standard and, as a world first, two digital filters created for Ferrum by renowned filter-maker Signalyst, know for their HQPlayer app. More filters will follow after interacting with WANDLA users.

Optimized Digital inputs

Specially programmed USB, and tuned coaxial and optical S/PDIF, HDMI ARC (TV) and I2S ports, optimized for audio.

Truly Balanced

The signal path stays truly balanced using the XLR inputs and becomes truly balanced using the RCA inputs.

Proprietary amplification

Fully balanced modified IC pre-amplifier, fine tuned for WANDLA.

Ease of use

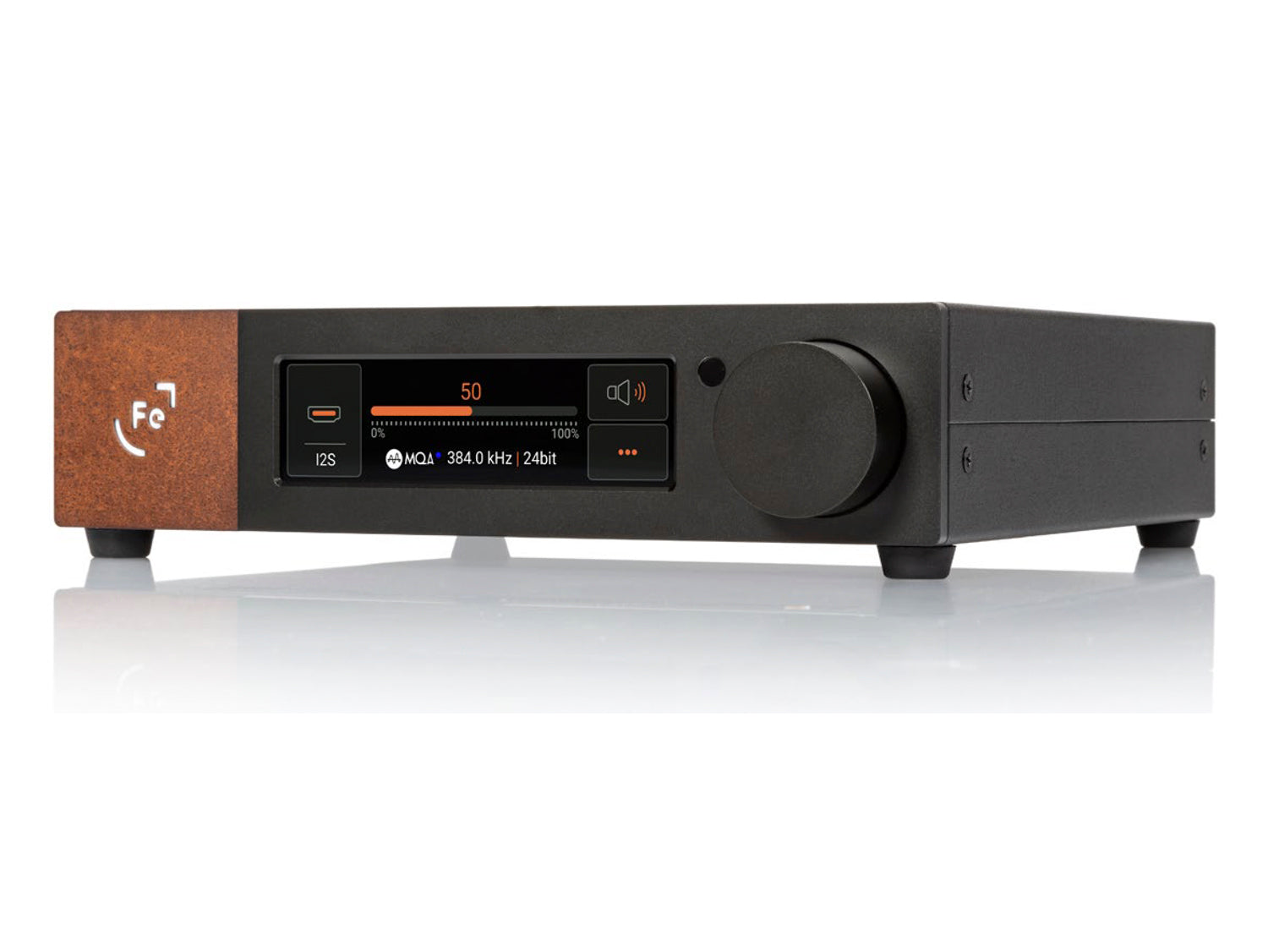

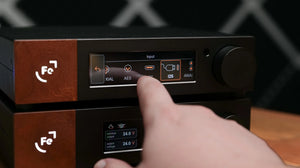

Newly developed hi-res touch screen with intuitive UX that is a dream to operate, including remote control.

Enhanced transparency

The whole design is focussed on a balanced and very transparent sound signature, making listening fatigue something of the past.

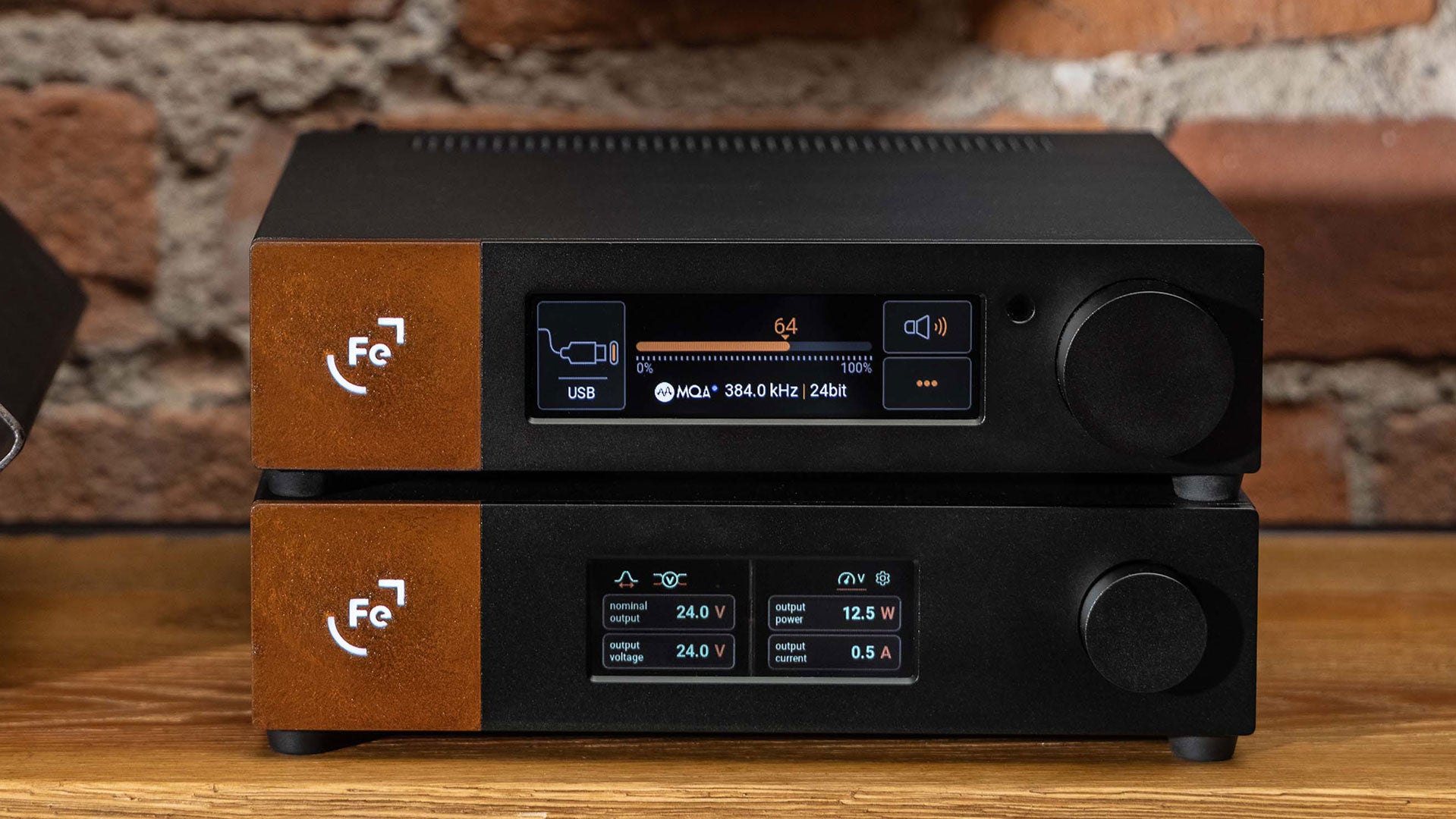

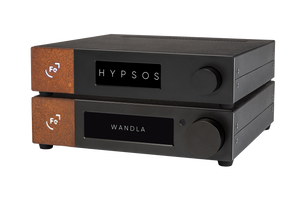

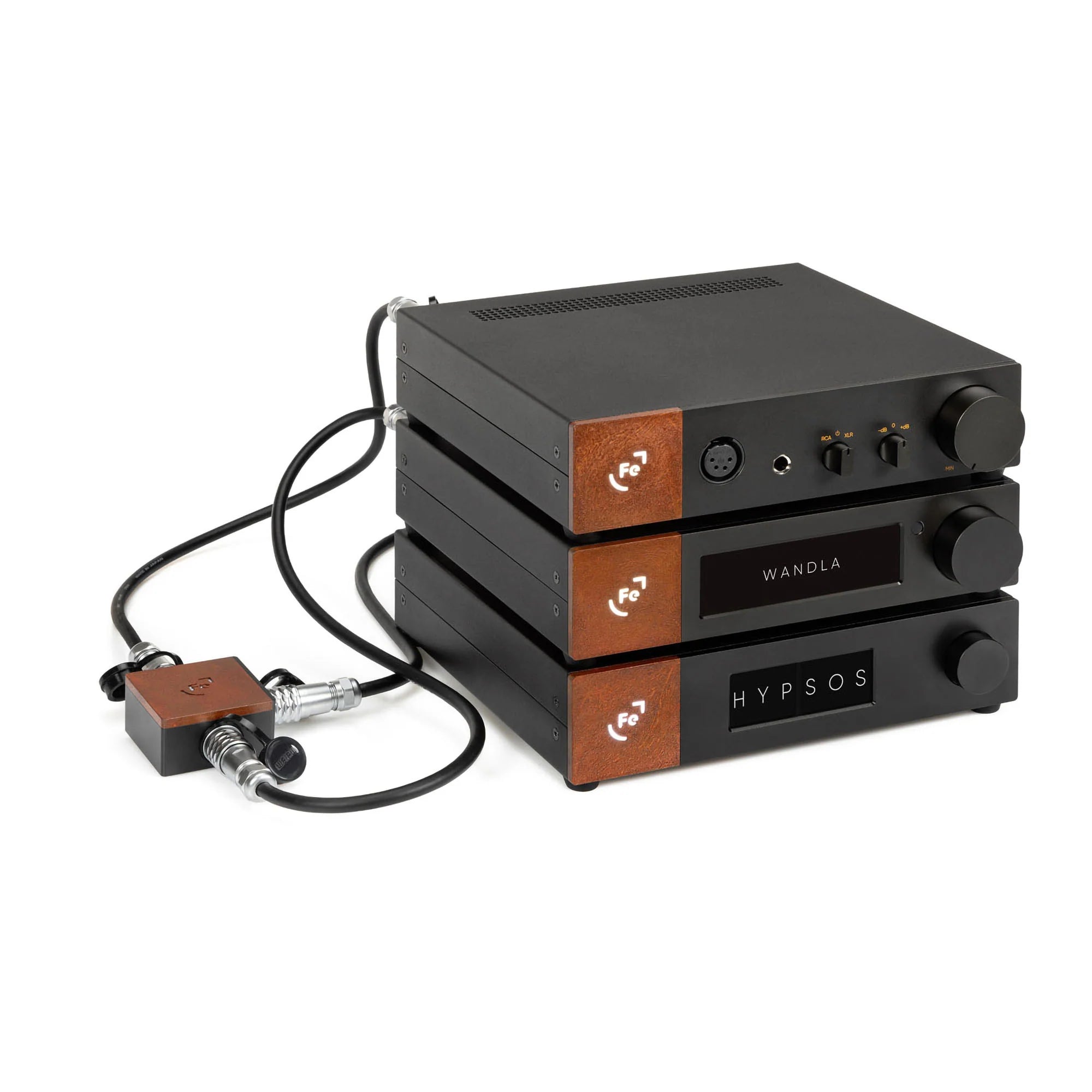

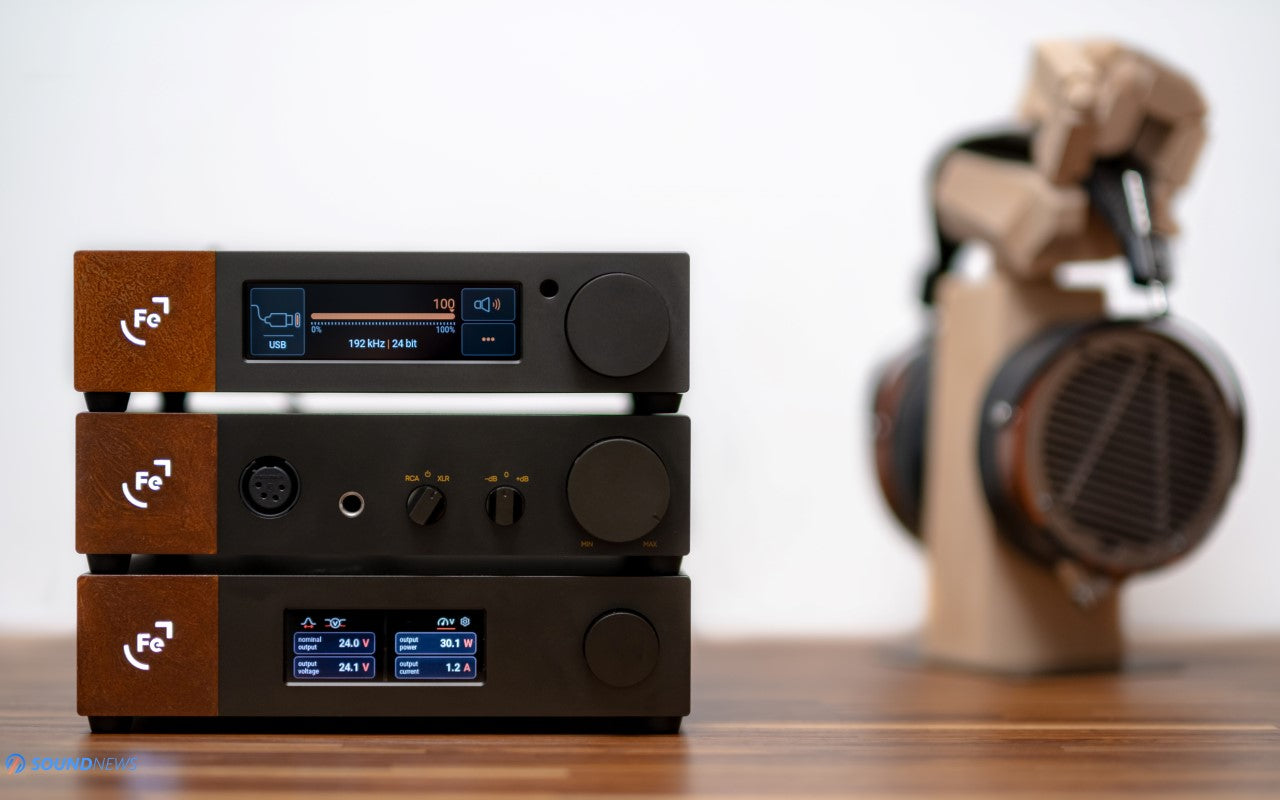

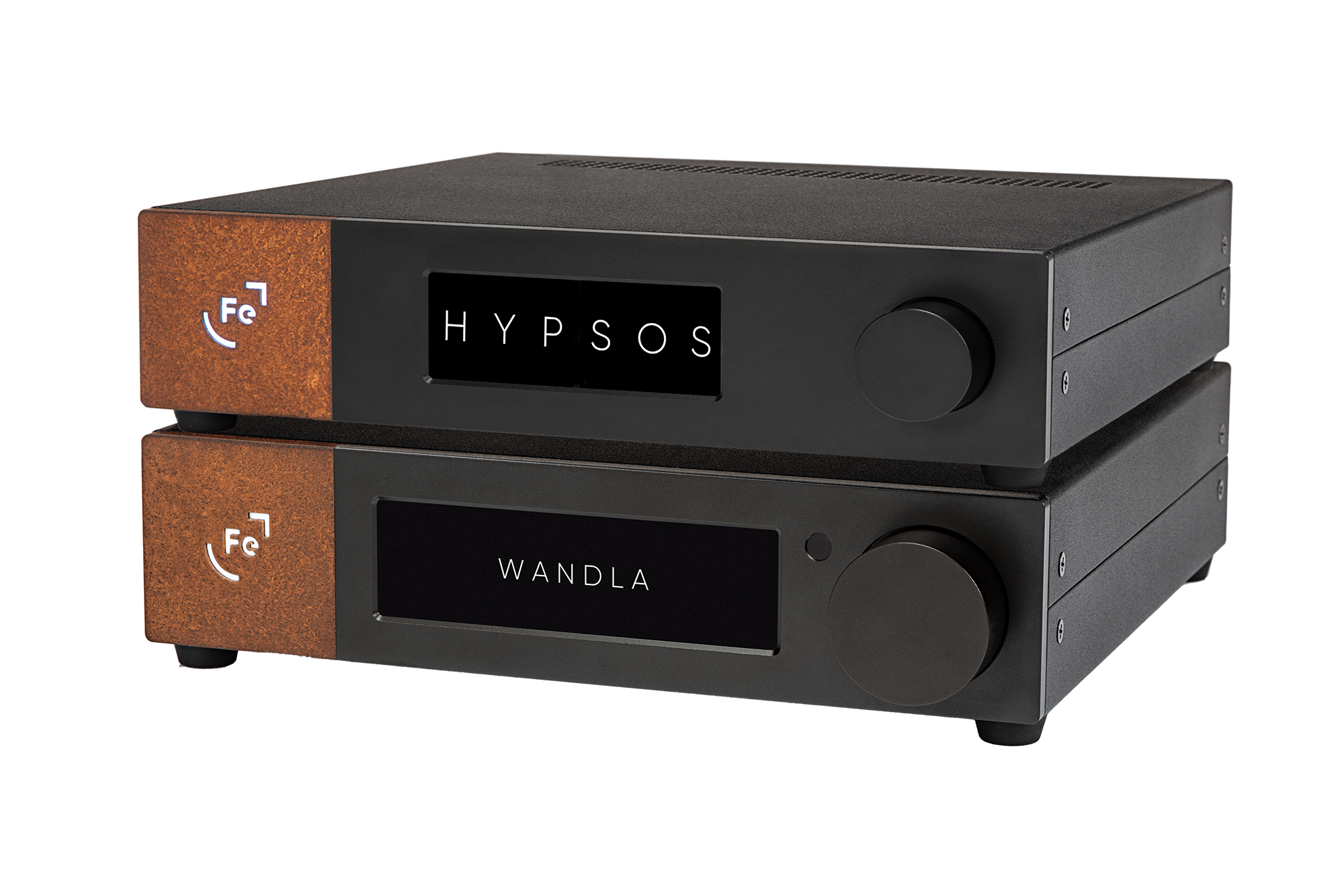

Made for HYPSOS

WANDLA performs beautifully right out of the box, but you can take its performance above and beyond when pairing it with HYPSOS. Using the proprietary Ferrum Power Link (FPL) connection with 4TSD voltage sensing, both components will perform to their absolute maximum, unleashing unheard-of musicality.

Wandla DAC quick Features list

  • WANDLA fully balanced DAC/PREAMP
  • Proprietary fully balanced modified IC pre-amplifier, fine tuned for WANDLA
  • Specially programmed USB, and tuned coaxial and optical S/PDIF, ARC and I2S ports, optimized for audio
  • Proprietary optimized ARM chip offers the shortest signal path possible, making 5 chips redundant.
    Includes MQA® decoder/renderer and digital filter selection
  • Proprietary Signalyst filters (two included at launch)
  • Proprietary 4-pin Ferrum connector for HYPSOS

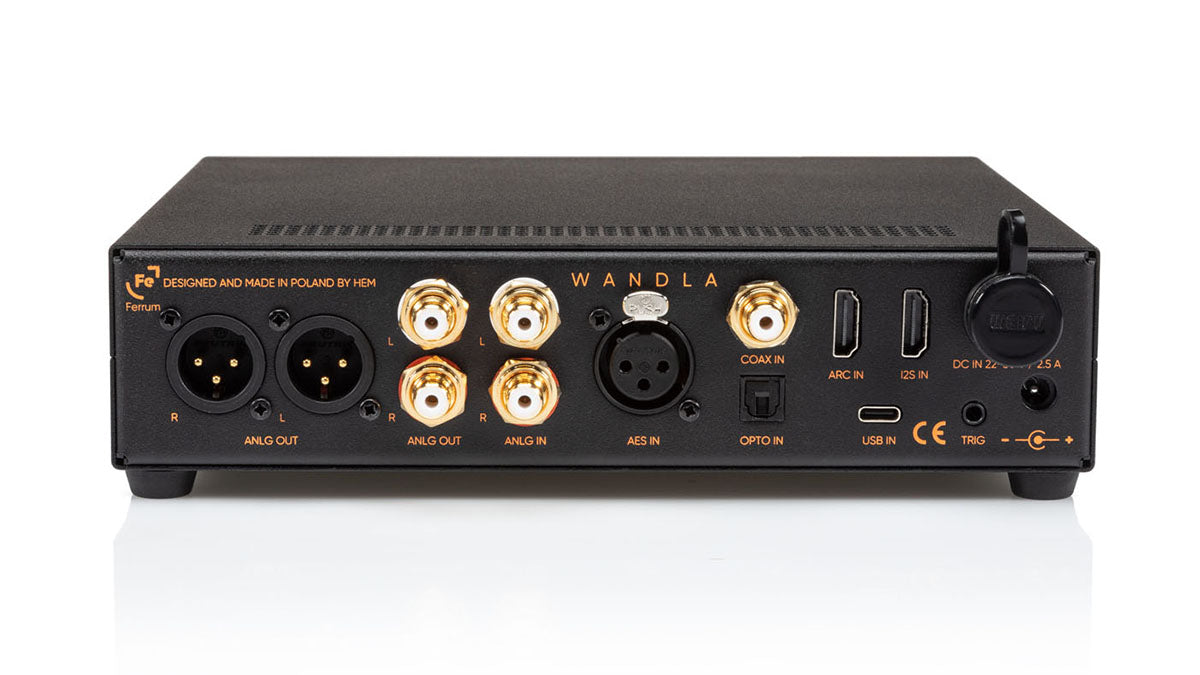

  • Balanced XLR and unbalanced RCA line outputs
  • Digital and Analogue volume control
  • EES Sabre ES9038PRO with three filter settings
  • Remote control included

Full Specifications

Operation:   Fully balanced, proprietary IC power amp
DAC chip:    ESS Sabre ES9038PRO
DAC resolution:   768 kHz/32-bit, DSD 256
Digital inputs: – AES/EBU (up to PCM 192 kHz/24-bit, DoP 64)
    – Optical S/PDIF (up to PCM 96 kHz/24-bit guaranteed; should work up to PCM 192 kHz/24-bit and DoP 64 – depends of user’s optical cable and transmitter)

    – Coaxial S/PDIF (up to PCM 192 kHz/24-bit, DoP 64)
    – USB (up to PCM 768 kHz/32 bit, DSD 256, DoP 256)

    – ARC (up to PCM 192 kHz/24-bit), TV input with CEC
    – I2S (up to PCM 768 kHz/32-bit, DSD 256, DoP 256), PS Audio® compatible
MQA®:    decoder and renderer (on all digital inputs)
Analog inputs:  RCA
Analog input Vmax:

9,5 V RMS (2–3,5 V RMS recommended)
Analogue input imp: 47 kΩ
Line outputs:  balanced XLR; unbalanced RCA
Volume control:  analogue with bypass option / digital for DAC operation only
Output level:  @0 dBFS, 1 kHz sine 9,3 V RMS balanced, 4,65 V RMS unbalanced
Frequency response:  10 Hz – 200 kHz +/- 0,1 dB
analog inputs
DAC THD:    -121 dB (0,00009%); THD+N: -115 dB (unweighted)
Analog input THD:  -123 dB @ 2 V RMS output level
Dyn. range analog:  127 dB (A-weighted)
Dyn. range digital:  127 dB (A-weighted)
Crosstalk:    -120 dB for 1 kHz, better than -100 dB for 20 Hz -20 kHz
Output impedance:  22 Ω unbalanced
Output impedance:  44 Ω balanced
Power consumption:  10 W idle / 15 W max
Power inputs:  5,5/2,5 mm DC connector centre positive
    proprietary FPL 4-pin DC connector (FPL)
    22-30 VDC
Power adapter:  100-240 VAC to 24 VDC
Dimensions:   21,7 x 20,6 x 5 cm
(WxDxH)   8.6 x 8.1 x 2.0 inch
Weight:   1,8 kg
  3.97 lbs
