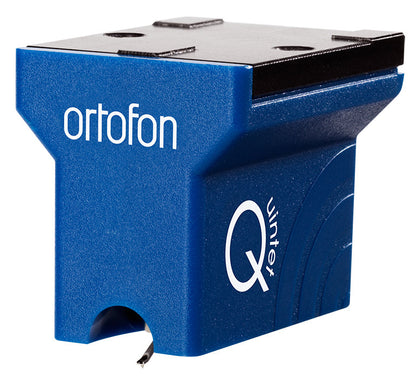

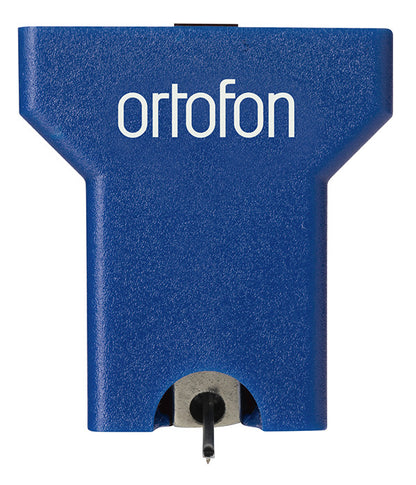

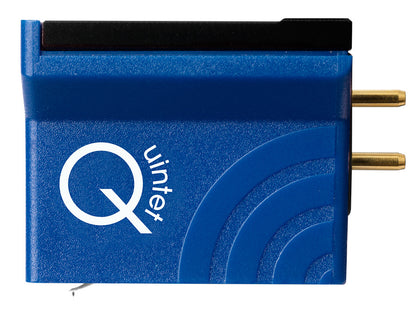

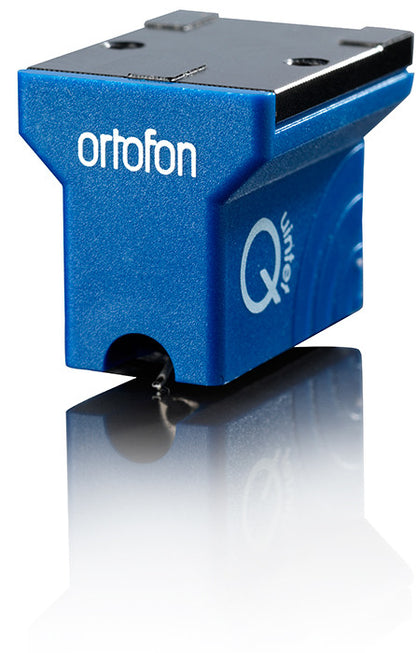

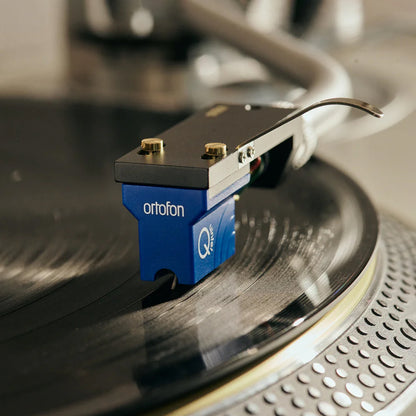

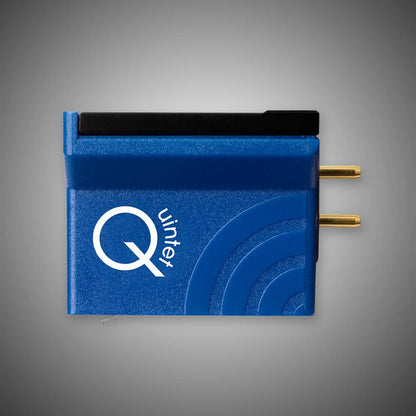

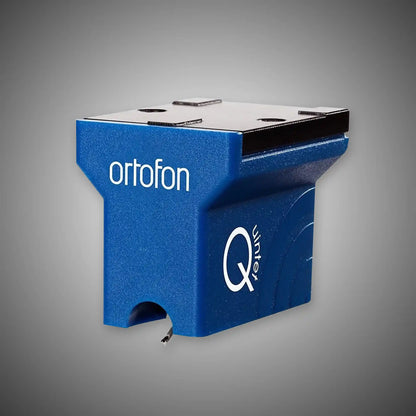

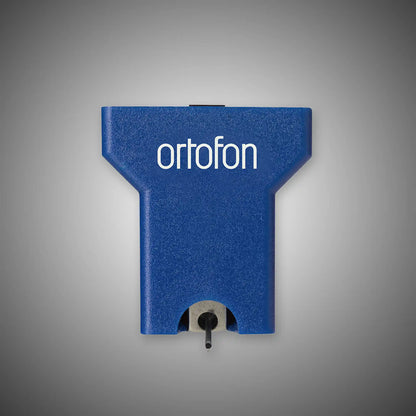

ORTOFON Quintet Blue Moving Coil Cartridge
The Quintet Blue is a very easy going and smooth sounding cartridge which will bring more space, depth and detail into the sound. The Quintet Blue's sound image will tend to more smooth reproduction compared to an equivalent priced MM cartridge.
ORTOFON Quintet Blue Moving Coil Cartridge
It features a Nude Elliptical diamond mounted on an aluminium cantilever. The Quintet Blue will bring more space, depth and detail into the sound and is a very good choice for any kind of music, especially rhythmic.
Specification
Output voltage at 1 kHz 5 cm/sec - 0.5 mV
Channel balance - < 1.5 dB
Channel separation at 1 kHz - > 21 dB
Channel separation at 15 kHz - > 14 dB
Frequency range at -3 dB - 20-25.000 Hz
Frequency response 20-20.000 Hz - +/-2.5 dB
Tracking ability at 315 Hz at recommended tracking force *) - 70 μm
Compliance, dynamic, lateral - 15 μm/mN
Stylus type - Nude Elliptical
Stylus tip radius - r/R 8/18 μm
Tracking force range - 2.1-2.5 g (21-25 mN)
Tracking force recommended - 2.3 g (23 mN)
*) Typical value
Tracking angle - 20º
Internal impedance, DC resistance - 7 Ohm
Recommended load impedance - >20 Ohm
Cartridge body material - ABS/Aluminium
Coil wire material - Pure 4-nines copper
Cartridge colour - Blue
Cartridge weight - 9 g
