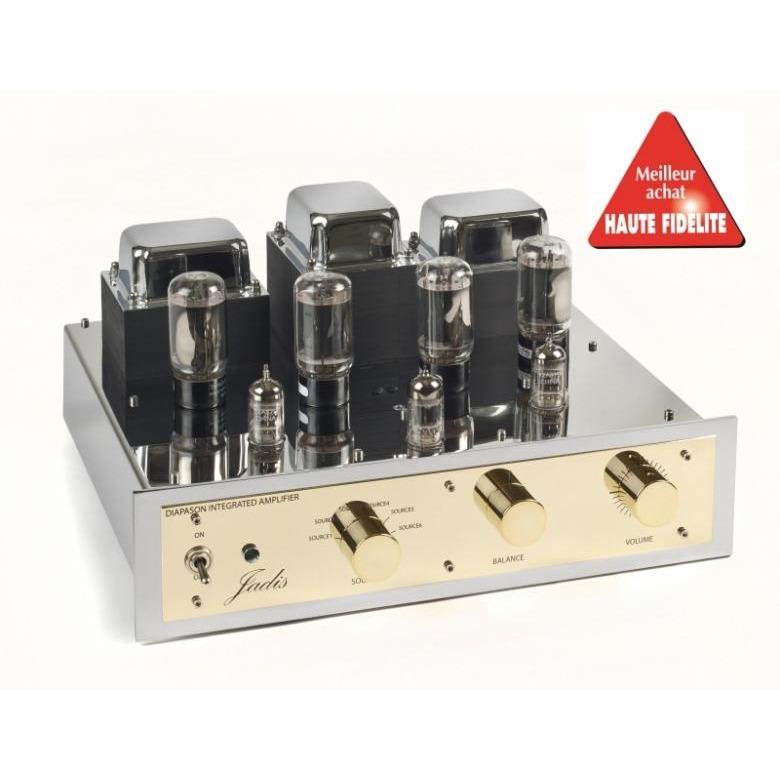

Jadis Diapason Integrated Valve Amplifier
The Jadis DIAPASON Integrated tube amplifier embodies all of the characteristics of the rest of the Jadis lineup. High quality parts are used throughout to create an amazingly free flowing and textured sound that brings body to the music without sacrificing speed and rhythm. The Diapason tube integrated amplifier works in AB class around a push-pull of 6L6 power tubes and is equipped with a tube preamplification section. Components are no exception to the rule, they are the same as the ones used on other Jadis products. A concentrate of musicality, elegance and performance available in two finishes.
SPECIFICATIONS
| Type |
Diapason |
| Bias |
AB Class - semi automatic |
| Power |
2 X 15 W |
| Input type |
6 line inputs ( RCA), USB as an option, 1pr output for loudspeaker |
| Bandwidth |
@ - 3dB: 20 Hz to 25kHz |
| Sensibility |
10 mV |
| Tubes list |
4 X 6L6 - 1 X ECC82 - 2 X ECC83 |
| Dimensions |
37 x 16.5 x 35 cm |
| Weight |
12 kg |
| Consumption |
150W |
