ACS100 Caching Music Server / Streamer with USB Output / CD Ripper / Metadata Editor / Dual-HDD Storage / Library Manager
Aurender are both pioneers and leaders in the realm of managing and playing digital music. Whether you are wanting to play your own content files stored on a NAS drive, locally on the ACS100's drive, or from your favourite streaming services, the Aurender ACS100 presents the options via their Conductor app and then delivers your selection with close to audio perfection.
The ACS100 was developed to be a more cost-effective version of the ACS10 offering many of the same functions as the ACS10. The ACS100 quite simply delivers much more than other competitive brands in its price class.
As a music server / streamer, the ACS100 enjoys operational control via Aurender Conductor for both iPad tablets and Android devices. All the features you’d expect from Aurender like clutter-free direct access to your music as well as app-embedded Tidal and Qobuz subscription streaming services, Spotify Connect, internet radio, MQA Core decoding (optional), CD ripping and advanced metadata editing and library management.

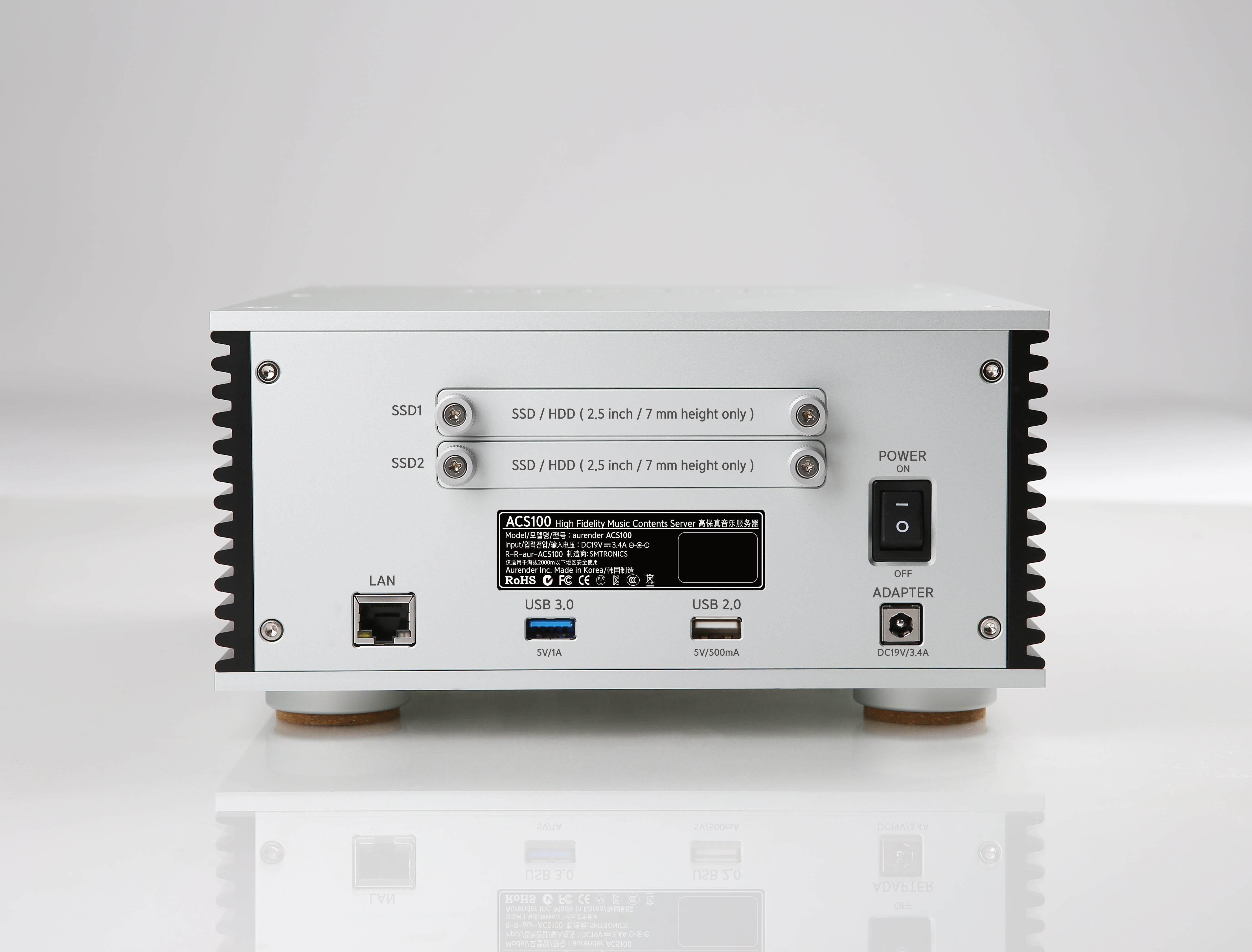

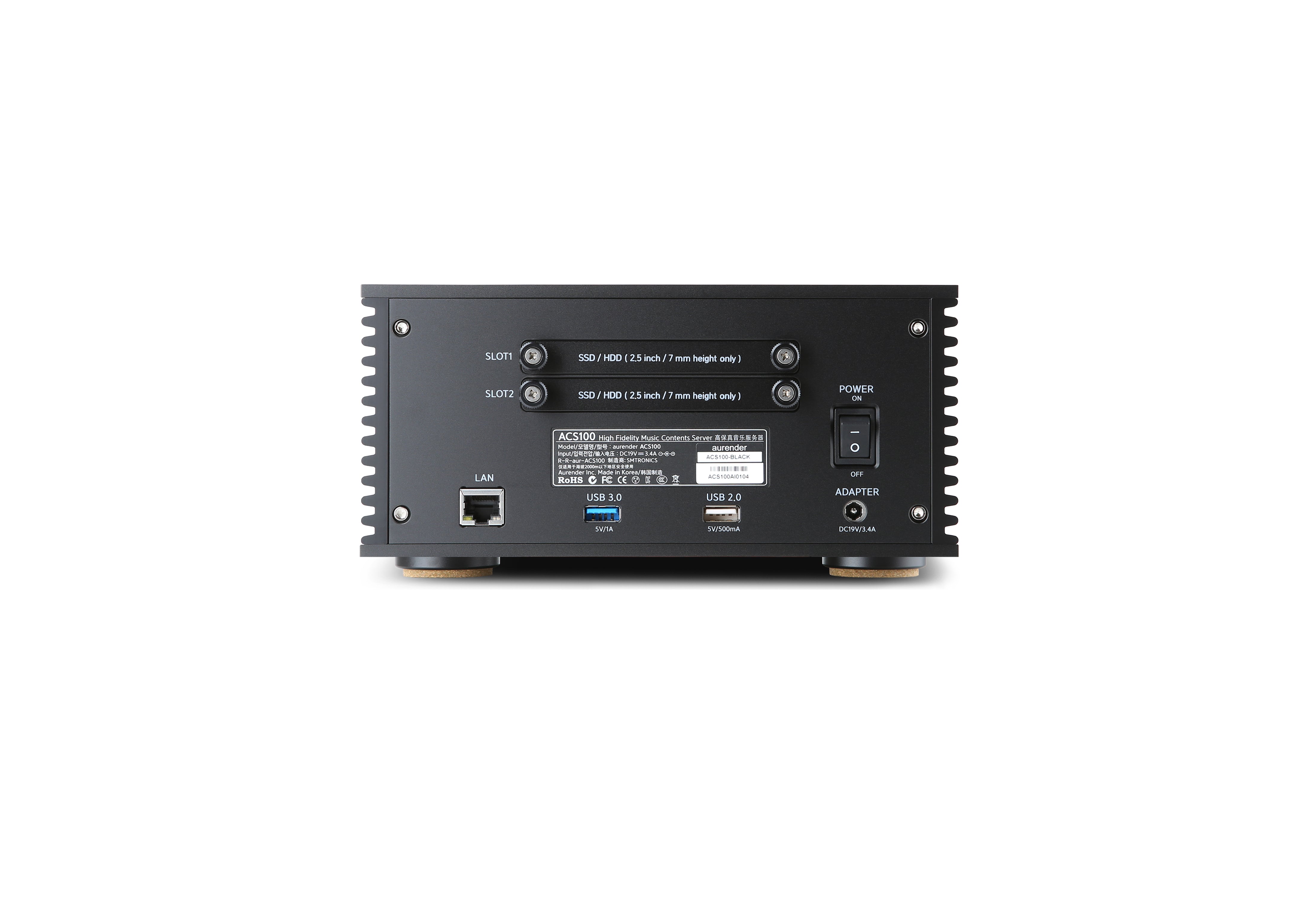

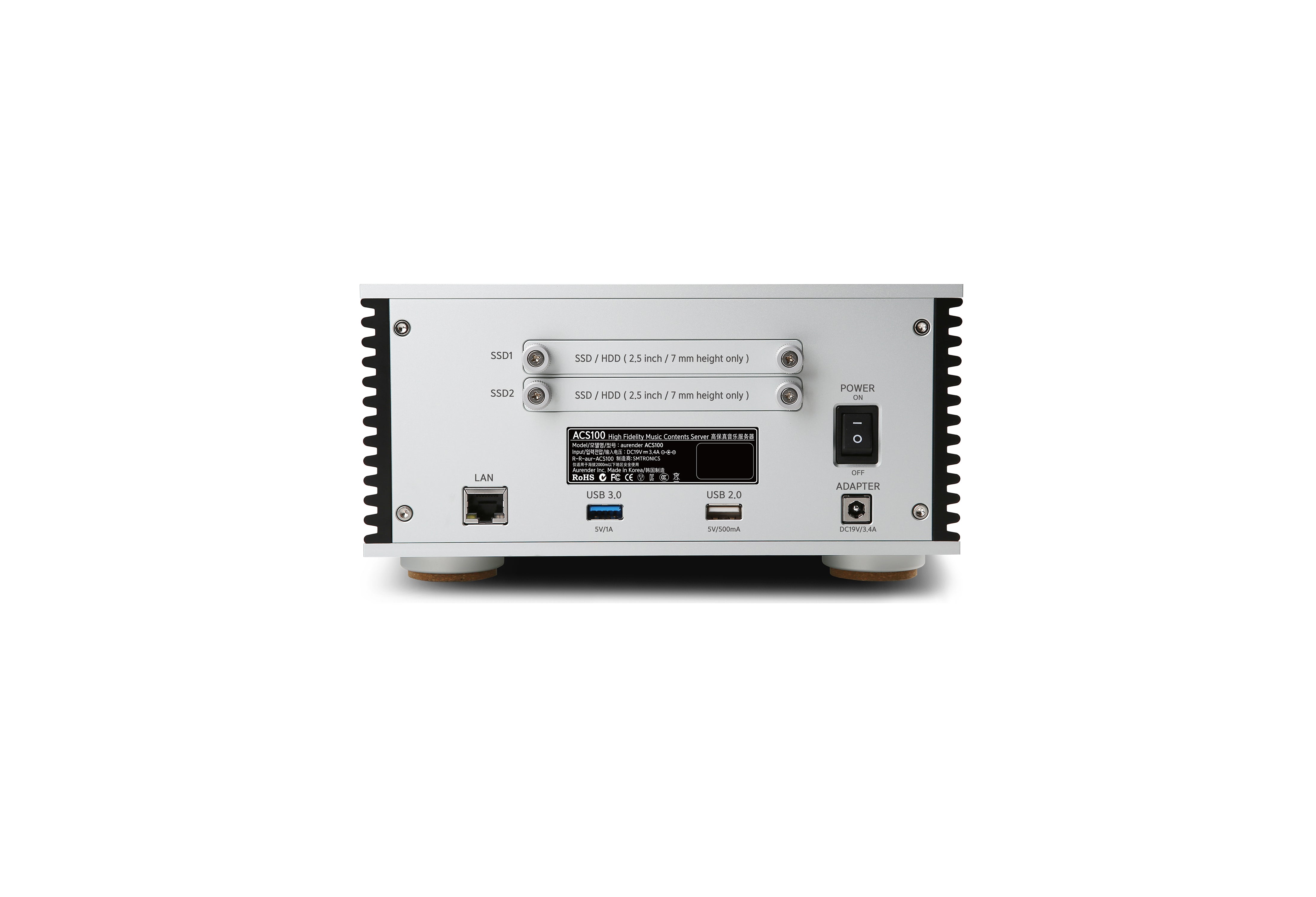

ACS100 provides two sliding trays located on the rear panel that are designed to hold your choice of HDDs or SSDs for storage. You can install one drive to start and as your storage requirements change, add another or load both for maximum storage capacity.

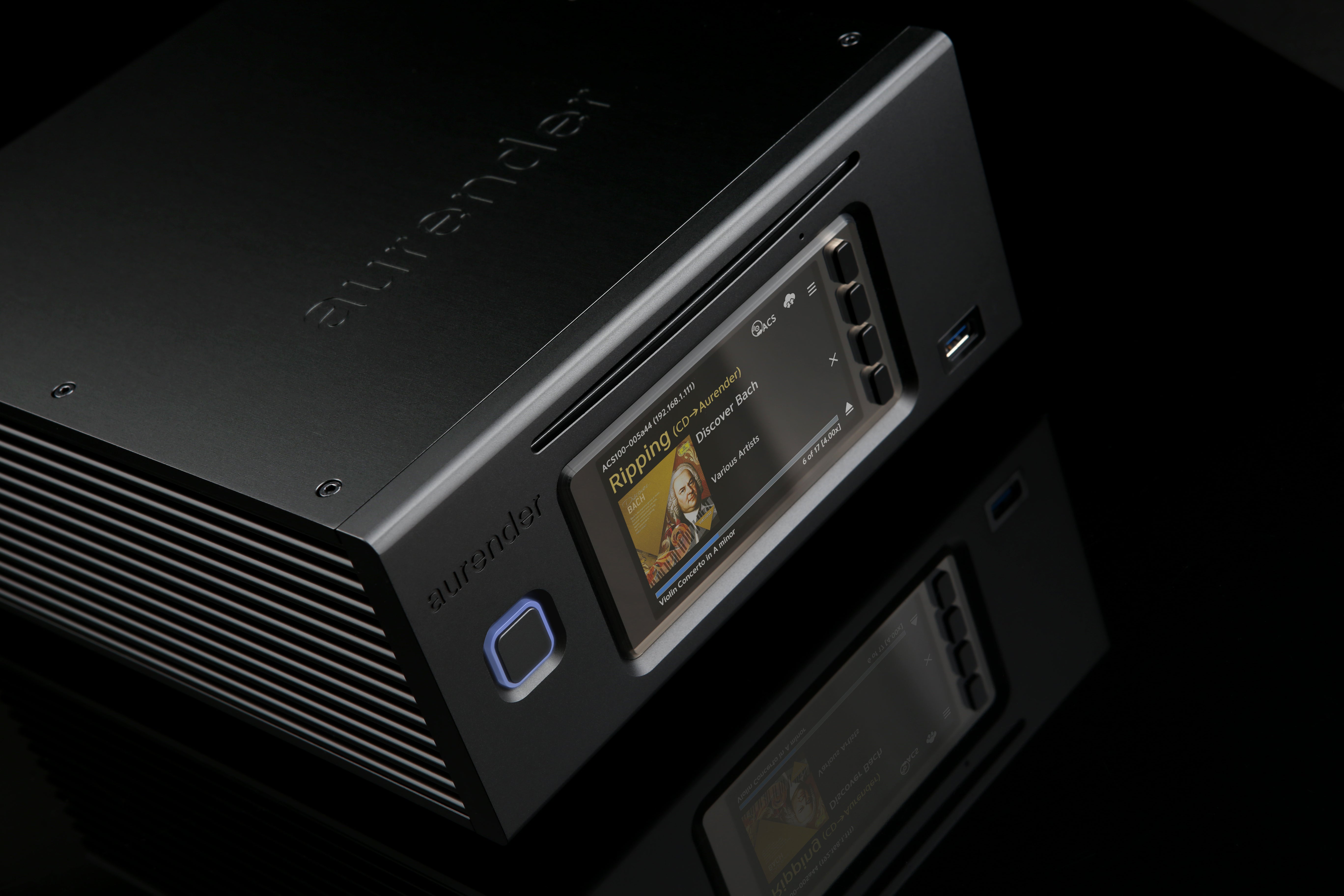

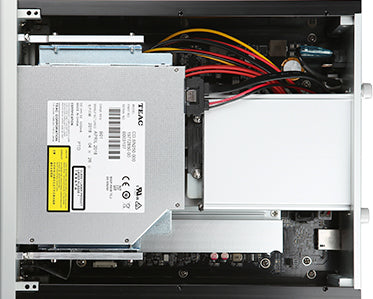

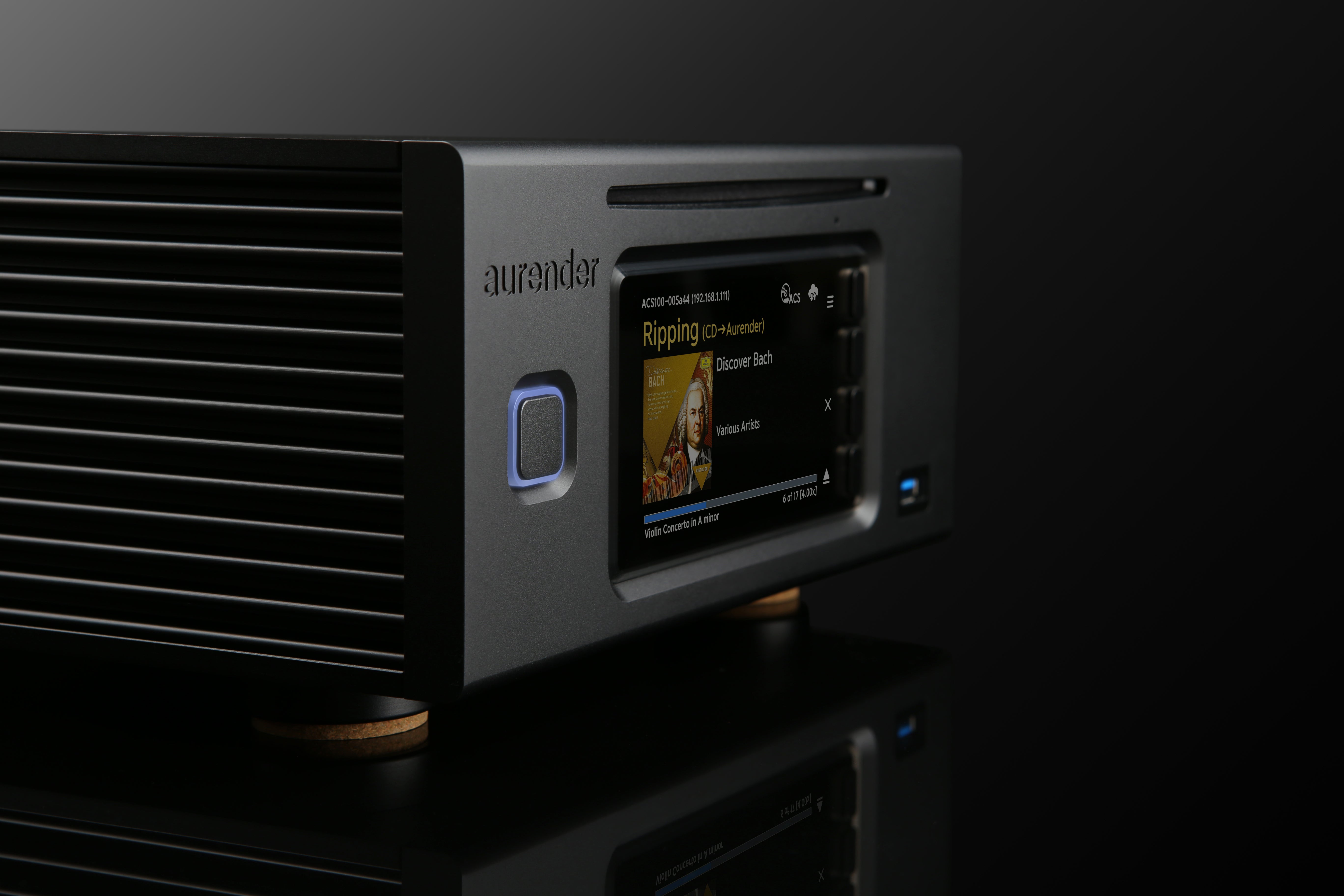

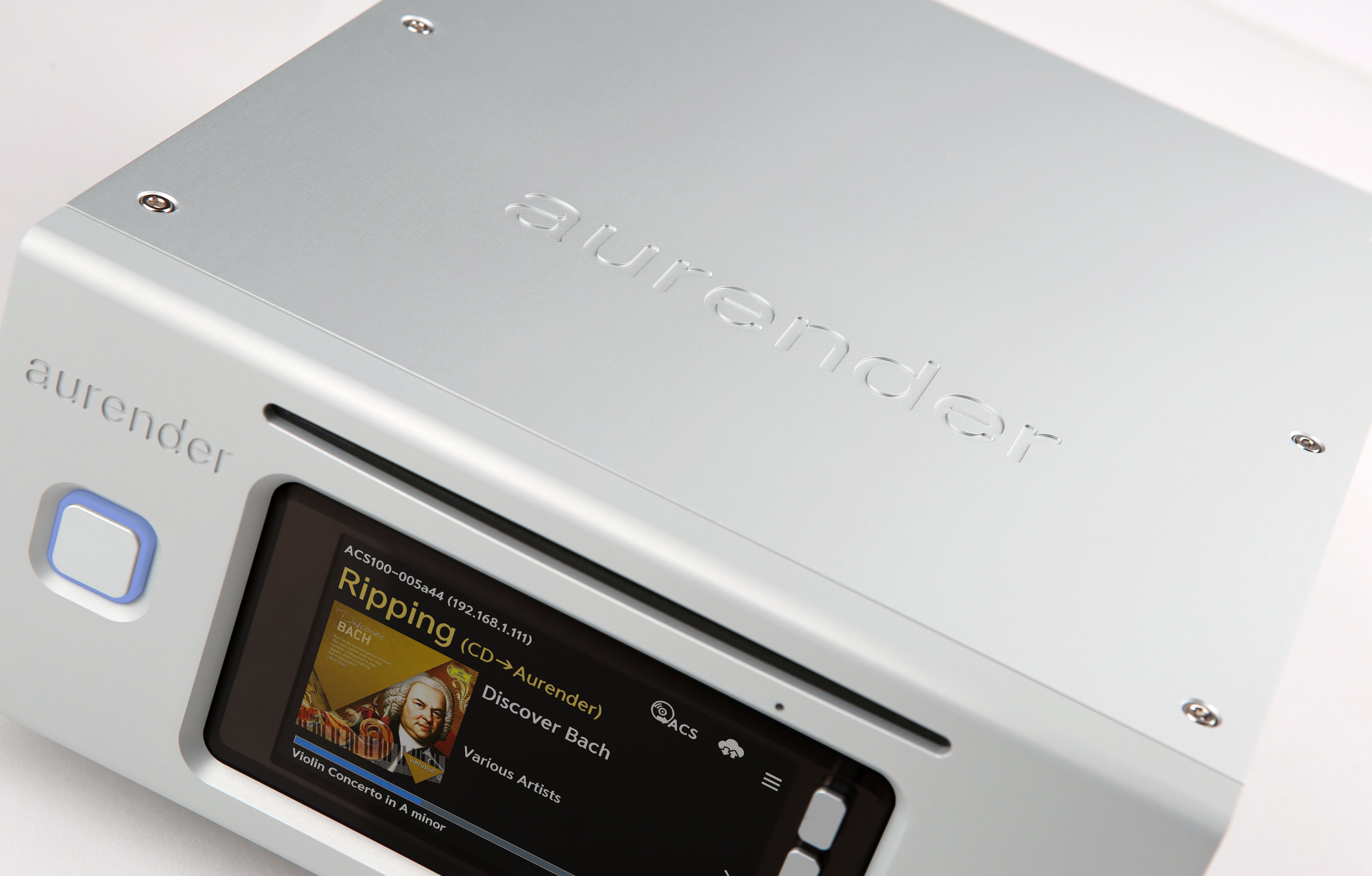

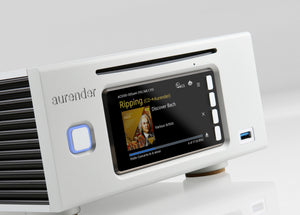

Aurender’s CD ripping engine creates the best sounding files in your choice of FLAC, WAV or AIFF codecs. Metadata is automatically retrived and the album cover art and other metadata can be viewed on the front panel display. A TEAC CD-ROM drive extracts the CD data in bit-perfect fashion in a one-touch operation and places the file in a user determined folder for immediate playback.
Tag Editing and Library Management
Smart Tag Editor is an application for the modification of various metadata fields allowing user to correct the files tags to suit their music sorting requirements. A Copy / Move / Delete feature allows for easy transfer of music libraries from various other network attached devices and can also perform a scan for duplicate file removal.
The ACS100 employs an innovative method of digital audio file playback. Every Aurender uses at least two drives, one or more to store the library, the other for playback. When the user gives the command to play an album, the music moves from the library drive to the SSD caching drive where playback begins. The library drive goes idle reducing both mechanical and electrical noise and lessening wear and tear. With the ACS100 the user has the ability to install SSDs as library drives, allowing both storage and playback of file-based media to be handled entirely by SSDs.
Aurender Conductor App Packed with Convenient Features for Full-Function Control
The Aurender Conductor App turns the iPad, Android phone or tablet into a versatile user interface for each Aurender music server. All settings and functions of the Aurender scan be easily accessed through the Settings menu, and the app comes with extensive features to make browsing and playing high-resolution music collections a breeze.
ACS Manager Companion App
ACS100 has many features allowing the user to correct mis-tagged files. A specialized app, ACS Manager is a companion app to Conductor and is used to configure all system settings including CD ripping preferences, Smart Copy, Move, Delete, Duplicate Checker, Smart Tag Editor, and much more.
State-of-the-Art Automatic CD Ripping
Aurender’s CD ripping software, which is custom engineered to work with the high-quality TEAC CD-ROM drive, yields shockingly good sounding CD rips! Sophisticated error detection and correction ensures accurate rips technically superior to rips made on a computer.
A USB Digital Audio Class 2.0 output allows ACS100 to function as a music server / streamer when connected to an external DAC. Two USB 3.0 data ports (one on the front panel, one on the rear) allow for fast data transfer to the ACS100’s internal drives. Another USB 2.0 located on the rear panel can be used for thumb or USB storage devices or for connecting to a Acronova Nimbie AutoLoader (optional – third party supplied). An isolated LAN port is provided for direct connection to your router.
HDD Storage Capacity for the Large Music Libraries
ACS100 is designed to be customized by the user in terms of storage capacity. The unit is delivered without any drives installed in the dual drive trays so the user must determine the type and capacity of the drives they install. For example, if using two 4TB SSD drives (currently the largest SATA type available), the ACS100 would then have a total music library capacity of 8TB.
Power Supply with Integrated UPS
A 19V power supply adapter plus a “super capacitor” based uninterruptible power supply (UPS) for stabilizing the ACS100 under an abrupt power outage condition.
Support for High-Resolution Formats
All major codecs supported. PCM up to 786kHz/32-bit. DSD up to 256 DoP. Native DSD up to 512.
MQA Core Decoder (optional in-app purchase)
Aurender’s optional MQA Core Decoder upgrade enables “first-level” MQA unfolding to play MQA files at up to 88.2 or 96 kHz into DACs that are not MQA certified.
215 x 98 x 257 mm / 8.5 x 3.9 x 10.1 inch (unit only) 215 x 111 x 257 mm / 8.5 x 4.4 x 10.1 inch (unit with foot) 5.0 kg / 11.0 lbs
MQA Core Decoder
Yes – Software for Acronova Nimbie included (Nimbie hardware is separate purchase from third party)
Inputs / Outputs
USB 3.0 x 2 (1 x front, 1 x rear panel), USB 2.0 x 1 (rear), LAN Port (1 Gbps)
Tray for Easy User Installation – 2 x 2.5” SATA HDD (7mm, Up to 2 x 2TB) or 2 x 2.5” SSD (up to 2 x 4TB)
CD-ROM for Ripping
Yes (TEAC Slot-Load Type) CD-ROM Drive for ripping only
Digital Audio Output
USB 2.0, Digital Audio Class 2.0 – DoP (Up to 256), Native DSD (Up to 512) PCM up to 384kHz / 32-bit
Intel N4200 Quad CPU
UPS (Uninterruptible Power Supply)
Yes (Super Capacitor based)
DC19V / 3.42A
Front Panel Display
4.0″ Color IPS LCD
SSD for System and Cache
Silver or Black
Aurender Conductor App for iPad, iPhone, Android Phone and Tablets ACS Manger
8.5 x 3.9 x 10.1 inch / 215 x 98 x 257 mm (unit only) 8.5 x 4.4 x 10.1 inch / 215 x 111 x 257 mm (unit with foot)
