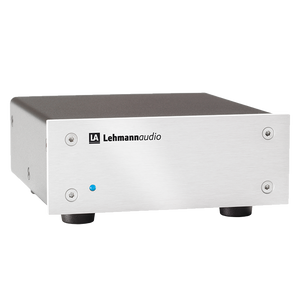

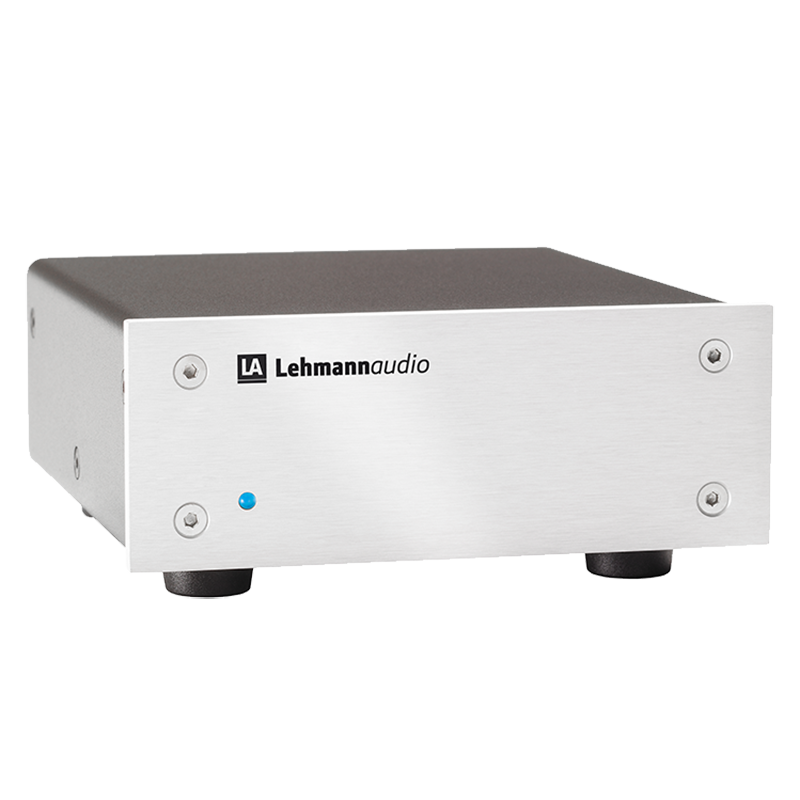

Lehmann Audio Black Cube SE II Phono Preamp (Silver) - DOUGLAS HiFi
Lehmann Audio Black Cube SE II Phono Preamp (Rear) - DOUGLAS HiFi

Lehmann Audio BLACK CUBE SE II Phono Pre-Amp

Regular price $2,279.95
Unit price  per
Tax included. Shipping calculated at checkout.

The Black Cube SE II comes with top notch technology that points towards higher price points, like all Lehmannaudio electronics. The input stages used in this device can also be found in top notch mixing consoles or in well known professional microphone preamps. The entirely passive RIAA equalization network is realised with high precision foil capacitors to realise an artefact-free transport of microdynamics and room information.

Lehmann Audio Black Cube SE II Phono Pre-Amp

The Black Cube SE II comes with top notch technology that points towards higher price points, like all Lehmannaudio electronics.

The input stages used in this device can also be found in top notch mixing consoles or in well known professional microphone preamps. The entirely passive RIAA equalization network is realised with high precision foil capacitors to realise an artefact-free transport of microdynamics and room information. The switches for gain and load settings have gold plated connectors for reliable performance.

The maximum gain of the Black Cube SE II is high enough for even very low output MC cartridges. Cartridge adaption itself is totally flexible because gain and lading can be chosen independently from each other. To top this all off, there is a slot for a custom impedance resistor, so that even the most exotic MC cartridges can be loaded adequately without having to buy expensive impedance plugs. No soldering needed.

Because of the small outer dimensions, the SE II audio section can be placed next to the turntable. This minimizes loss due to cable length.

Lehmannaudio always pays special attention to details: the cable between power supply and audio section is shielded and ensures flexible placement of audio section and PWX power supply. The cases of both the power supply and the audio section are made of non-magnetic aluminium; additionally equipped with a top cover coated with a special anti-resonance treatment for better suppression of microphonic effects.

A brand new feature that is built into the SE II is the entirely passive bass filter, which is a great help when tailoring the lower corner frequency of the vinyl reproduction to personal needs. 16 different filter curves can be realised.



Features

  • Metal case shields the electronics from vibrational and electromagnetic interference
  • Dual-mono input stage
  • 2x RCA input / 2x RCA output
  • Separate PWX upgrade power supply
  • Amplification and RIAA equalisation for MM and MC cartridges
  • Metal case shields the electronics from vibrational and electromagnetic interference
  • Available with Black, Silver or Chrome faceplate

Specifications

  • Input Stage: Dual Mono Microphone Pre-Amp
  • (Chip Newest Generation)
  • Sensitivity:
  • (Output 775 mV/ 0 dB)  MM: 3.8 mV/1 kHz
  • MC: 0.38 mV/1 kHz
  • Gain Settings:36dB
  • 46dB
  • 56dB
  • 66dB
  • Gain (1kHz): MM: 46 dB
  • MC: 66 dB
  • Signal to Noise Ratio
  • (RMS Unweighted): MM: 71 dB
  • MC: 63 dB
  • Input Impedance: 47 kΩ , 1 kΩ , 100Ω
  • 1 x Custom Load
  • 1 x Hardwire Slot
  • Channel Separation: > 80 dB at 10 kHz
  • Second Gain Stage: Dual Mono Burr Brown OPA 134
  • Output Impedance: 47Ω
  • Input Capacitance: 100 pF
  • Channel Mismatch: typ. 0.5 dB
  • Bass Filter: 16 Settings Between 7Hz & app. 90Hz
  • Power Consumption: < 3 W
  • Dimensions: Black Cube SE II: 114 x 124 50mm
  • PSU: 93 x 233 x 45mm
  • Weight: Black Cube SE II: 600g
