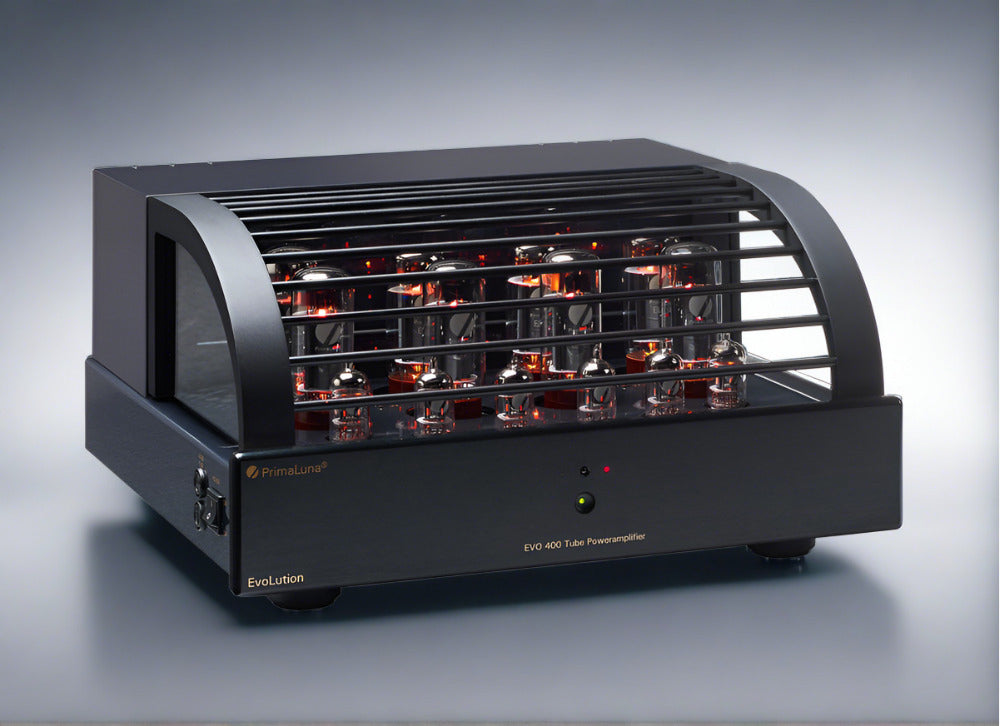

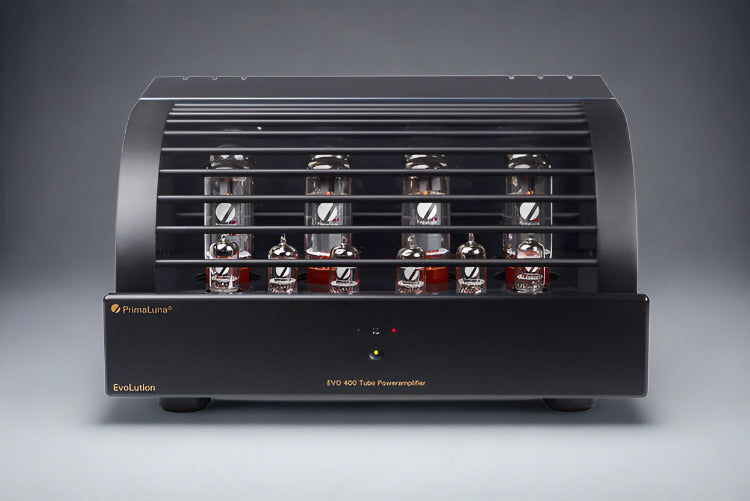

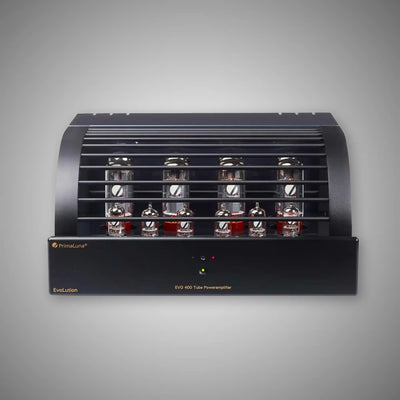

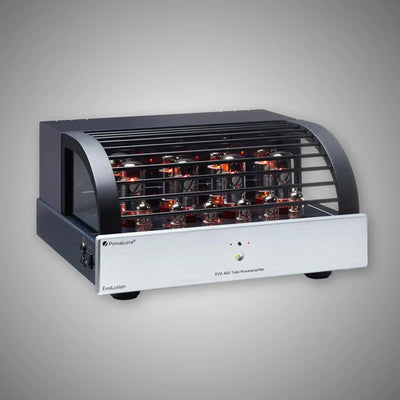

Experience superior sound quality with the PrimaLuna EVO 400 Power Amplifier. With sensational control, warmth, and detail, this amplifier delivers an involving soundstage that exhibits a beautiful, airy treble.

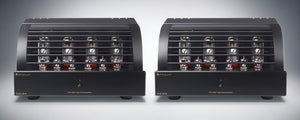

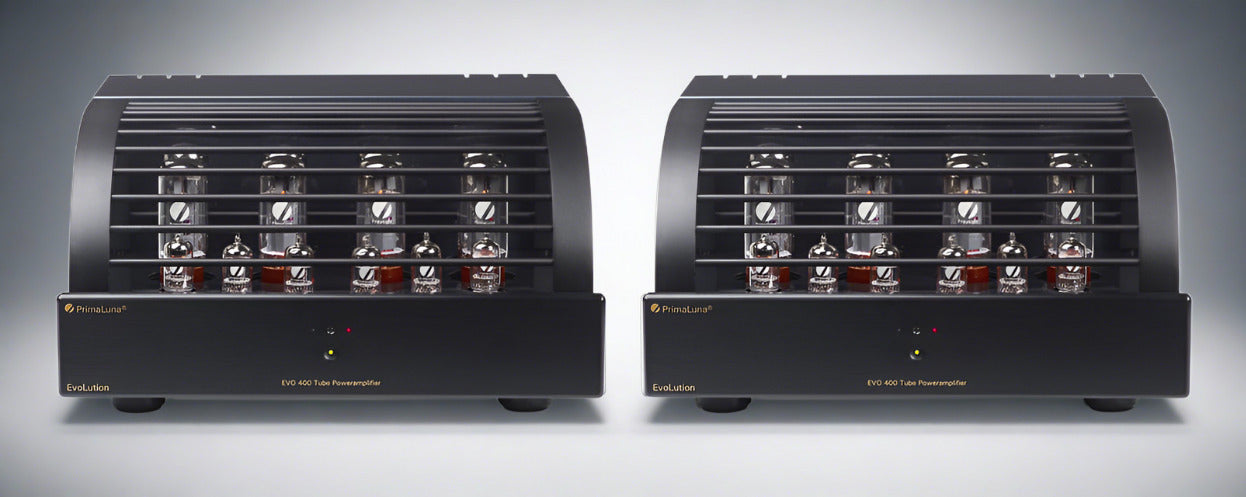

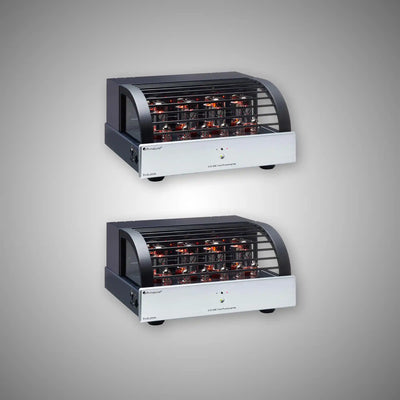

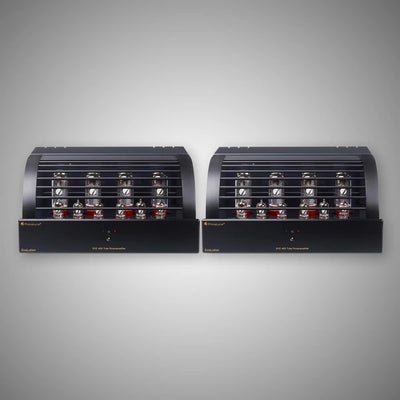

The EVO 400 can be configured for both stereo (2x 70W) and mono block (2x 140W) configurations.
Take your audio to the next level with the EVO 400.
|
|
Power: Stereo
Ultra-linear |
70 watts x 2 (EL34)
(8Ω, 1% THD) |
Power: Stereo
Triode |
38 watts x 2 (EL34)
(8Ω, 1% THD) |
Power: Mono
Ultra-linear |
140 watts (EL34)
(8Ω, 1% THD) |
Power: Mono
Triode |
82 watts (EL34)
(8Ω, 1% THD) |

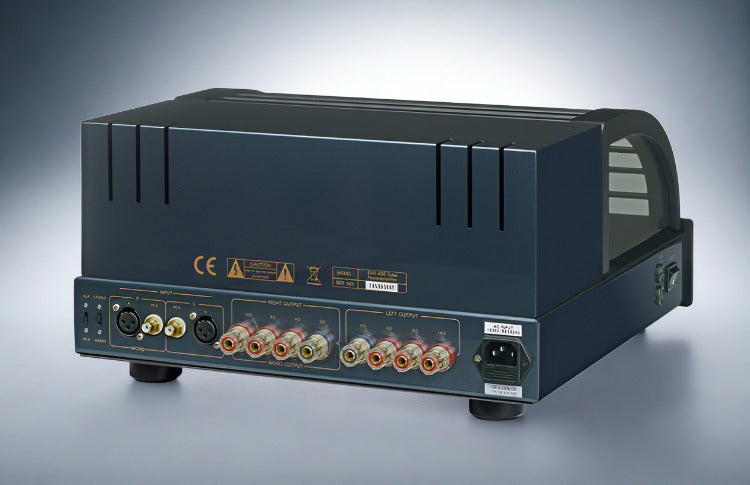

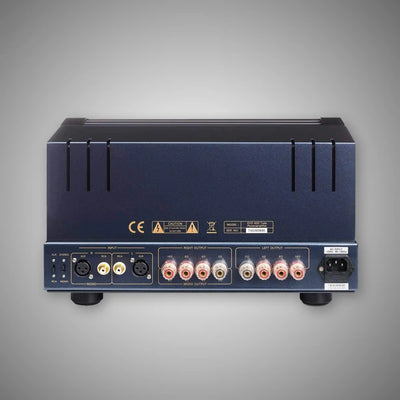

| Inputs |
1x Stereo RCA
1x Stereo XLR |
|
| Outputs |
4, 8, & 16 Ω (stereo)
2, 4, & 8 Ω (mono) |
| Freq. Response |
9Hz-60kHz +/- 1dB
8Hz-70kHz +/- 3dB |
| THD |
< 0.1% @ 1W
< 2% @ Rated Power |
| S/N Ratio |
95 dB, 105 dBA |
| Input Sensitivity |
1100 mV |
| Input Impedance |
100kΩ |
| Power Consumption |
470 watts (EL34)
480 watts (KT88)
540 watts (KT120)
550 watts (KT150) |

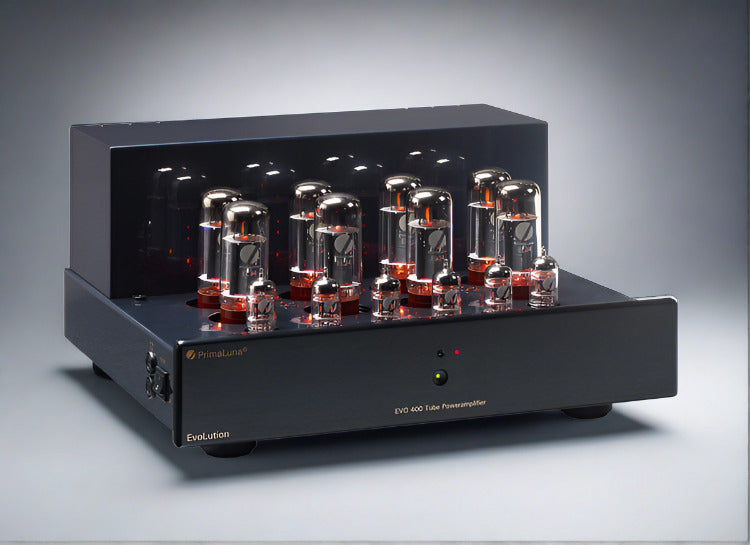

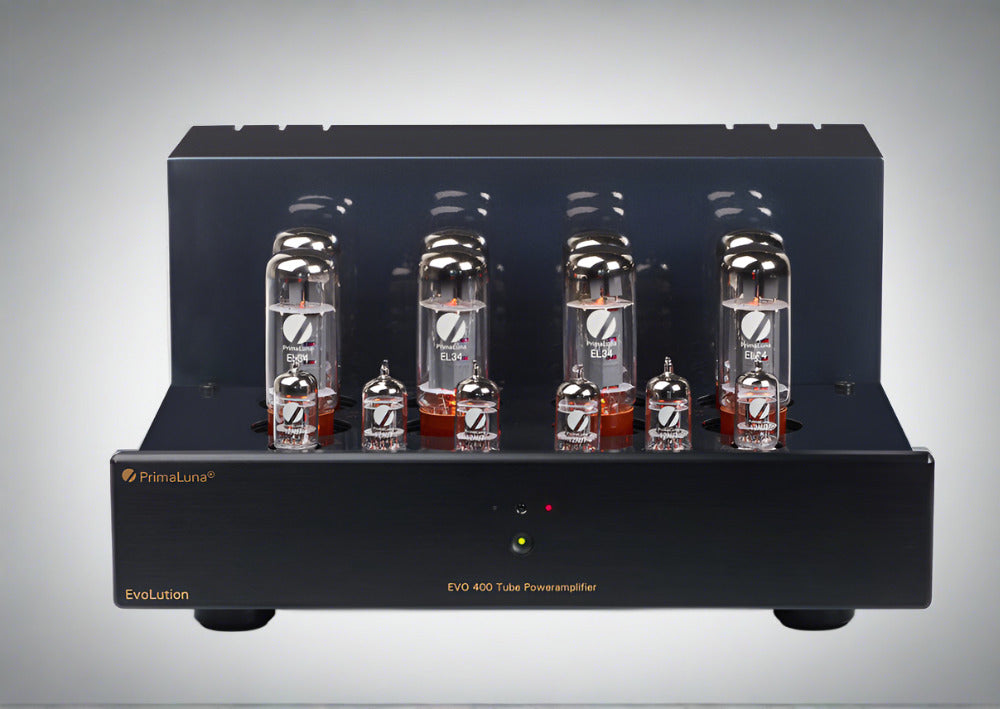

| Standard Tube Complement |
6 - 12AU7,
8 - EL34 |
| Dimensions (WxHxD) |
15.2" x 8" x 15.9" |
| Weight |
68.2 lbs |
